9080LBA364101 - Square D - Fuse Block

Square D SKU: 9080LBA364101
9080LBA364101 - Square D - Fuse Block
9080LBA364101 - Square D - Fuse Block
9080LBA364101 - Square D - Fuse Block
9080LBA364101 - Square D - Fuse Block
9080LBA364101 - Square D - Fuse Block
9080LBA364101 - Square D - Fuse Block

Images are for reference only

9080LBA364101 - Square D - Fuse Block

Square D SKU: 9080LBA364101
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 229 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - 9080LBA364101 - Square D - Fuse Block

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - 9080LBA364101 -Square D Fuse Block

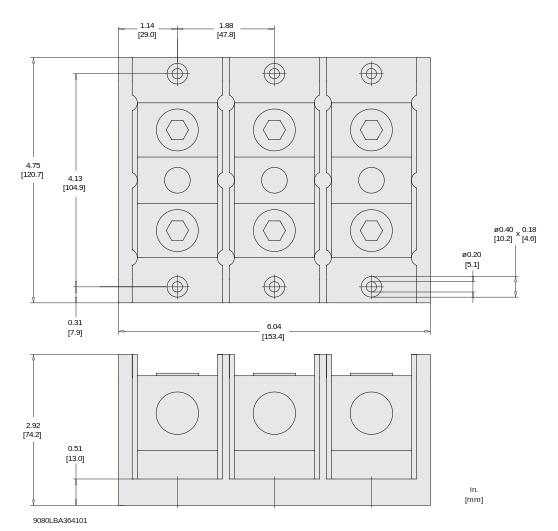

Dimensions

  • Dimensions (HxWxD):

    4.75 x 2.28 x 2.91

  • Weight:

    2.53 lbs

Standards

CSA Approved logo

Product Description - 9080LBA364101 -Square D Fuse Block

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 420 amperes with copper wire and 340 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
