8501RS42P14V20 - Square D - Fuse Part And Accessory

Square D SKU: 8501RS42P14V20
8501RS42P14V20 - Square D - Fuse Part And Accessory
8501RS42P14V20 - Square D - Fuse Part And Accessory
8501RS42P14V20 - Square D - Fuse Part And Accessory
8501RS42P14V20 - Square D - Fuse Part And Accessory
8501RS42P14V20 - Square D - Fuse Part And Accessory

Images are for reference only

8501RS42P14V20 - Square D - Fuse Part And Accessory

Square D SKU: 8501RS42P14V20
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 70 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - 8501RS42P14V20 - Square D - Fuse Part And Accessory

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - 8501RS42P14V20 - Square D Fuse Part And Accessory

Dimensions

  • Dimensions (HxWxD):

    1.07 x 0.83 x 1.65

  • Weight:

    1.44 lb

Standards

CSA Approved logo

Product Description - 8501RS42P14V20 - Square D Fuse Part And Accessory

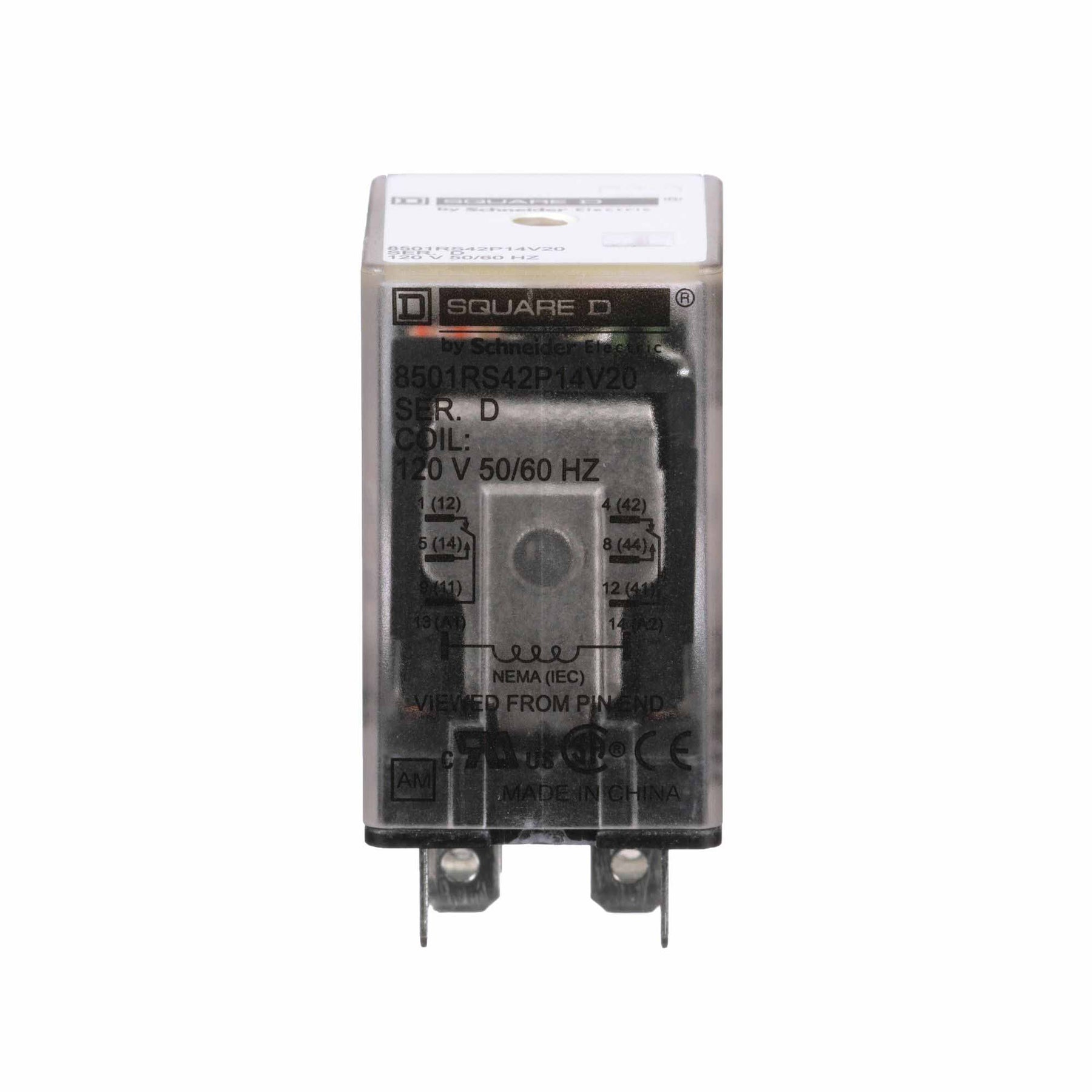

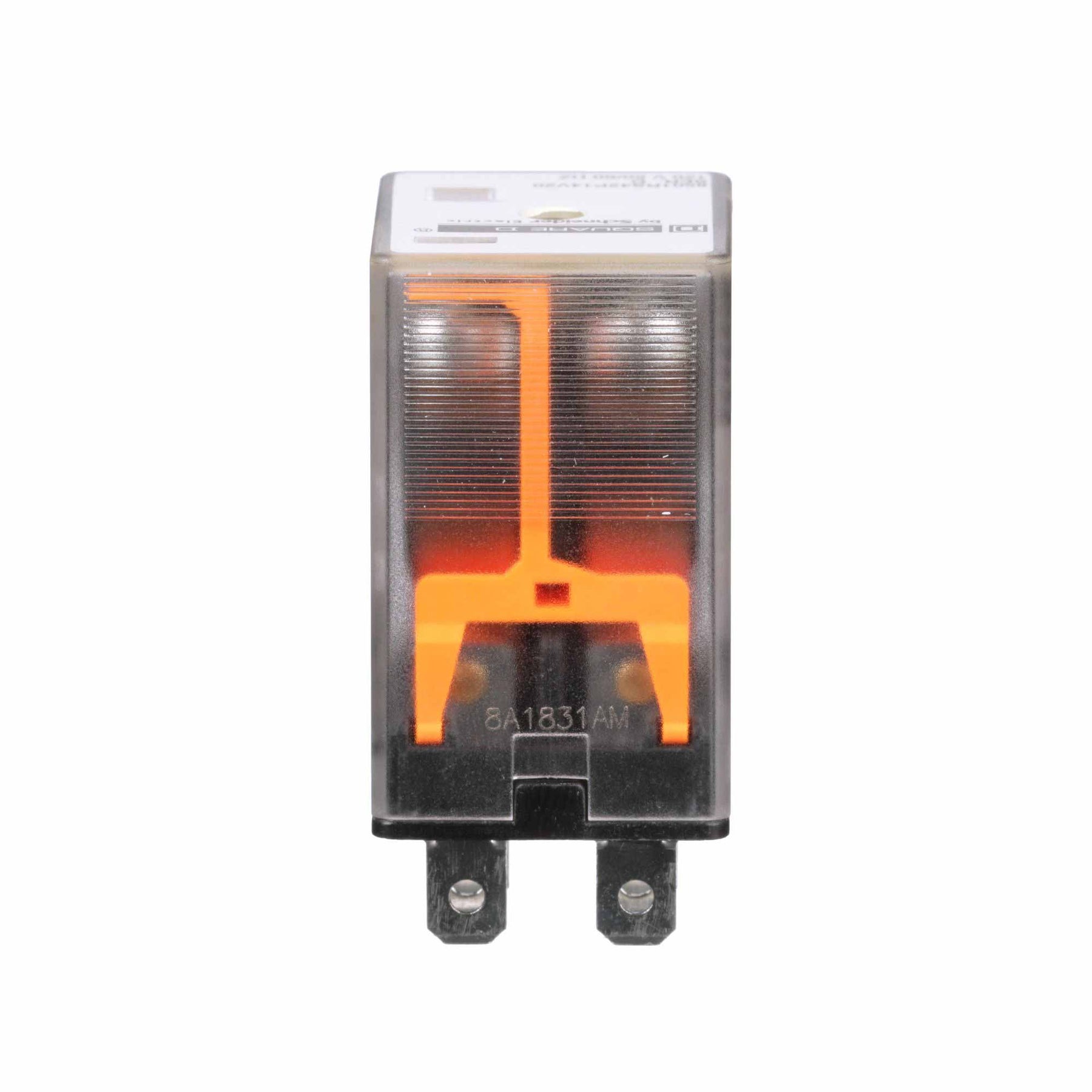

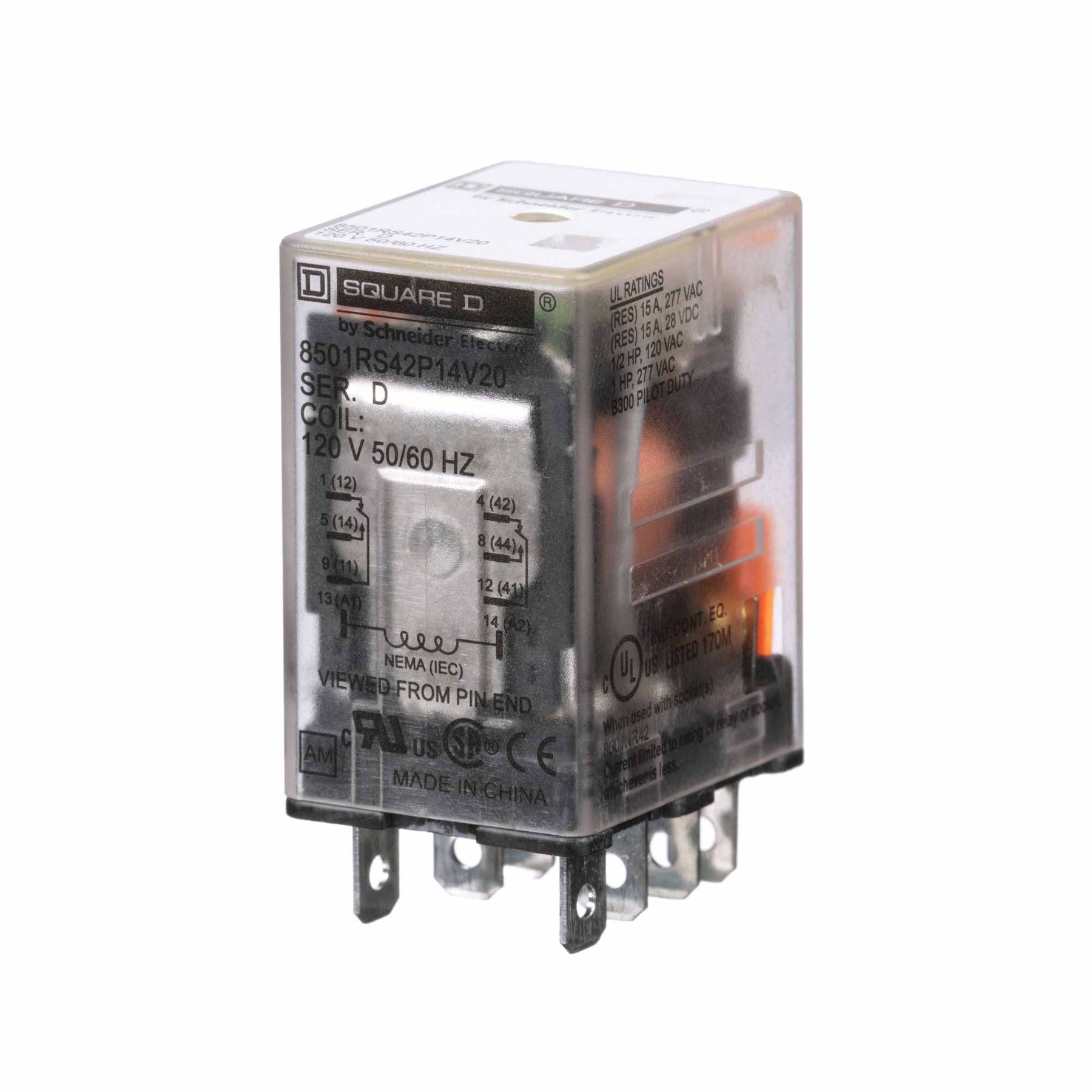

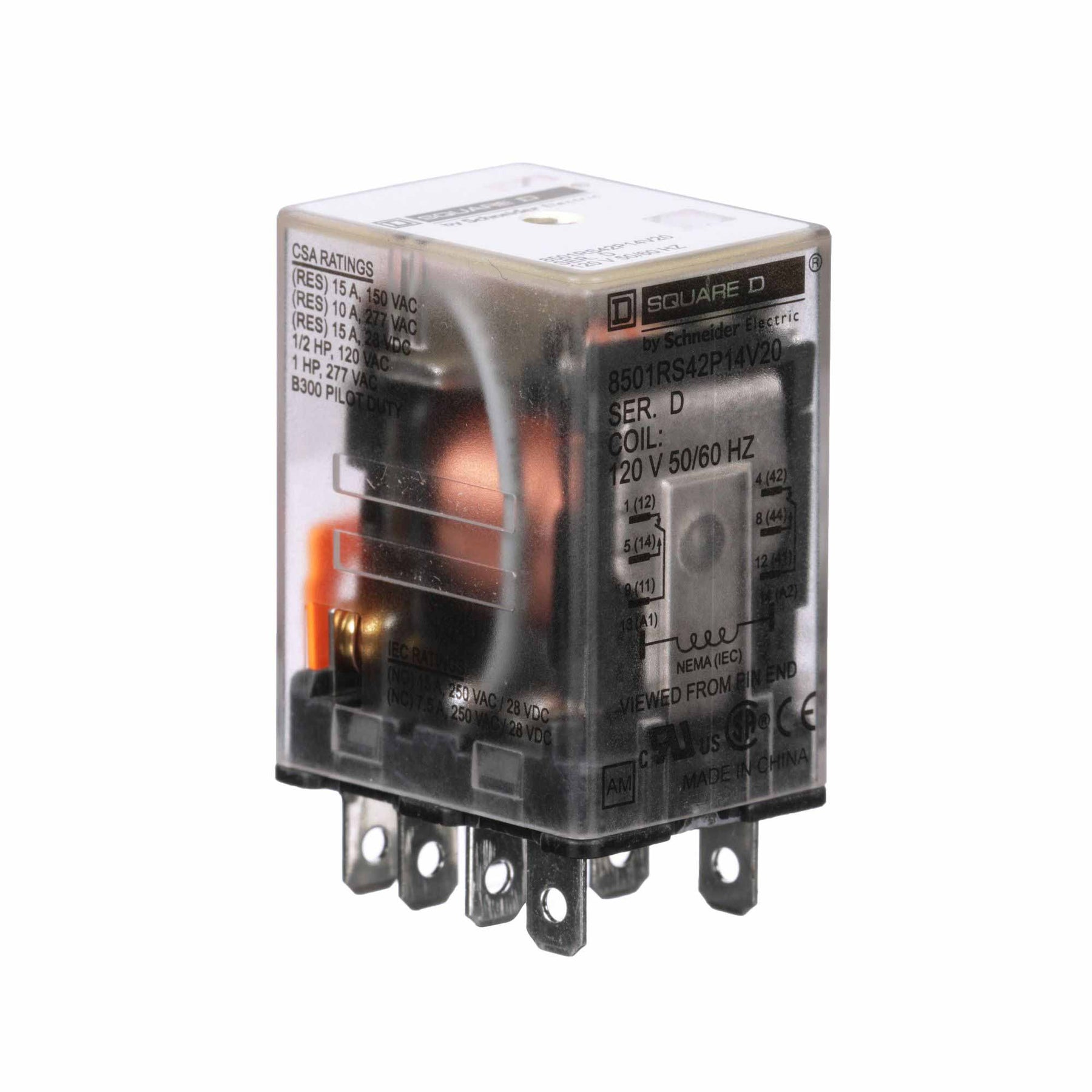

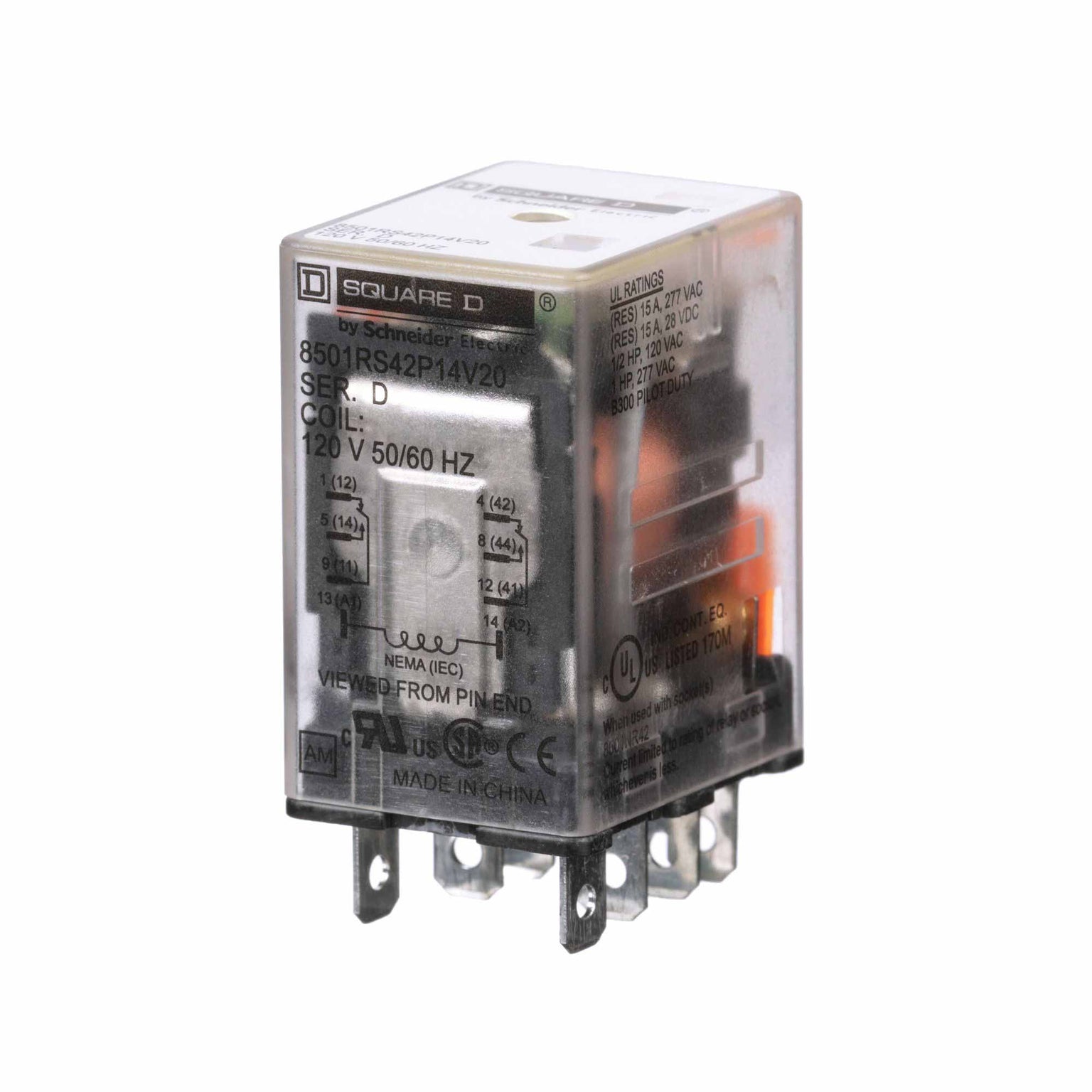

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
