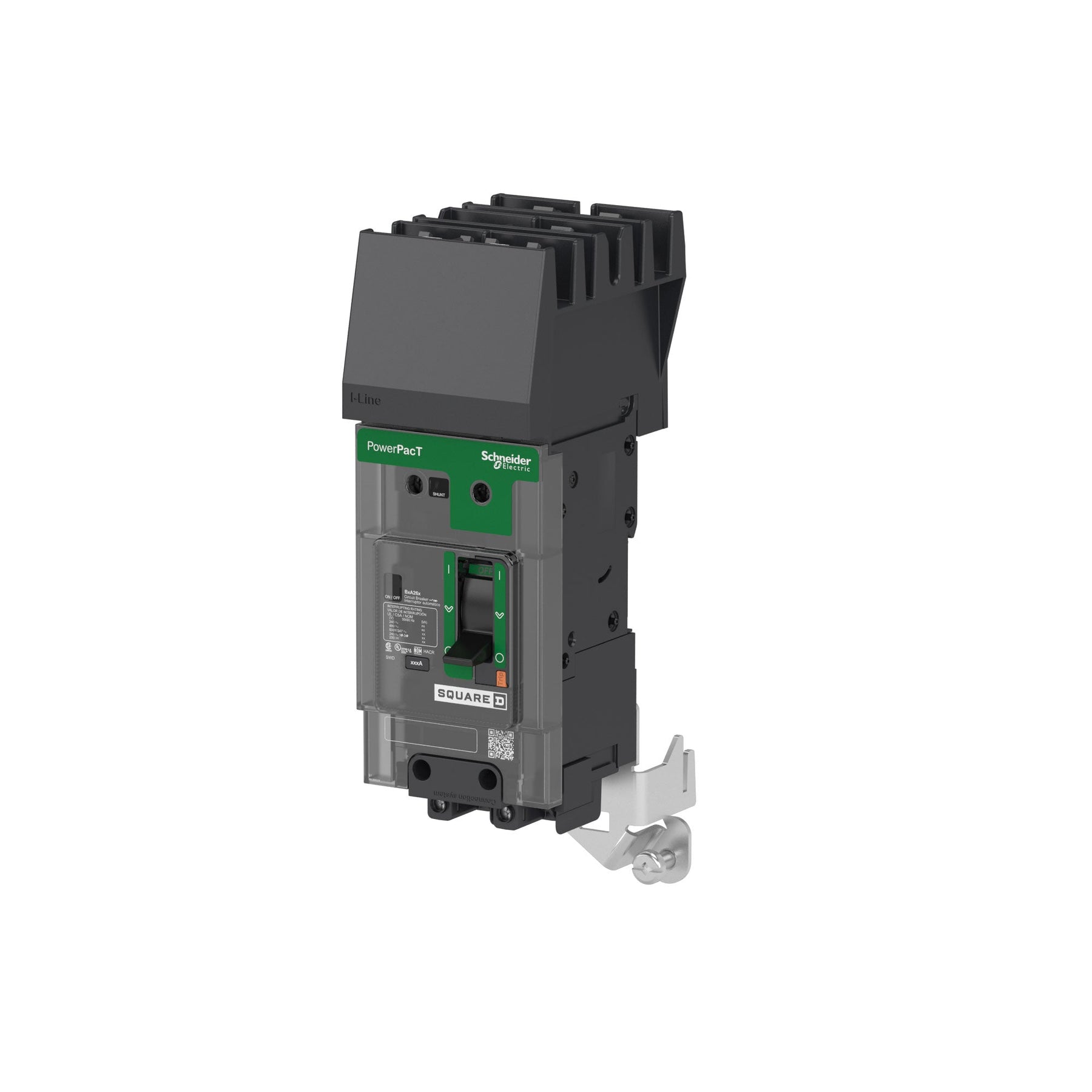

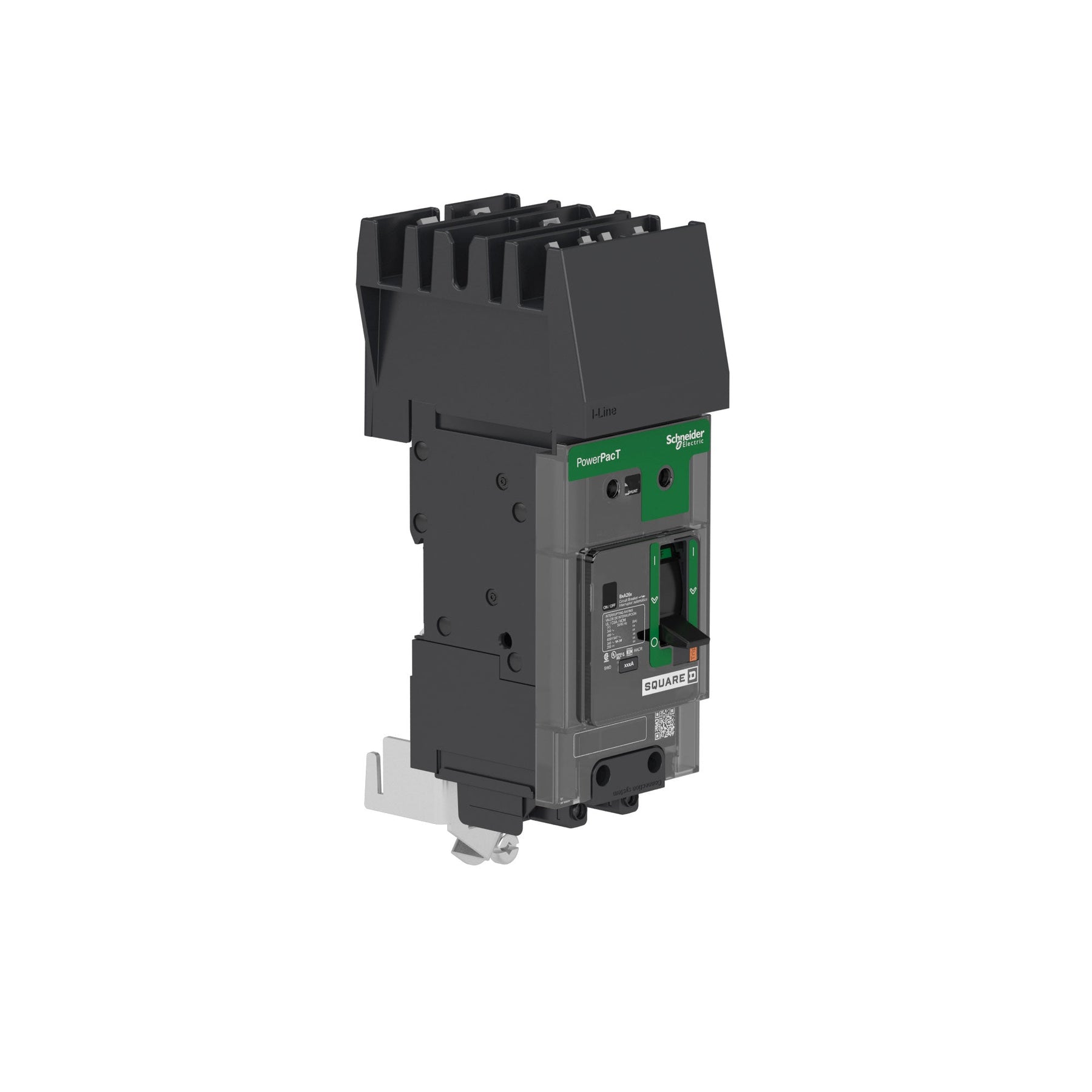

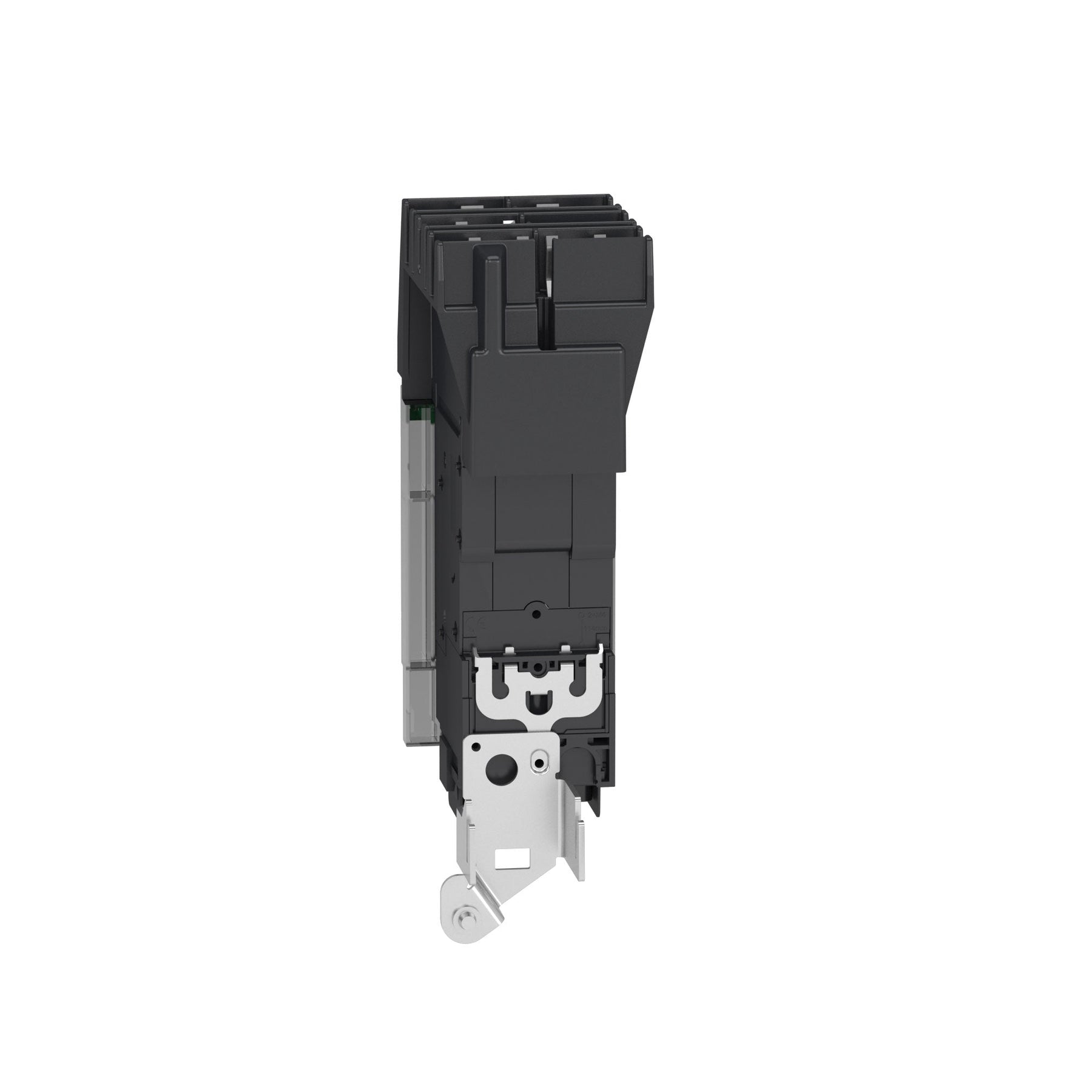

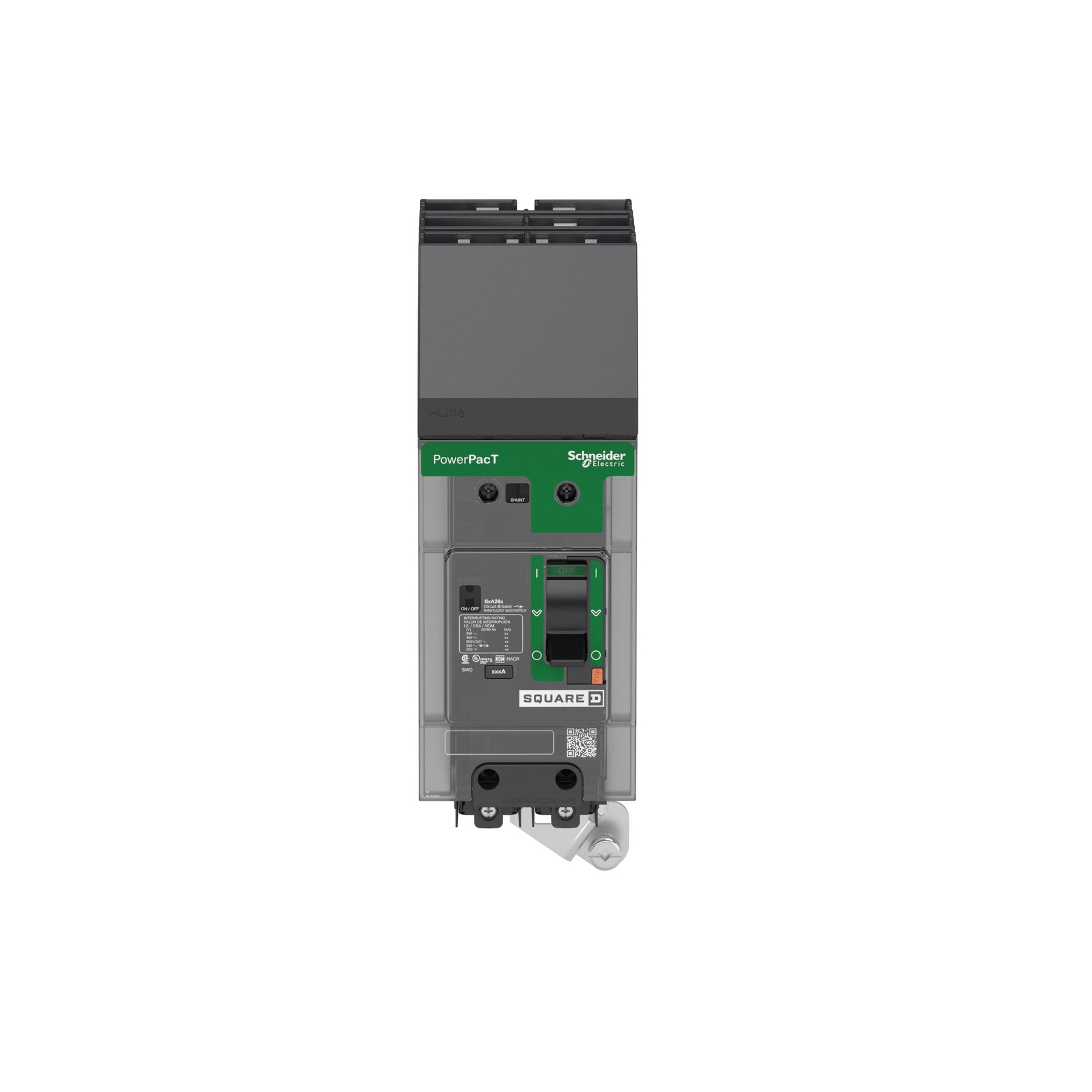

BDA260702 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 70 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: BDA260702
BDA260702 - Square D - Molded Case Circuit Breaker
BDA260702 - Square D - Molded Case Circuit Breaker
BDA260702 - Square D - Molded Case Circuit Breaker
BDA260702 - Square D - Molded Case Circuit Breaker
BDA260702 - Square D - Molded Case Circuit Breaker

Images are for reference only

BDA260702 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 70 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: BDA260702
Regular price $1,336.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - BDA260702 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Powerpact B-Frame Brings Thermal-Mechanical Circuit Protection In A Compact Size And Offers A Wide Range Of Accessories, Auxiliaries, And Connection Options. This Powerpact B-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection With A Breaking Capacity Of 14Ka At 600Y/347Vac. All Powerpact B-Frame Circuit Breakers Are Equipped With Dual-Break Rotating Contacts That Reduce The Amount Of Peak Current During A Short Circuit Fault. All Powerpact Circuit Breakers Have An Integral Push-To-Trip Button In The Cover To Manually Trip The Circuit Breaker. Powerpact B-Frame Circuit Breakers Come In 1 To 4-Pole Unit Mount Construction And In 1 To 3-Pole I-Line Construction. I-Line Circuit Breakers Come With A Shrouded I-Line Plug On Jaw. This Unit Has I-Line Terminations On The Line Side And Mechanical Lugs On The Load Side. This Powerpact B, 70A, 2 Pole, Circuit Breaker Has A Breaking Capacity Of 14Ka At 600Y/347Vac. This Circuit Breaker Has A Continuous Current Rating Of 80% With An Ac Phase Connection. Powerpact B Circuit Breakers Comply To Ul, Csa, Nom, And Iec Standards And Are Ce Marked.
