Name: EDB14045 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: EDB14045
Price: 184.99 CAD
Availability: OutOfStock

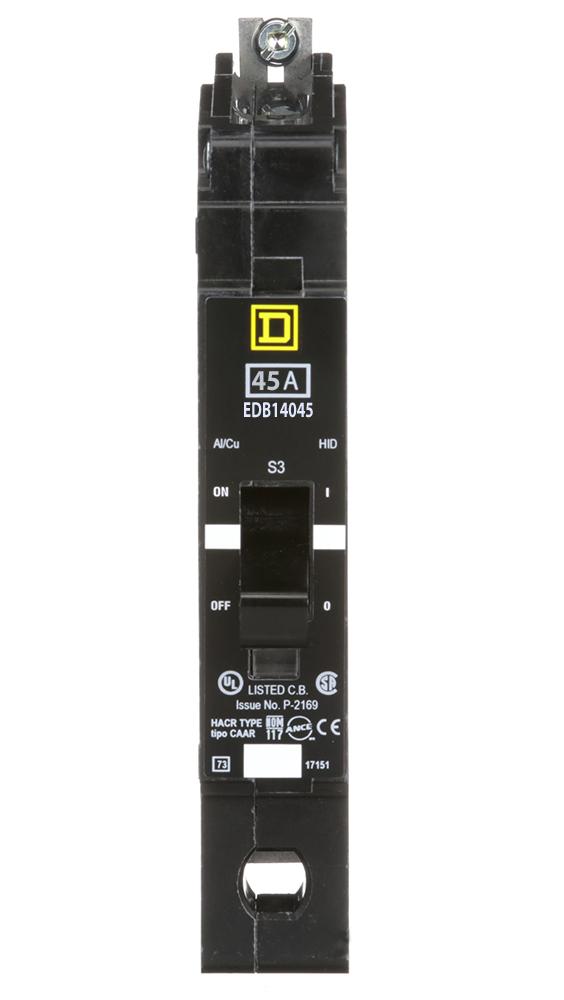

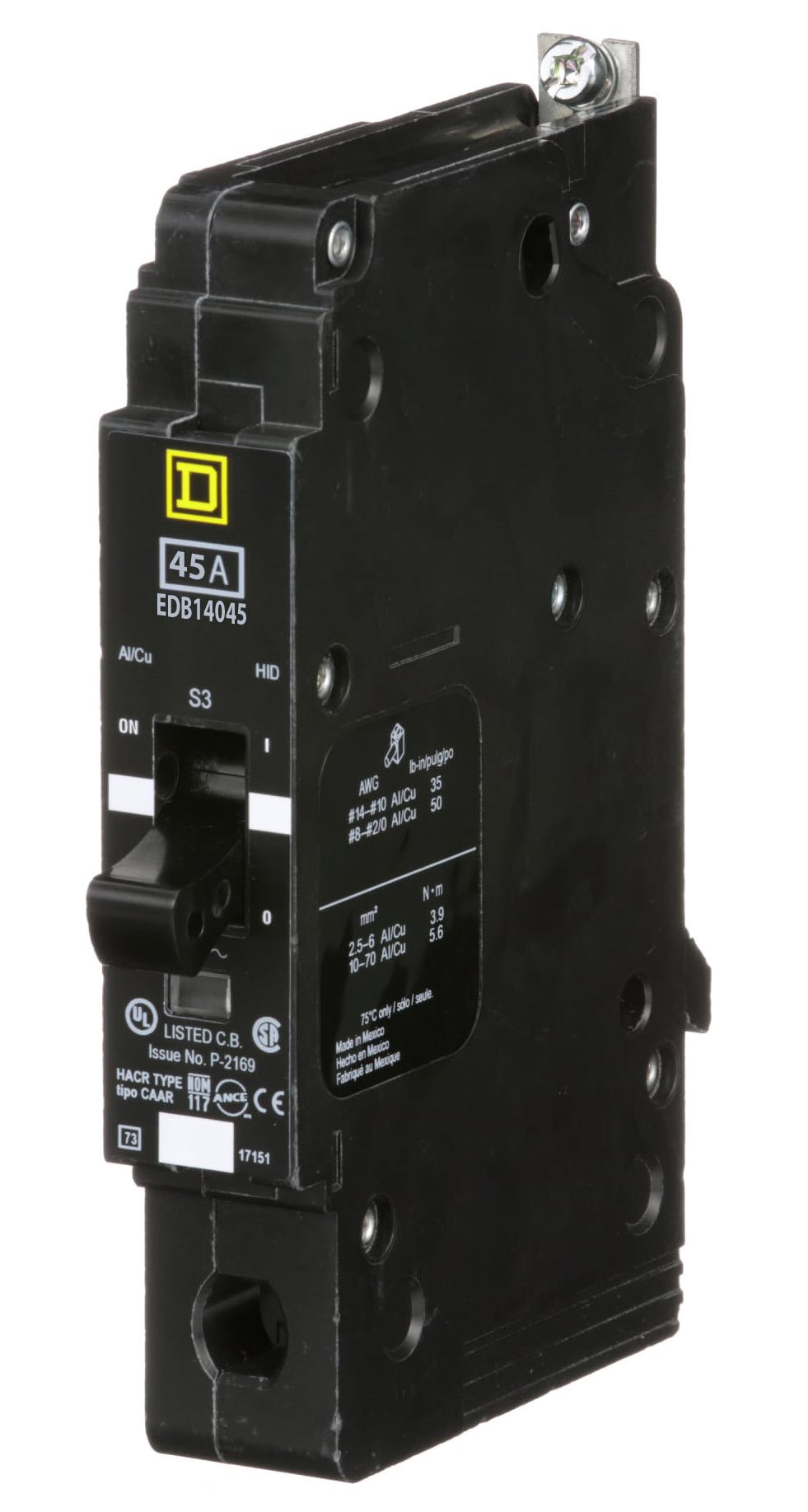

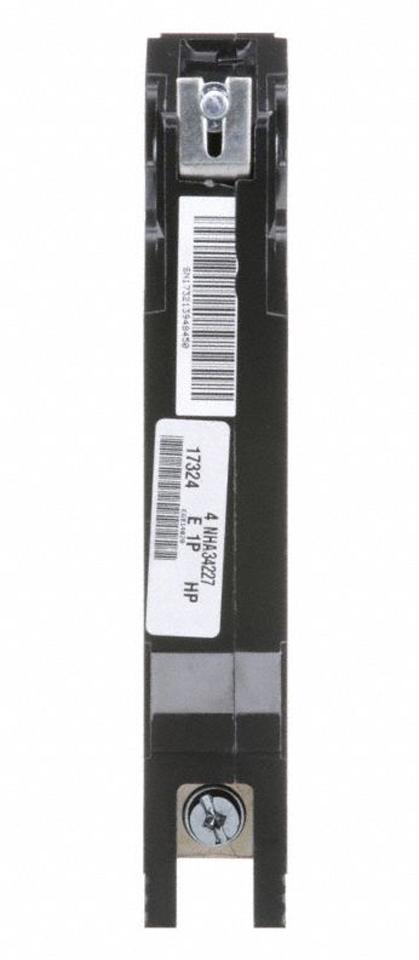

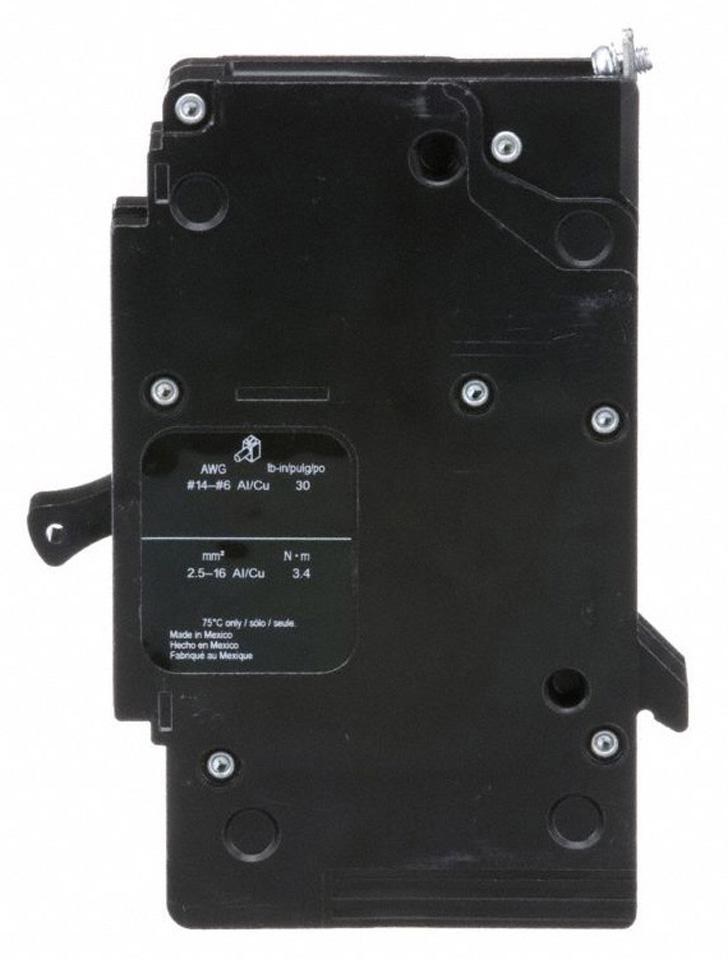

EDB14045 - Square D 45 Amp 1 Pole 277 Volt Bolt-On Molded Case Circuit Breaker

Images are for reference only

Condition

New

Reconditioned (pre-owned with warranty)

Quantity

Earn 107 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":45032114356333,"title":"New","option1":"New","option2":null,"option3":null,"sku":"EDB14045","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"EDB14045 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":18499,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575210020973,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"EDB14045_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"EDB14045 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":10699,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - EDB14045 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - EDB14045 - Square D Bolt-On Circuit Breaker

Part Number:

EDB14045
Manufacturer:

Schneider Electric / Square D
Family:

EDB Series
Pole:

1
Amp

45
Volt:

277
Phase:

1

Category:

Molded Case / 1-Pole
Connection:

Bolt-On
Type:

EDB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@277V | 25kA@240V | 25kA@120V

Dimensions

Dimensions (HxWxD):

5.66" x 0.98" x 4.05"

Weight:

4lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Module Type:

E-Frame
Trip Unit Rating:

875 Amp
Line Rated Current:

45 Amp
Maximum Operating Voltage:

277 V AC
Mounting Mode:

Bolt-On

Product Destination:

Square D NF Panelboard
Electrical Connection:

Aluminum Lugs
Holding Current:

270 Amp
Local Signaling:

Trip Indicator
Circuit Breaker Application:

HID-Rated / HACR-Rated
AWG Gauge:

AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EDB14045 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EDB14045 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB14045 is a 1-pole bolt-on circuit breaker, rated at 45A at a system voltage of 277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB14045 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).

I would absolutely use this business again.

The prices are fantastic - beating the box stores quite substantially. The service is truly outstanding and responsive. With free shipping on orders over $49 - I can't think of a single reason not to shop here. I wish them every possible success.

A good online shopping experience

Order shipped within 24 hrs of placement and was exactly what I had ordered. A good online shopping experience, will definitely use them again.

Highly recommend supporting this company.

Canada Breakers and (David) provided great customer service. I initially called requesting a return because I found another retailer with better prices. David acknowledged my price difference promptly and price matched the other retailer. Highly recommend supporting this company.

Great service and reliability!

Needed a special breaker that Canada Breakers had in stock while no other electrical distributors did. I spoke to someone at Canada Breakers who was very knowledgeable. They answered my questions quickly and accurately. I ordered the breaker online and selected 3 day shipping. It arrived the next day. Great service and reliability!

A functional breaker

I do not think you can write a sexy review of a circuit breaker. This replaced a breaker that had been in service for 20 years. the breaker. This is breaker matches the brand of my breaker box everything lines up.

Perfect match!

Works great, as described. Matches all of the other breakers in the panel. Easy installation and simply fits perfectly. (In the picture I am pointing to it with a screw driver)

It's a breaker, you either need it or you don't.

It works as it should. Easy install, it was new when I bought it, made of a not so shiney plastic.

Great price

shipped right away and worked as expected
