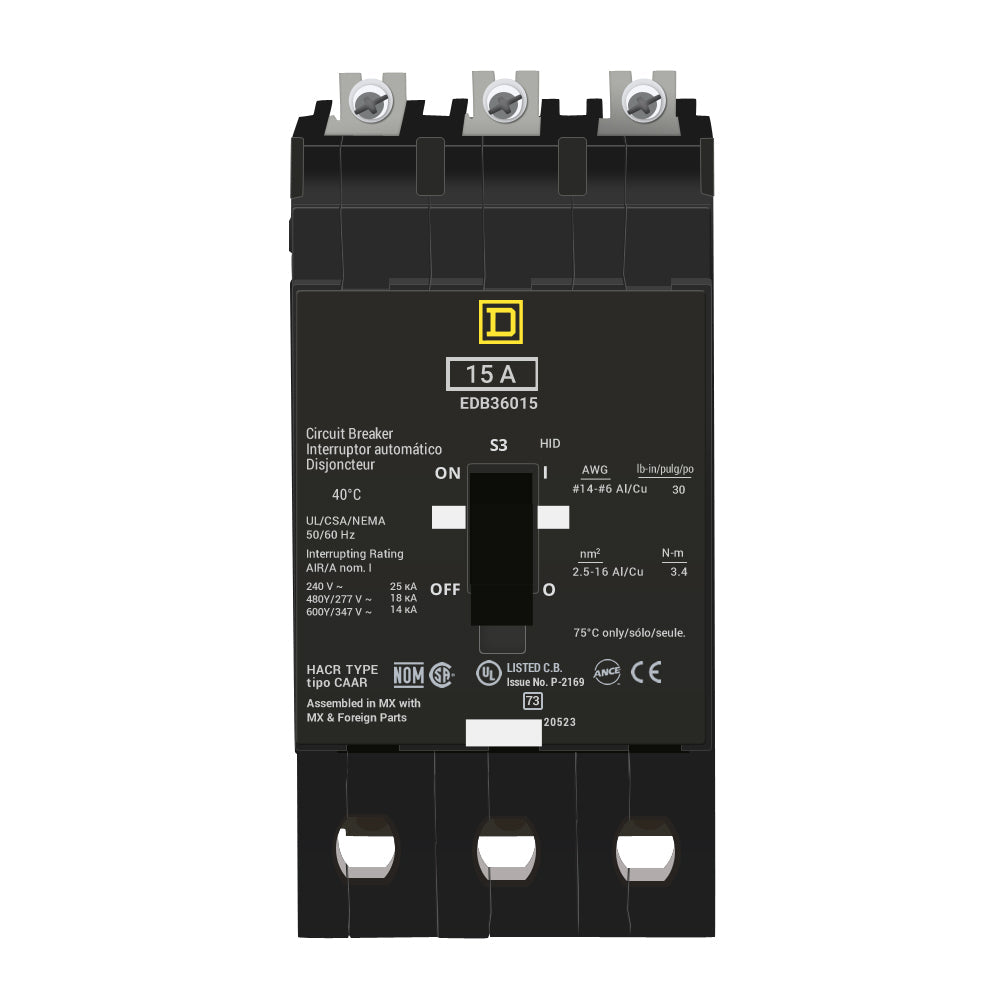

EDB36015 - Square D - Molded Case Circuit Breaker

Bolt-On - 15 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: EDB36015
EDB36015 - Square D 15 Amp 3 Pole 600 Volt Bolt-On Molded Case Circuit Breaker
EDB36015 - Square D - Molded Case Circuit Breaker
EDB36015 - Square D - Molded Case Circuit Breaker
EDB36015 - Square D - Molded Case Circuit Breaker

Images are for reference only

EDB36015 - Square D - Molded Case Circuit Breaker

Bolt-On - 15 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: EDB36015
Sale price $799.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - EDB36015 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - EDB36015 - Square D Bolt-On Circuit Breaker

  • Category:

  • Connection:

    Bolt-On
  • Type:

    EDB
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    14 kA 600Y/347 V AC

Dimensions

  • Dimensions (HxWxD):

    5.66" x 2.94" x 4.05"
  • Weight:

    4lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload
  • Module Type:

    E-Frame
  • Trip Unit Rating:

    875 Amp
  • Line Rated Current:

    15 Amp
  • Maximum Operating Voltage:

    600Y/347 V AC
  • Mounting Mode:

    Bolt-On
  • Product Destination:

    Square D NF Panelboard
  • Electrical Connection:

    Aluminum Lugs
  • Holding Current:

    270 Amp
  • Local Signaling:

    Trip Indicator
  • Circuit Breaker Application:

    HID-Rated / HACR-Rated
  • AWG Gauge:

    AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EDB36015 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EDB36015 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB36015 is a 3-pole bolt-on circuit breaker, rated at 15A at a system voltage of 600Y/347 V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB36015 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
