HDA261252 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 125 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: HDA261252

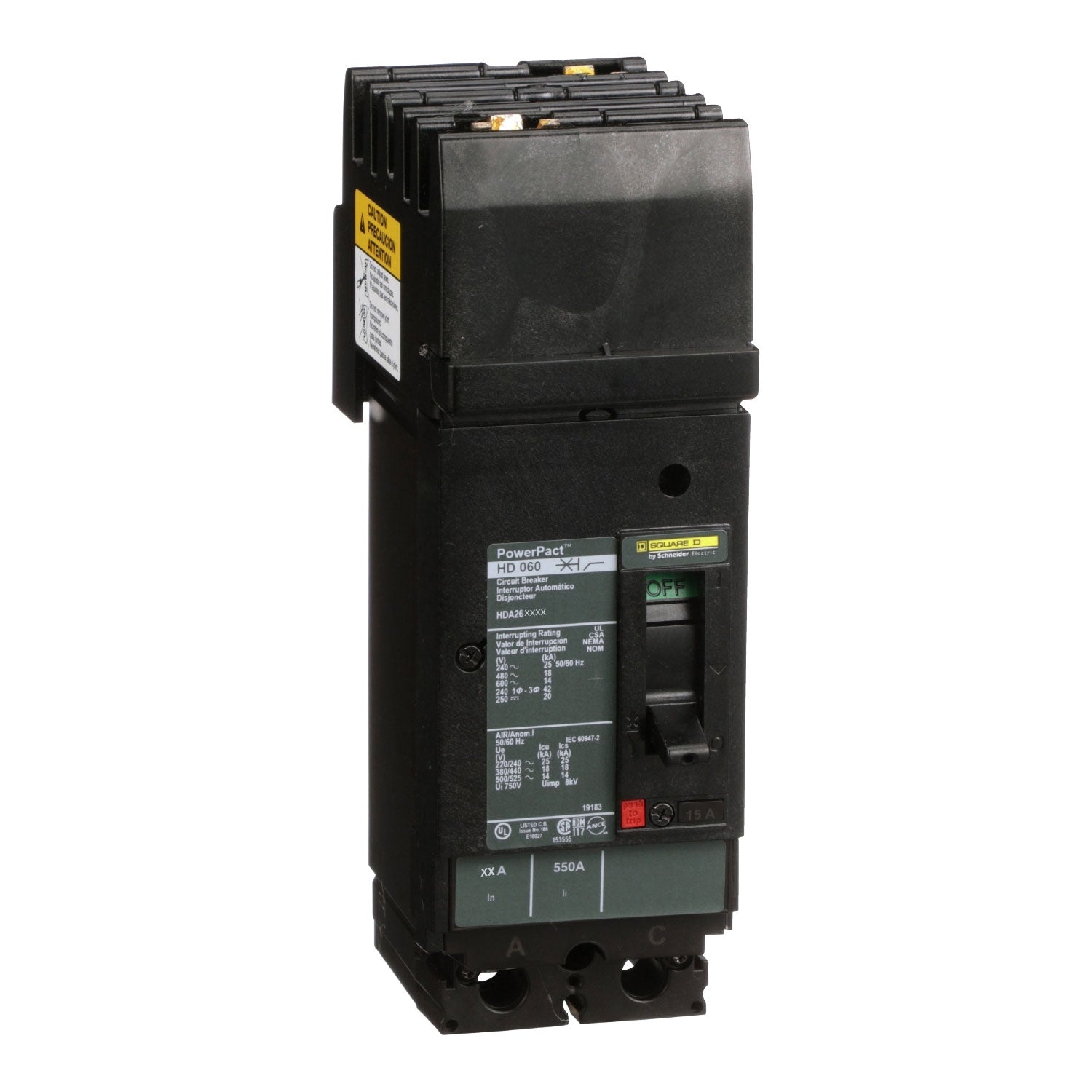

HDA261252 - Square D 125 Amp 2 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

HDA261252 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 125 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: HDA261252
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 1545 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HDA261252 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - HDA261252 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73" x 2.94" x 4.8"

  • Weight:

    1.36 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    125 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    900 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HDA261252 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 1PH, 2P, A & C phase connection, 125A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
