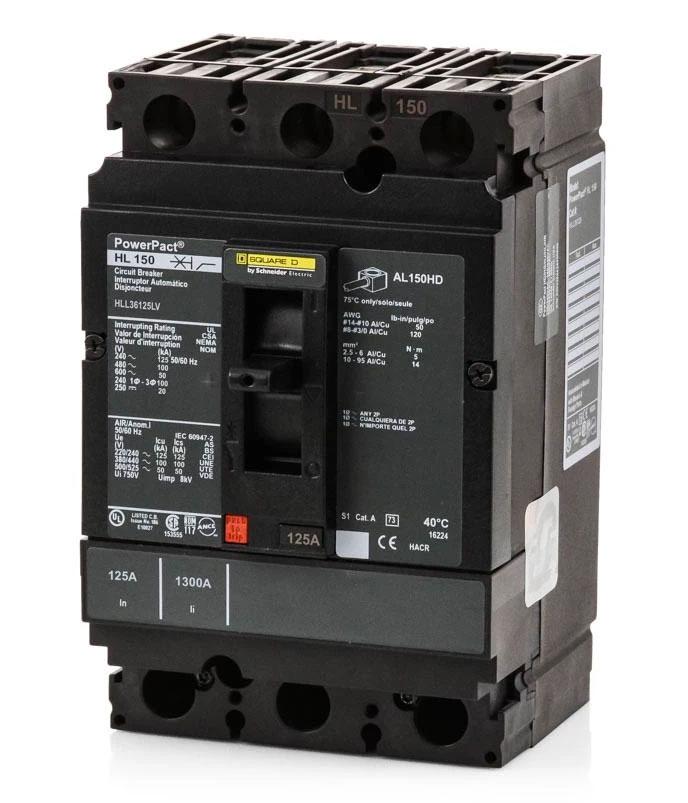

HLL36125LV - Square D 125 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 2100 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513606385773,"title":"New","option1":"New","option2":null,"option3":null,"sku":"HLL36125LV","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"HLL36125LV - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":299899,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785903699214","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575205040237,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"HLL36125LV_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HLL36125LV - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":209999,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785903699214","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HLL36125LV - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - HLL36125LV - Square D Molded Case Circuit Breakers

Part Number:

HLL36125LV
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

125
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HJL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

100kA@480V

Dimensions

Dimensions (HxWxD):

6.42" x 4.09" x 3.39"

Weight:

4.85 lbs

Standards

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

125 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

L
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

900 Amp
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HLL36125LV - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type HLL, 3P, 3PH, 125A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers

HLL36125LV - Square D - Molded Case Circuit Breaker

Feed Thru - 125 Amp - 3 Pole - 600 Volt
