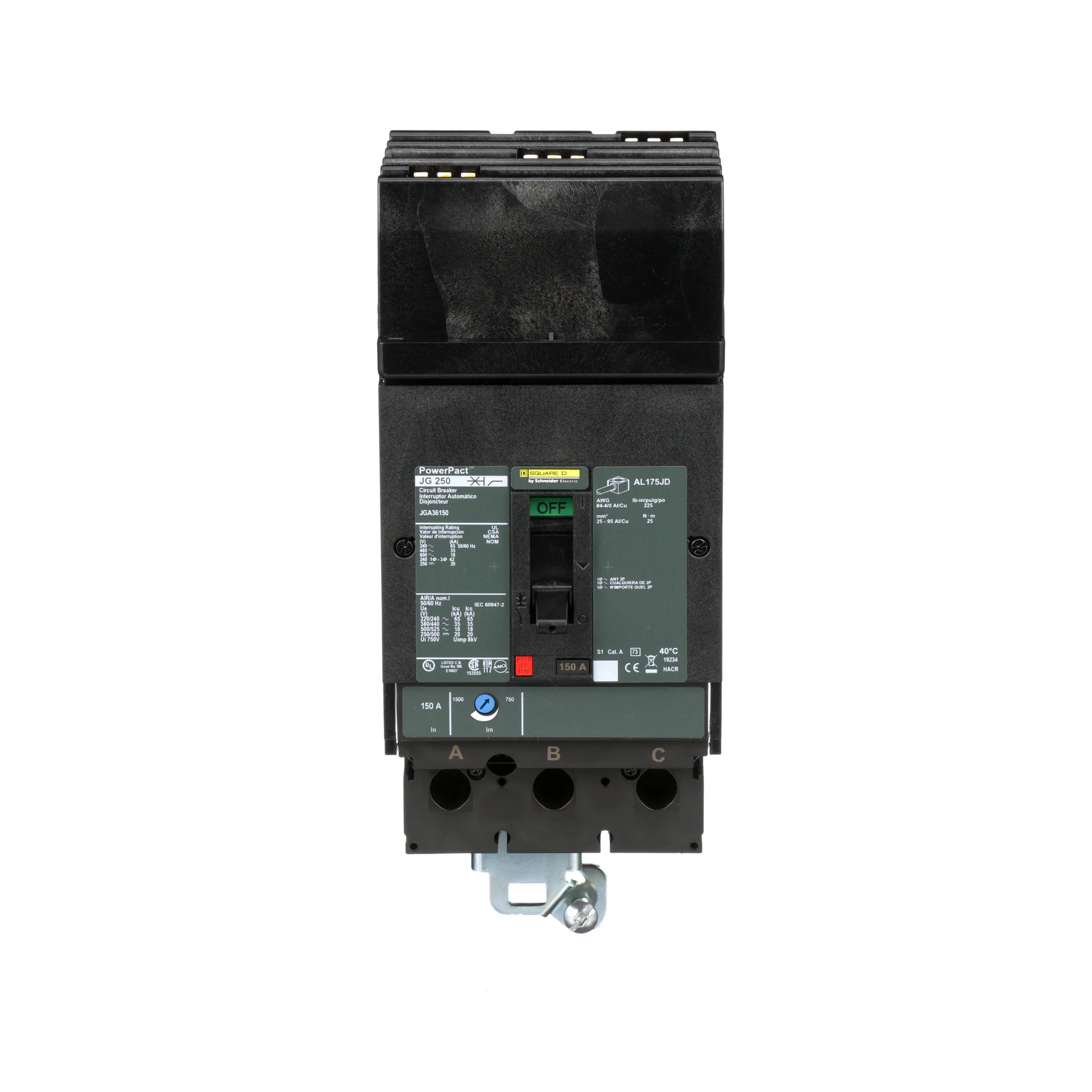

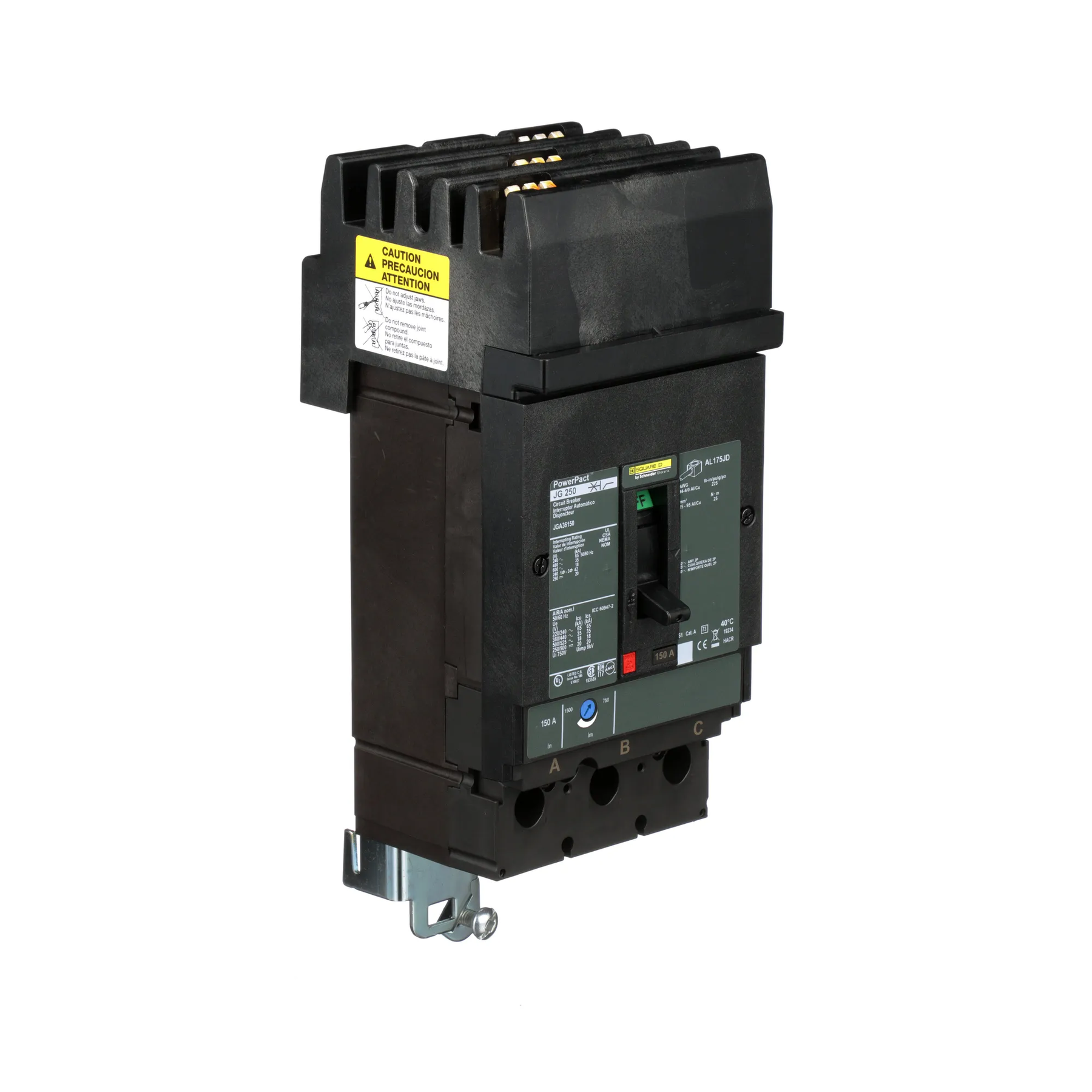

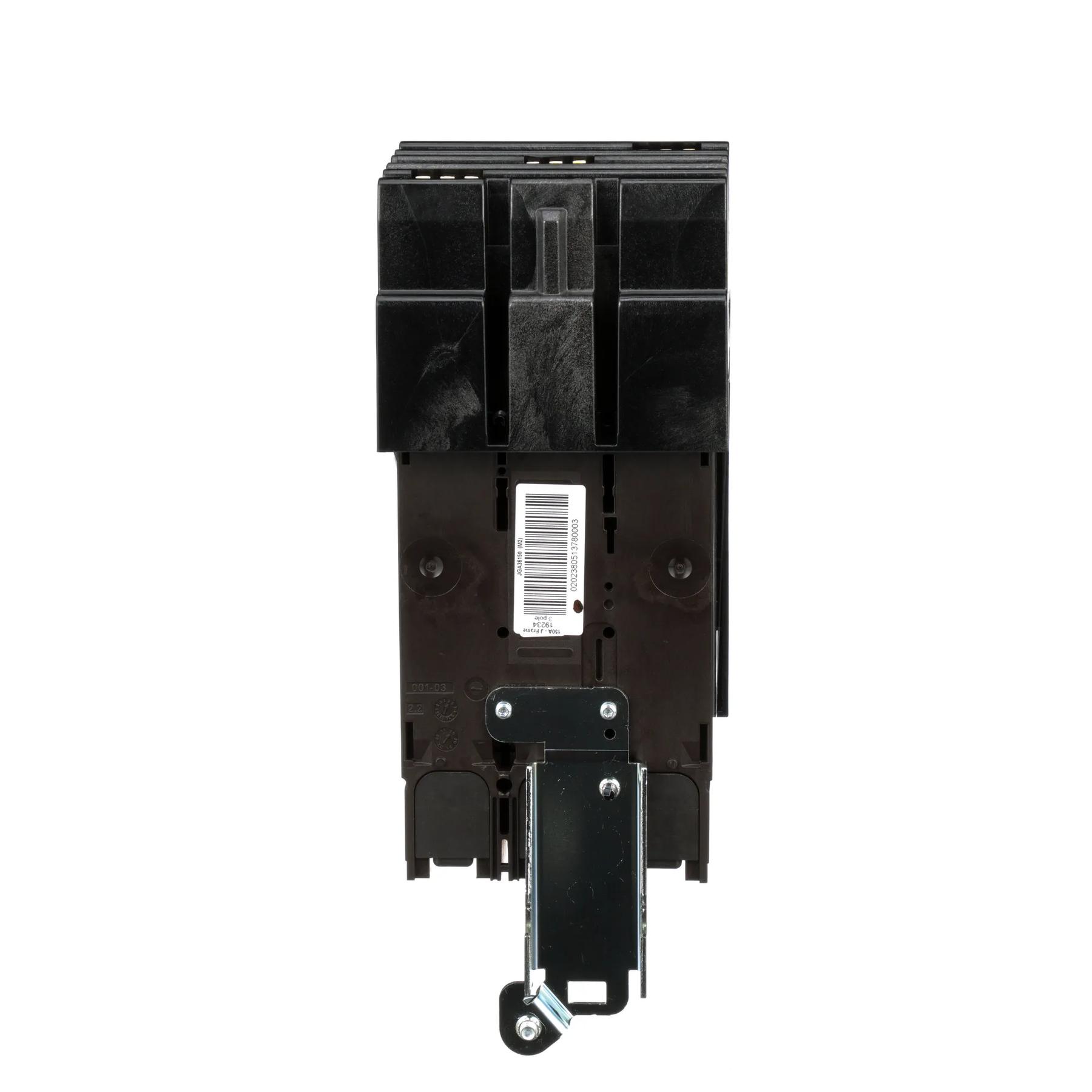

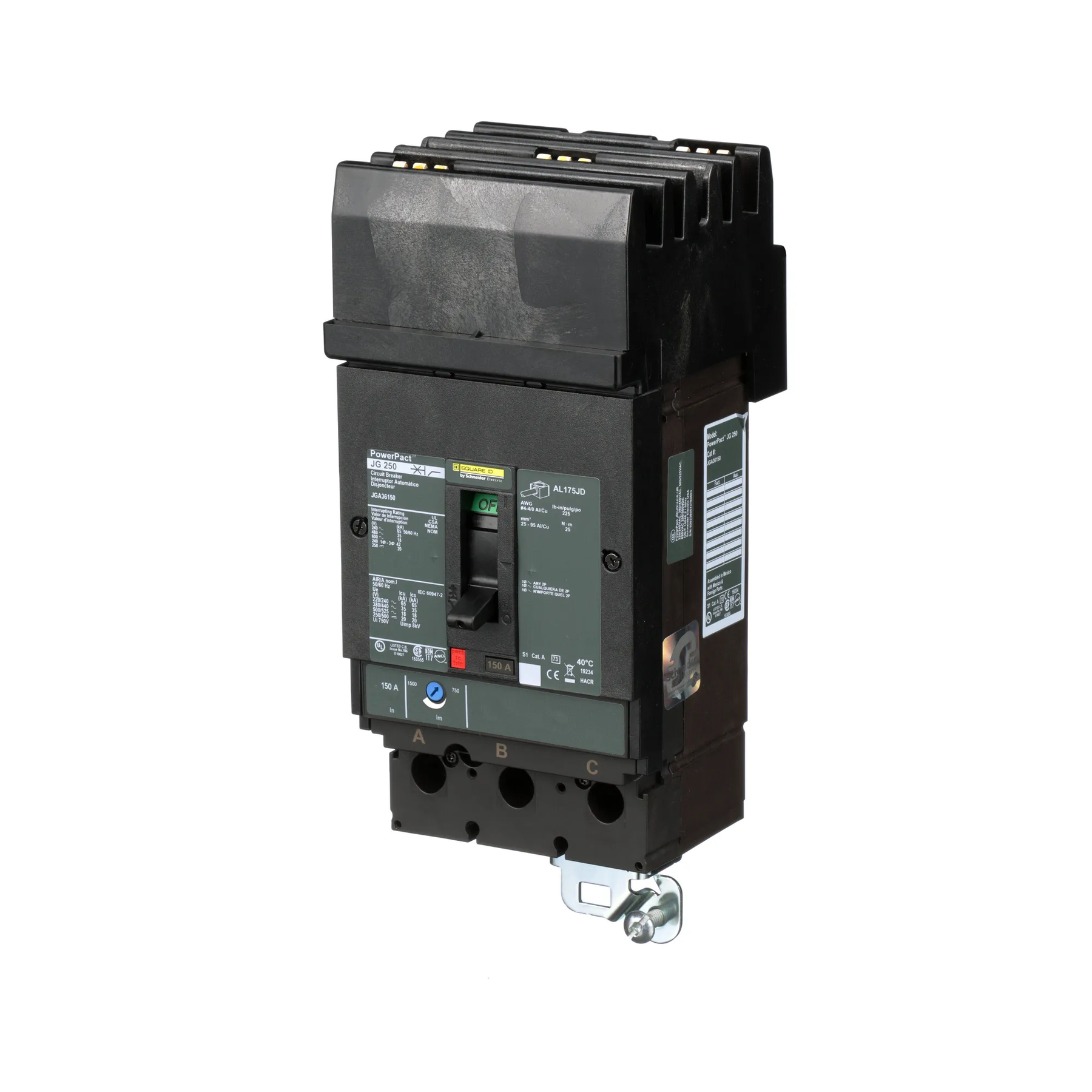

JGA36150 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: jga36150
JGA36150 - Square D - Molded Case Circuit Breaker
JGA36150 - Square D - Molded Case Circuit Breaker
JGA36150 - Square D - Molded Case Circuit Breaker
JGA36150 - Square D - Molded Case Circuit Breaker
JGA36150 - Square D - Molded Case Circuit Breaker

Images are for reference only

JGA36150 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: jga36150
Sale price $3,131.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JGA36150 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - JGA36150 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    JGA
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    35kA@480V

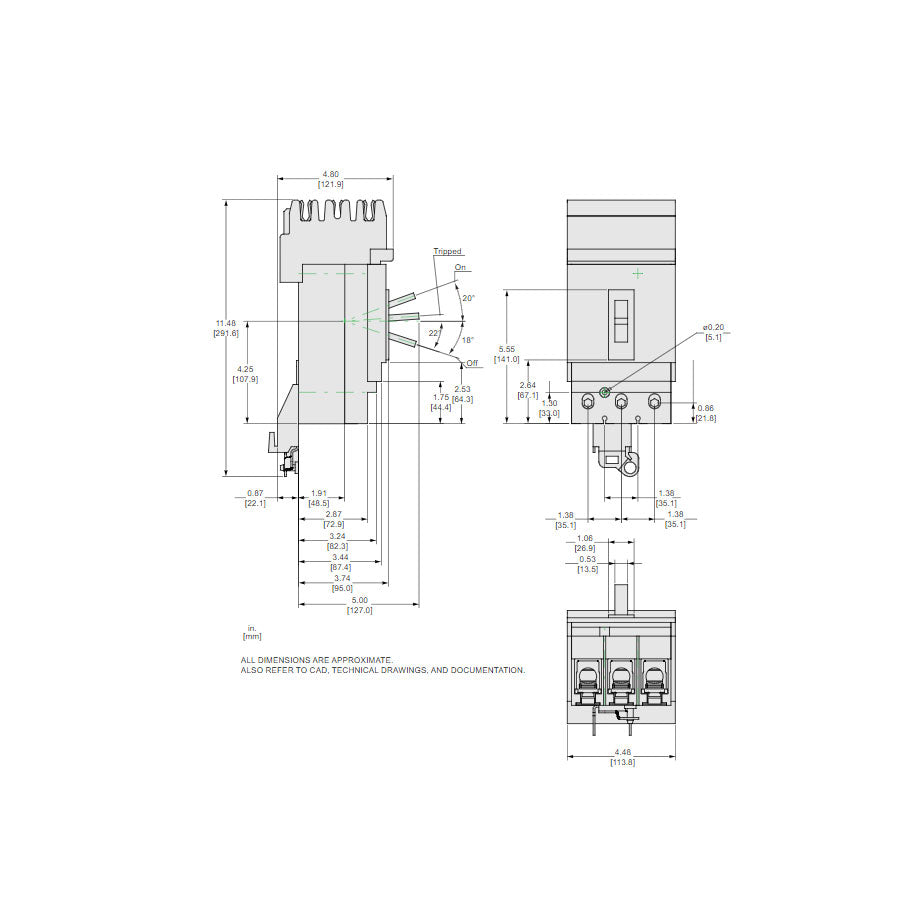

Dimensions

  • Dimensions (HxWxD):

    11.48" x 4.48" x 5.87"
  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Overload protection / Short-circuit protection
  • Frame Type:

    J-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    150 Amp
  • Mounting Mode:

    I-Line bracket
  • Breaking Capacity Code:

    G
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Magnetic Hold Current:

    750 Amp
  • Continuous Current Rating:

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 4...AWG 4/0 aluminium/copper terminal

Product Description - JGA36150 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type JGA, 3P, ABC phase connection, 3PH, 150A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Technical Specification
