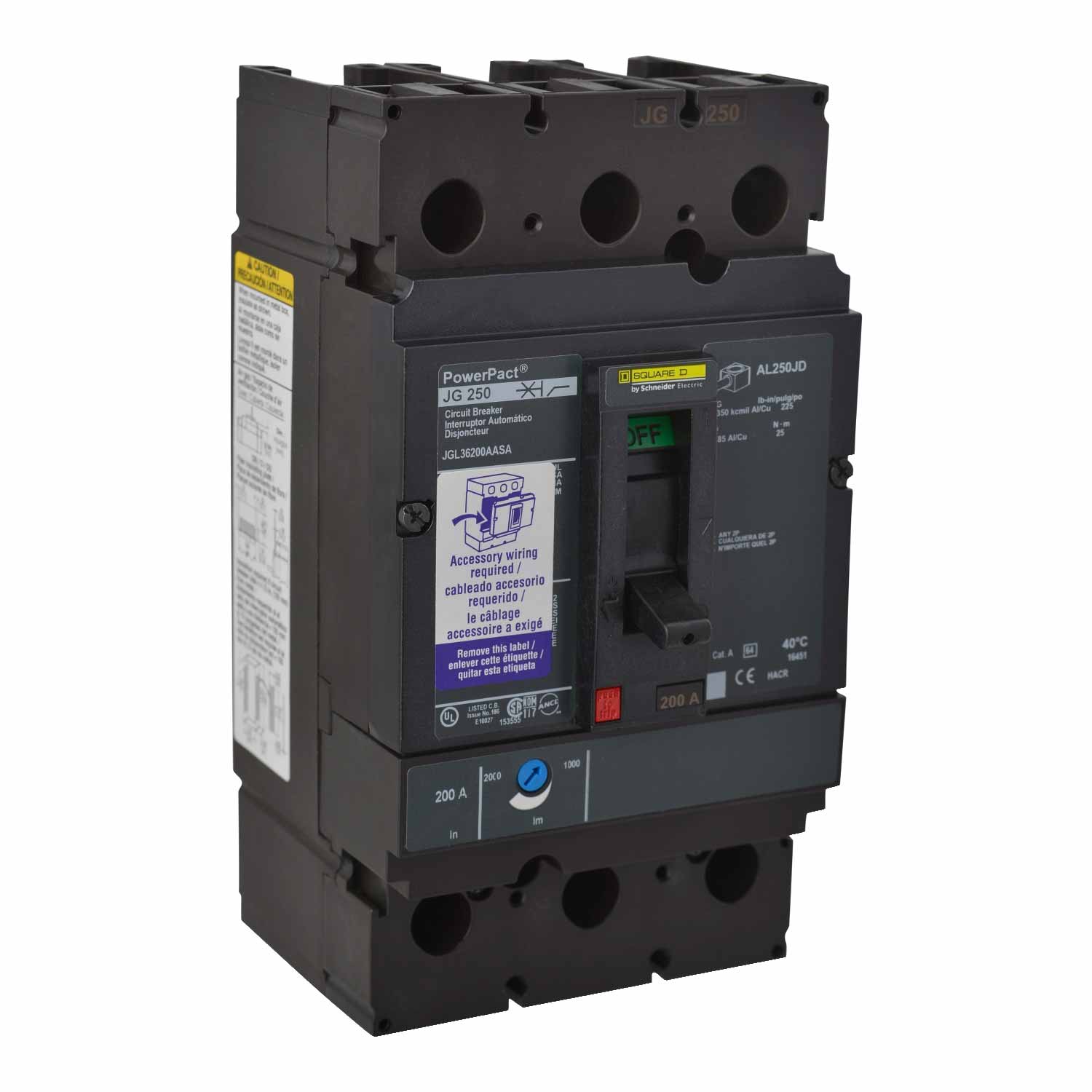

Name: JGL36200AASA - Square D - Molded Case Circuit Breaker
Brand: Square D
SKU: JGL36200AASA
Price: 2999.99 CAD
Availability: InStock

JGL36200AASA - Square D - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 2100 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":41115143241837,"title":"New","option1":"New","option2":null,"option3":null,"sku":"JGL36200AASA","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JGL36200AASA - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":299999,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575303573613,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"JGL36200AASA_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JGL36200AASA - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":209999,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JGL36200AASA - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - JGL36200AASA - Square D Molded Case Circuit Breaker

Part Number:

JGL36200AASA
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp:

200
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Feed-Thru
Type:

J Frame
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

7.52 x 4.09 x 3.9
Weight:

5.09 lbs

Standards

Product Description - JGL36200AASA - Square D Molded Case Circuit Breaker

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch and 120VAC shunt trip. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

JGL36200AASA - Square D - Molded Case Circuit Breaker

Feed-Thru - 200A -3 Pole - 600 Volt
