JGL36250U33X - Square D - Molded Case Circuit Breaker

Feed Thru - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JGL36250U33X

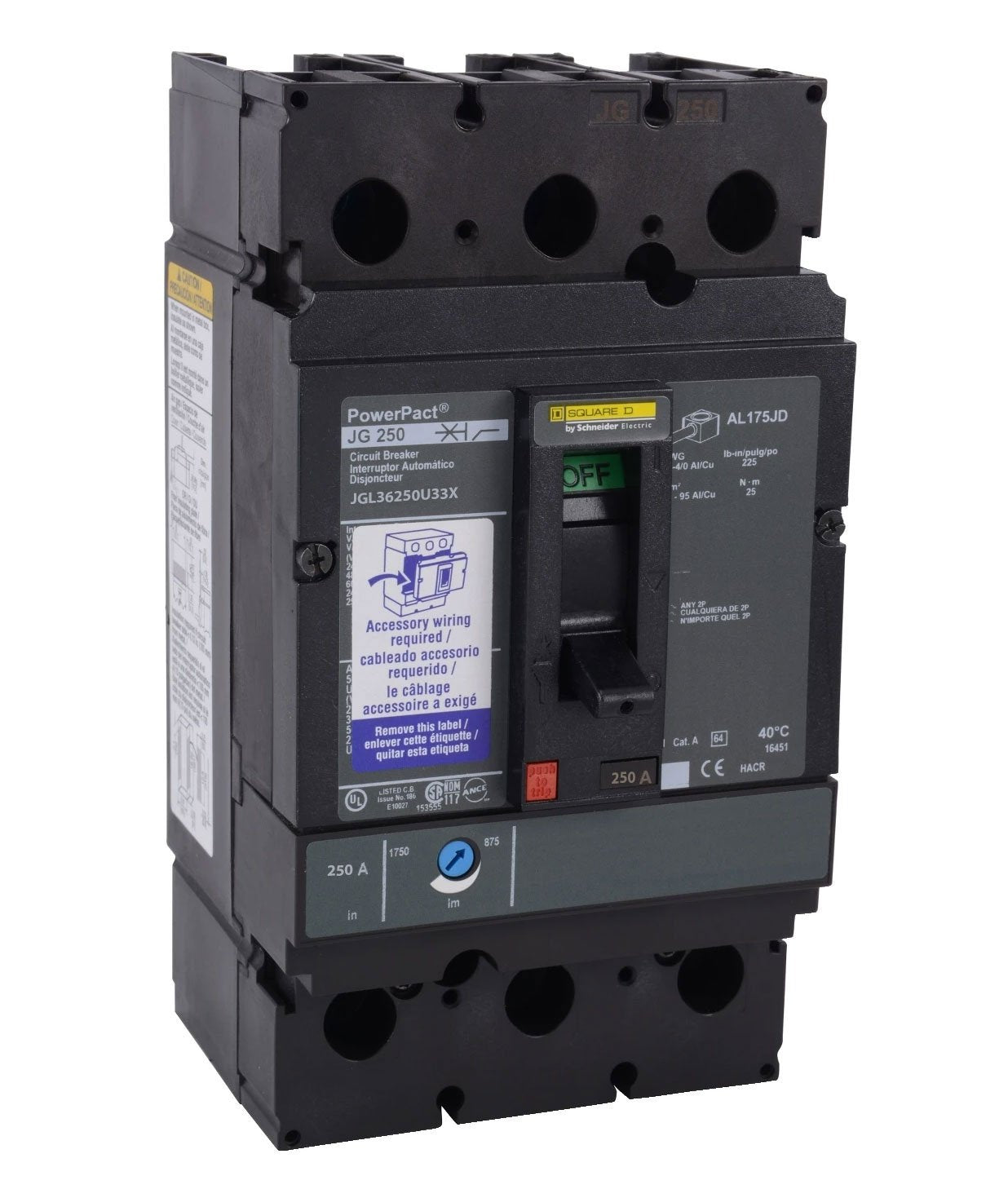

JGL36250U33X - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

JGL36250U33X - Square D - Molded Case Circuit Breaker

Feed Thru - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JGL36250U33X
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 4439 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JGL36250U33X - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - JGL36250U33X - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    JGL

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.09" x 3.39"

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.2 S, LSI

  • Line Rated Current:

    250 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    G

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JGL36250U33X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type JGL, 3P, 3PH, 250A, 600V, 18kA@600V, 35kA@480V, 65KA@240V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state, molded case circuit breakers
