JJA36200SA - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 200 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JJA36200SA
JJA36200SA - Square D 200 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker

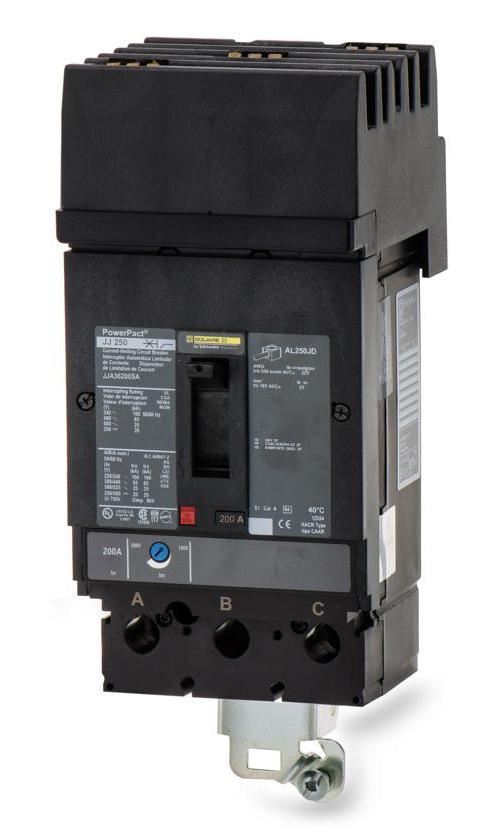

Images are for reference only

JJA36200SA - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 200 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JJA36200SA
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JJA36200SA - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - JJA36200SA - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    JJA

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.09" x 3.39"

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    200 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    J

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    1000 Amp

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JJA36200SA - Square D Molded Case Circuit Breakers

Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 200A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, 120V shunt trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
