LA36350 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 350 Amp - 3 Pole - 600 Volt

LA36350 - Square D - Molded Case Circuit Breaker
LA36350 - Square D - Molded Case Circuit Breaker
LA36350 - Square D - Molded Case Circuit Breaker
LA36350 - Square D - Molded Case Circuit Breaker

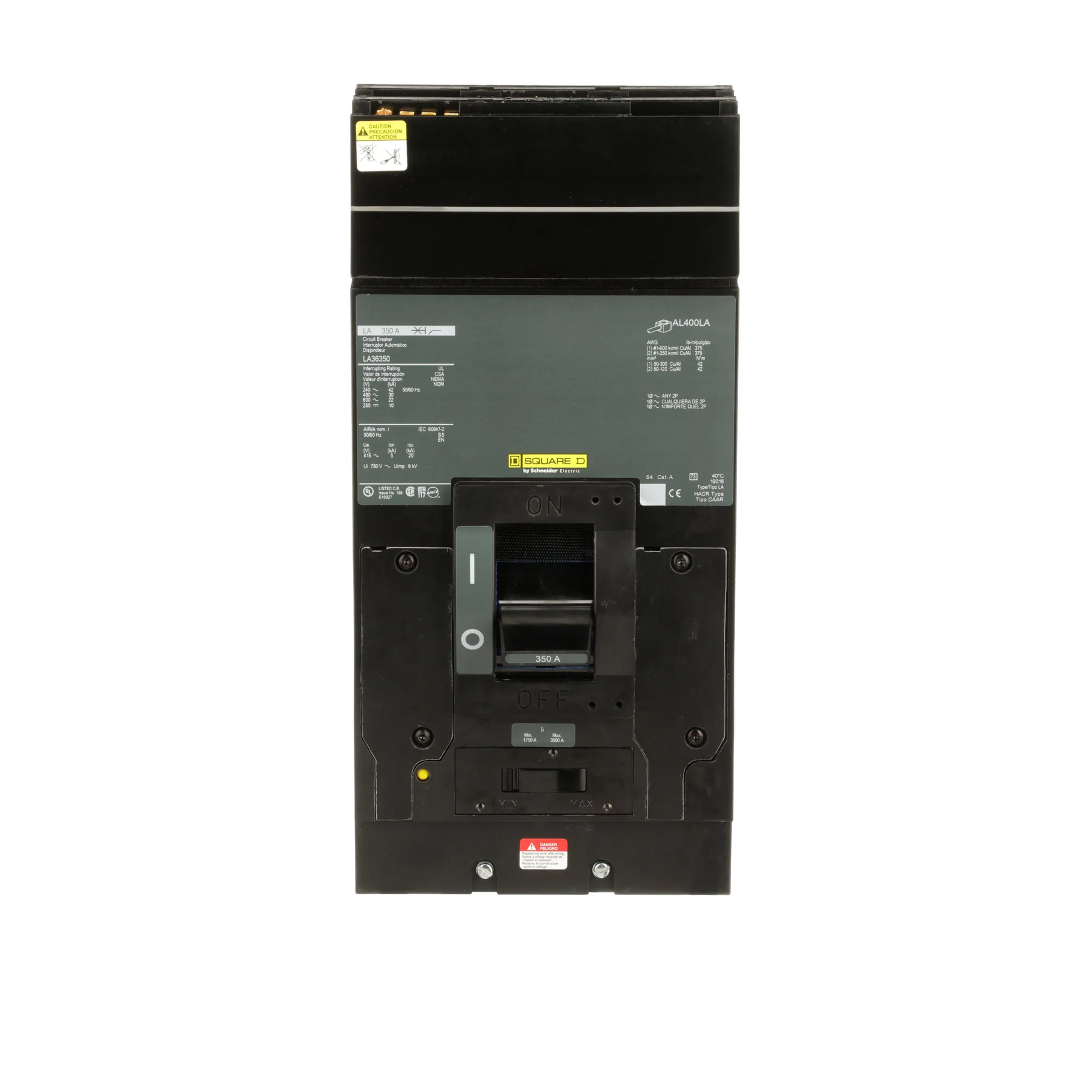

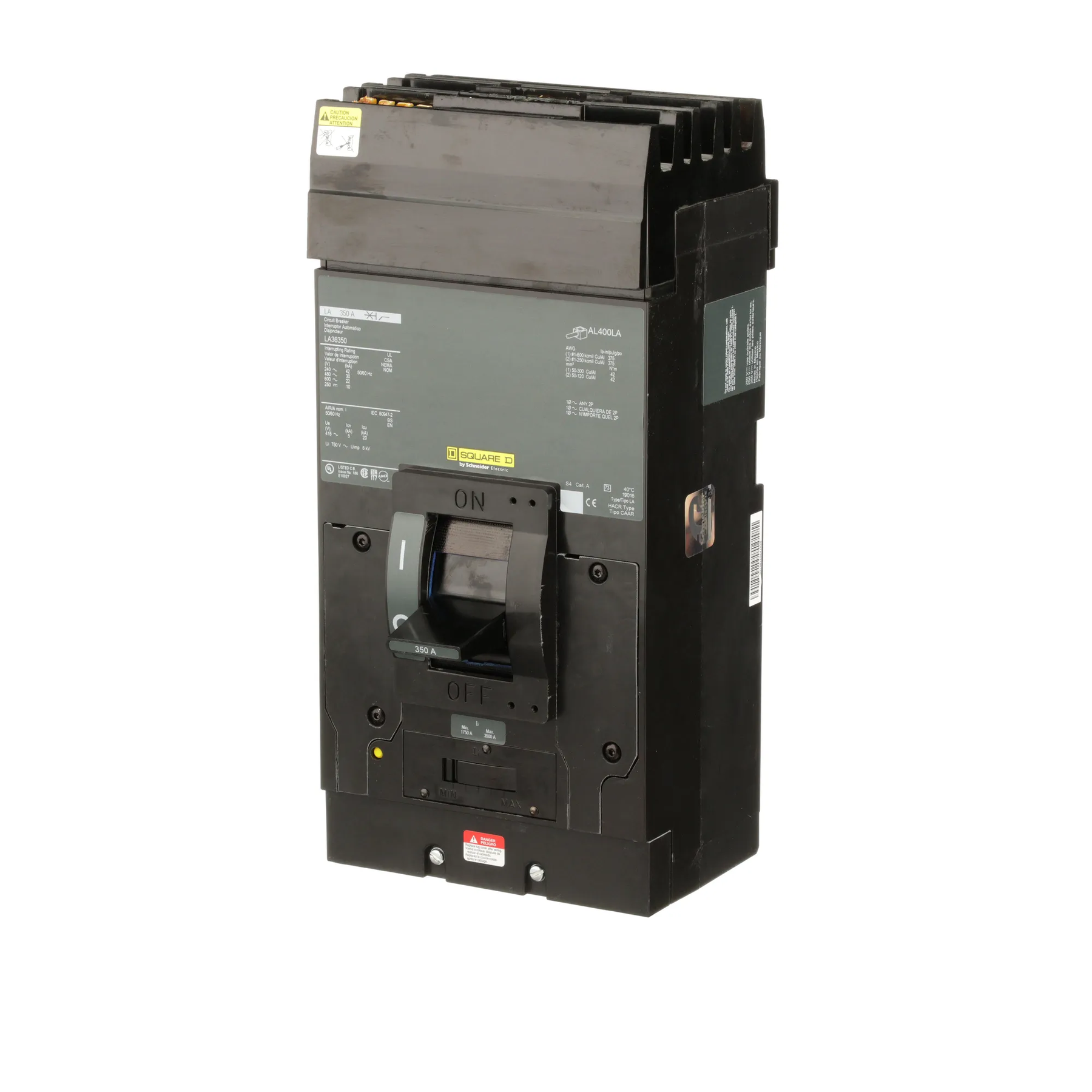

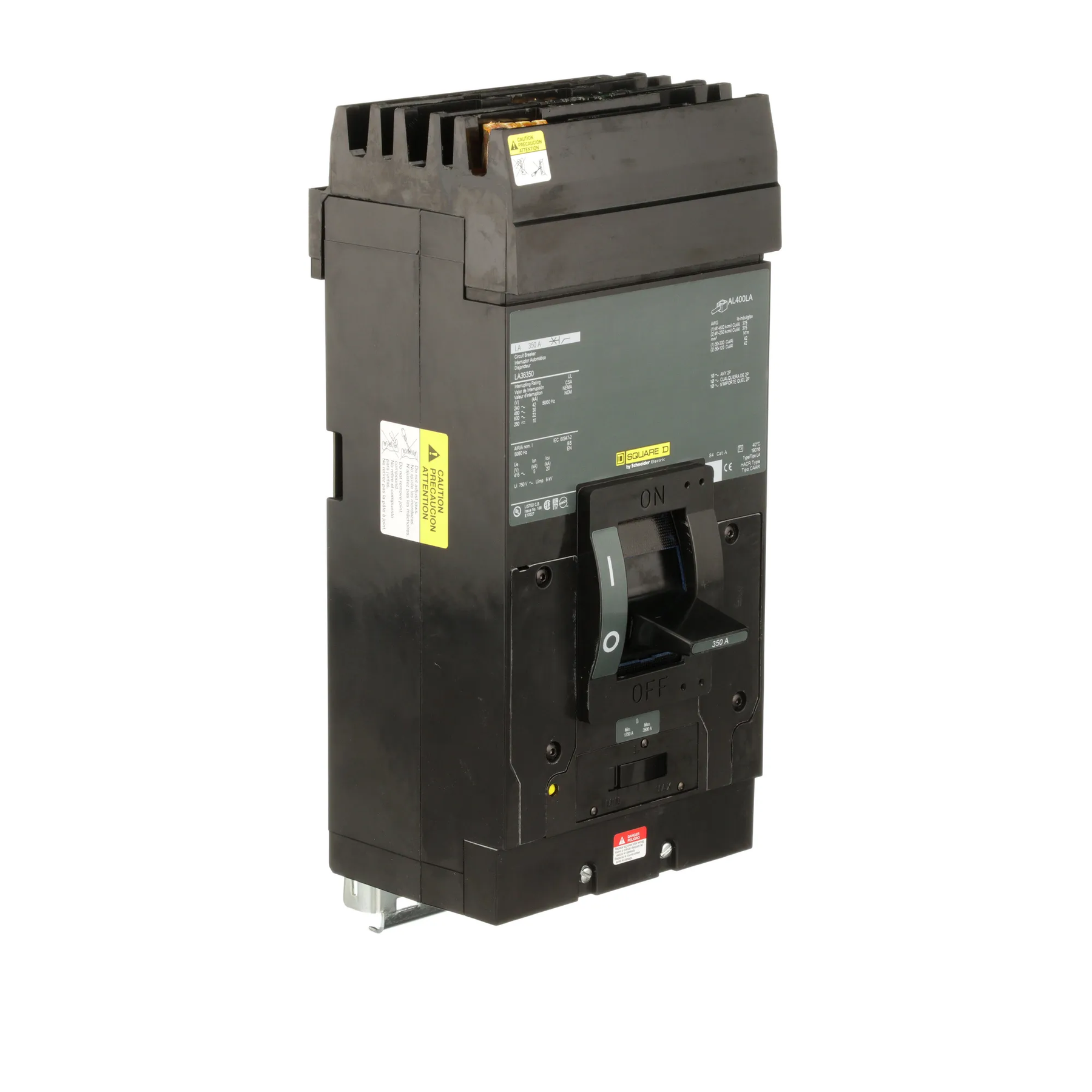

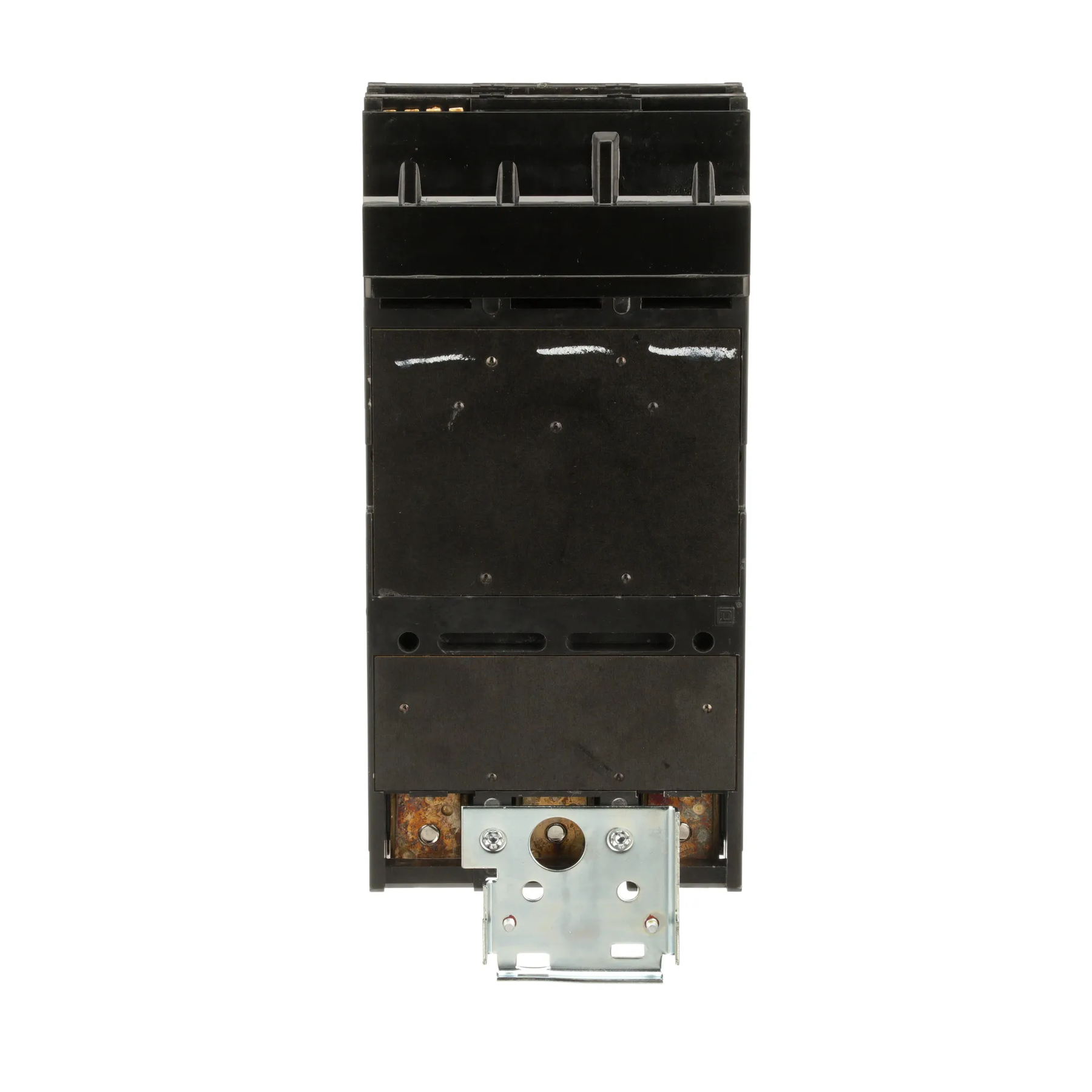

Images are for reference only

LA36350 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 350 Amp - 3 Pole - 600 Volt

Sale price $7,839.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LA36350 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - LA36350 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    LA
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    30kA@480V

Dimensions

  • Dimensions (HxWxD):

    11" x 6" x 5.84"
  • Weight:

    18.530 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    J-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    350 Amp
  • Mounting Mode:

    I-Line
  • Breaking Capacity Code:

    A
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Magnetic Hold Current:

    1750 Amp

Product Description - LA36350 - Square D Powerpact Circuit Breaker

Square D, I-Line, type LA, 3P, ABC phase circuit configuration, 3PH, 350A, 600V, 30kA@480V, standard interrupting capacity, i-line style plug-in, complete with LI - Long-Time and Instantaneous trip functions, thermal magnetic molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
