LDA36400U33X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 400 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: LDA36400U33X
LDA36400U33X - Square D 400 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

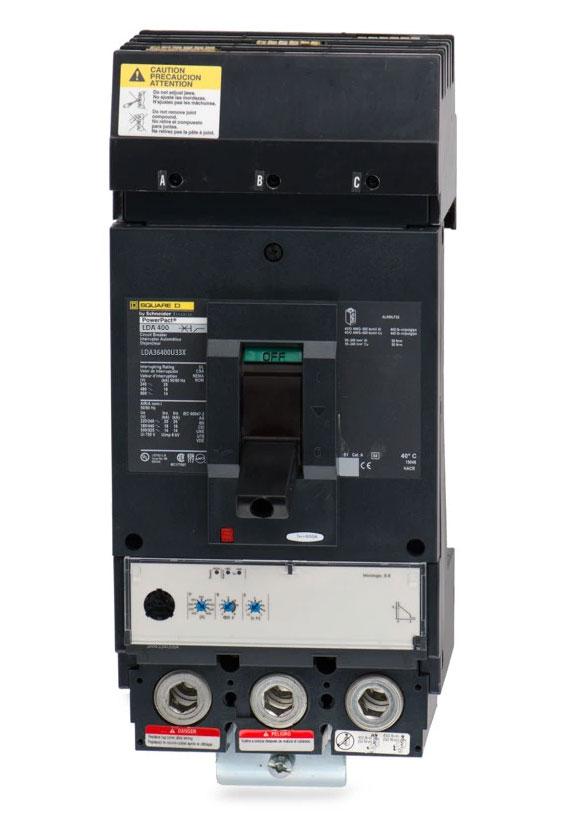

Images are for reference only

LDA36400U33X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 400 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: LDA36400U33X
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 6372 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LDA36400U33X - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - LDA36400U33X - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    LDA

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    13.39" x 5.51" x 4.33"

  • Weight:

    13.67 lbs

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.3 S, LSI

  • Line Rated Current:

    400 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0...500 kcmil aluminium/copper

Product Description - LDA36400U33X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type LDA, 3P, 3PH, 600A, 400V, 14kA@600V, 18kA@480V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet
