Name: LDA36600U33X - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: LDA36600U33X
Price: 9519.99 CAD
Availability: InStock

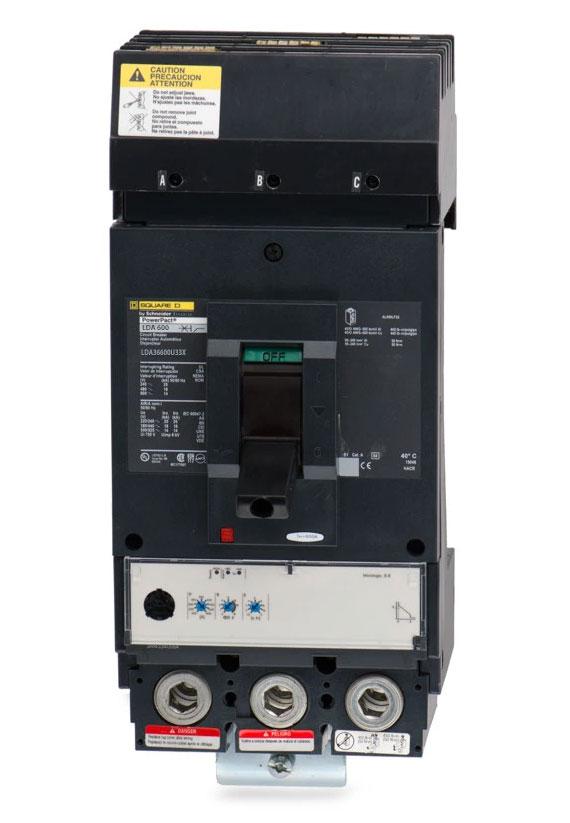

LDA36600U33X - Square D 600 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Quantity

Earn 9520 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LDA36600U33X - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - LDA36600U33X - Square D Molded Case Circuit Breakers

Part Number:

LDA36600U33X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

600
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

LDA
Functions:

LSI - Long-Time, Short-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

13.39" x 5.51" x 4.33"

Weight:

13.67 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, standard, MicroLogic 3.3 S, LSI
Line Rated Current:

600 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code

D
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Product Description - LDA36600U33X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type LDA, 3P, 3PH, 600A, 600V, 14kA@600V, 18kA@480V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers

LDA36600U33X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 600 Amp - 3 Pole - 600 Volt

LDA36600U33X - Square D - Molded Case Circuit Breaker
