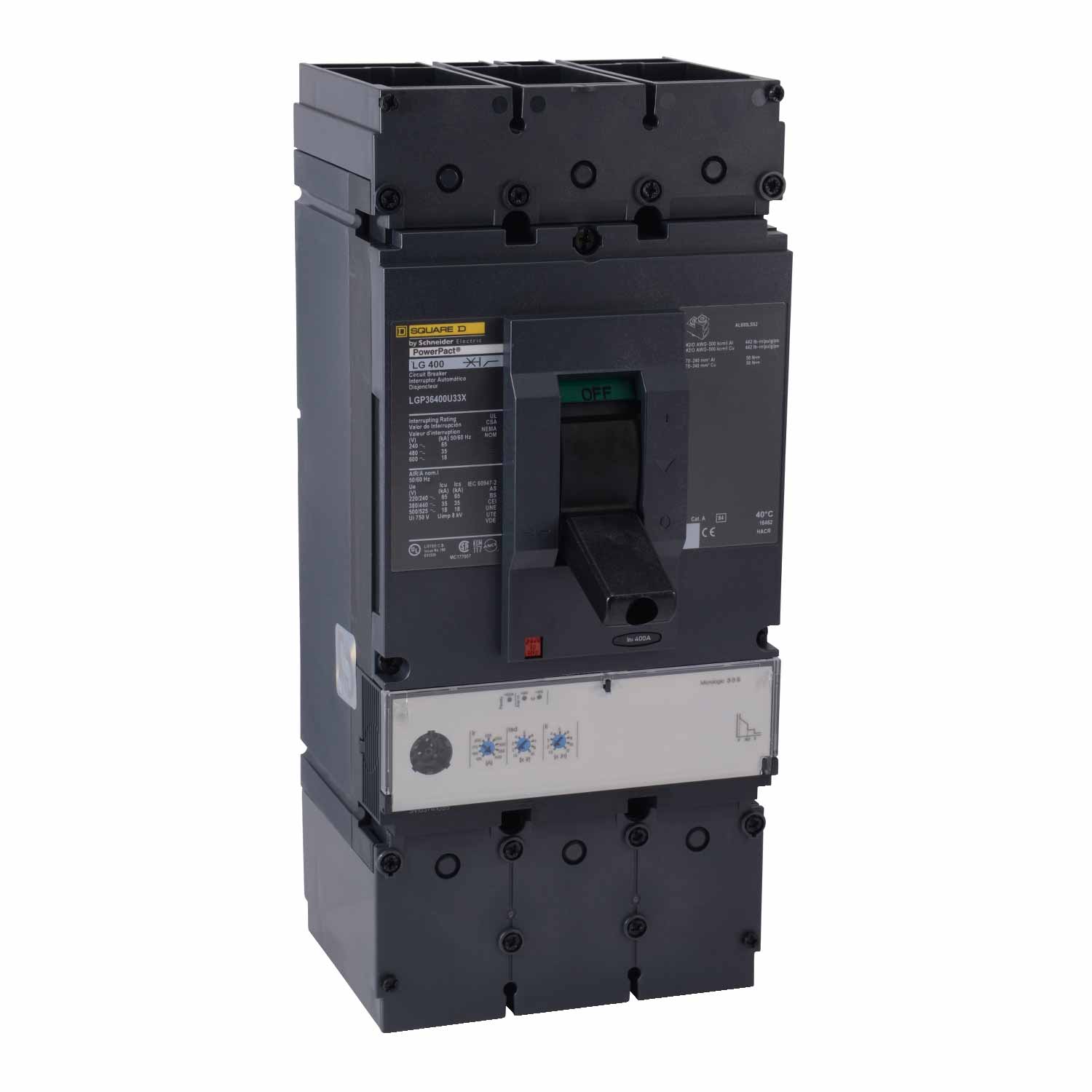

LGP36400CU33X - Square D - Molded Case Circuit Breaker

Bolt-On - 400A -3 Pole - 600 Volt

Square D SKU: LGP36400CU33X
LGP36400CU33X - Square D - Molded Case Circuit Breaker

Images are for reference only

LGP36400CU33X - Square D - Molded Case Circuit Breaker

Bolt-On - 400A -3 Pole - 600 Volt

Square D SKU: LGP36400CU33X
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 11613 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LGP36400CU33X - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - LGP36400CU33X - Square D Molded Case Circuit Breaker

  • Category:

    Molded Case Circuit Breakers / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    L Frame

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    13.39 x 5.51 x 4.33

  • Weight:

    13.67 lbs

Standards

CSA Approved logo

Product Description - LGP36400CU33X - Square D Molded Case Circuit Breaker

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
