Name: LH36250 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: LH36250
Price: 5283.0 USD
Availability: InStock

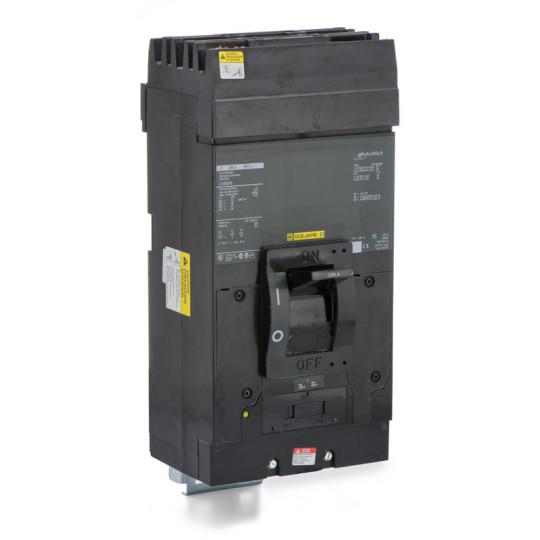

LH36250 - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 3374 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513801027693,"title":"New","option1":"New","option2":null,"option3":null,"sku":"LH36250","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LH36250 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":528300,"weight":8618,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901339403","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755421708397,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"LH36250_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LH36250 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":337400,"weight":8618,"compare_at_price":392800,"inventory_management":"shopify","barcode":"785901339403","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LH36250 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - LH36250 - Square D Powerpact Circuit Breaker

Part Number:

LH36250
Manufacturer:

Schneider Electric / Square D
Family:

I-Line
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

LH
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
Frame Type:

L Frame
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

12.5" x 6.0" x 4.0"

Standards

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

250 Amp
Mounting Mode:

I-Line

Breaking Capacity Code:

H
Magnetic Hold Current:

1250 A
Electrical Connection:

I-Line connection line / Lugs load

Product Description - LH36250 - Square D Powerpact Circuit Breaker

Square D, I-Line, type LH, 3P, ABC phase circuit configuration, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, complete with LI - Long-Time and Instantaneous trip functions, thermal magnetic molded case circuit breakers.

Documentation

Catalogue

Data Sheet

LH36250 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 250 Amp - 3 Pole - 600 Volt

LH36250 - Square D - Molded Case Circuit Breaker
