LJL36600U33X - Square D - Molded Case Circuit Breaker

Feed-Thru - 600 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: LJL36600U33X
LJL36600U33X - Square D - Molded Case Circuit Breaker
LJL36600U33X - Square D - Molded Case Circuit Breaker
LJL36600U33X - Square D - Molded Case Circuit Breaker
LJL36600U33X - Square D - Molded Case Circuit Breaker
LJL36600U33X - Square D 600 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
LJL36600U33X - Square D - Molded Case Circuit Breaker

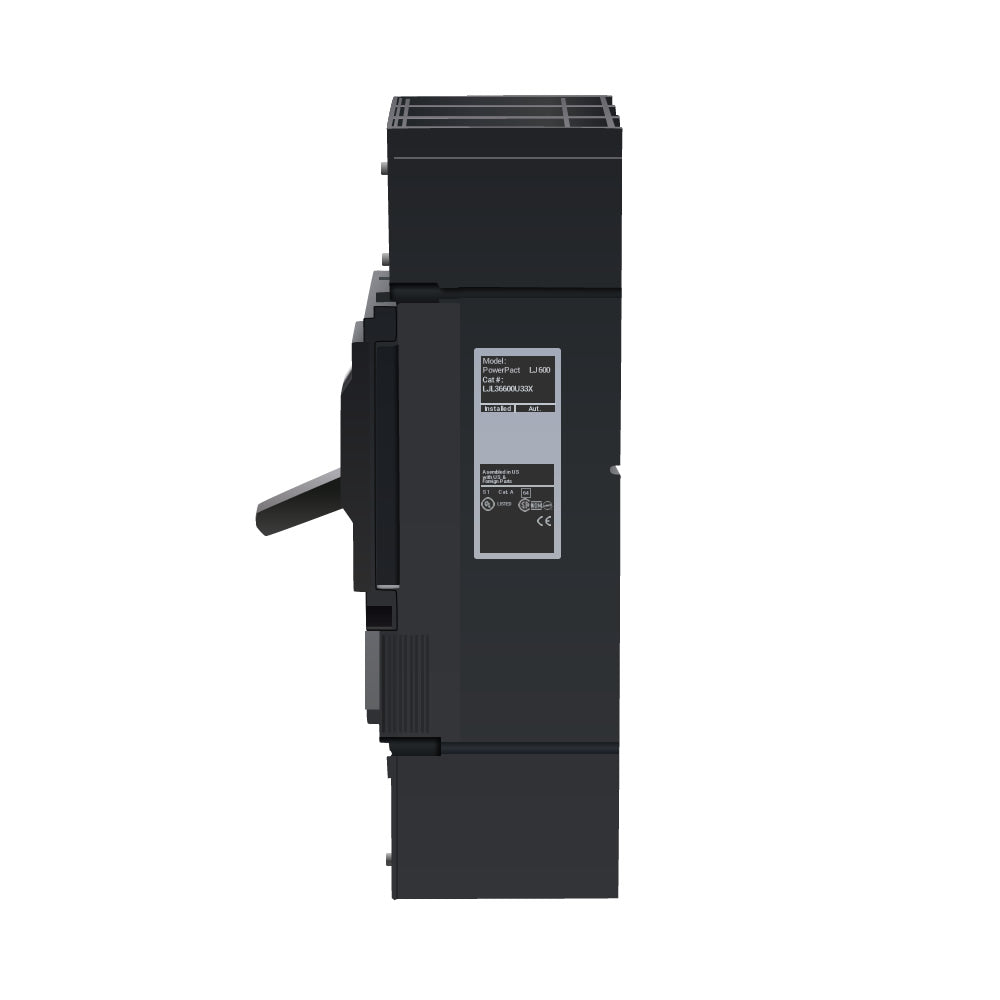

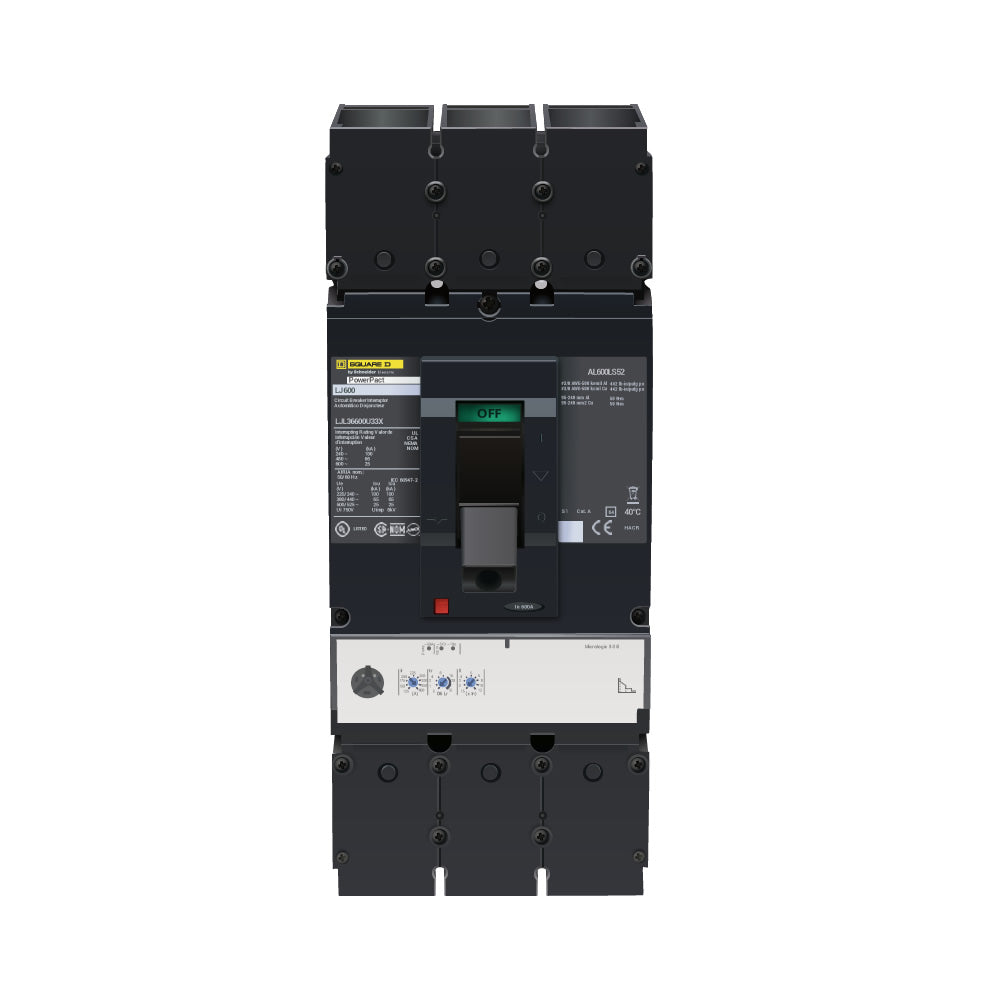

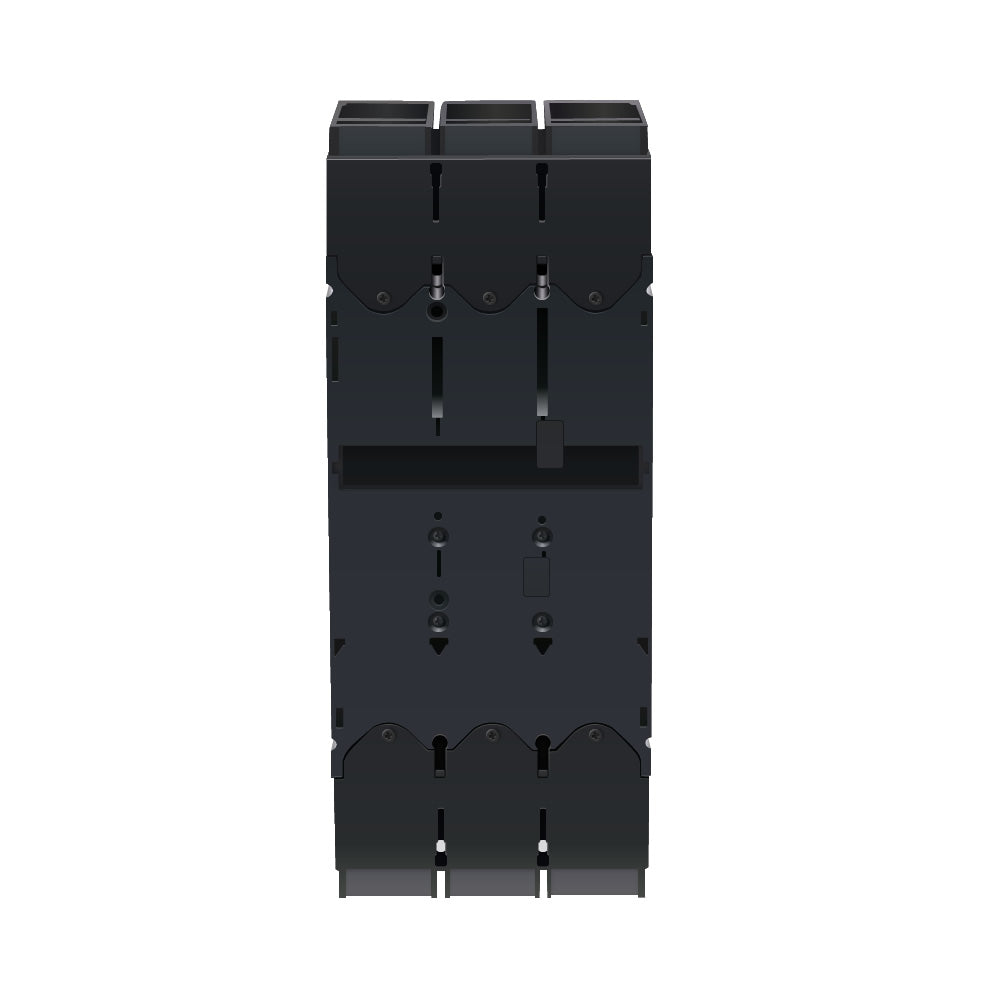

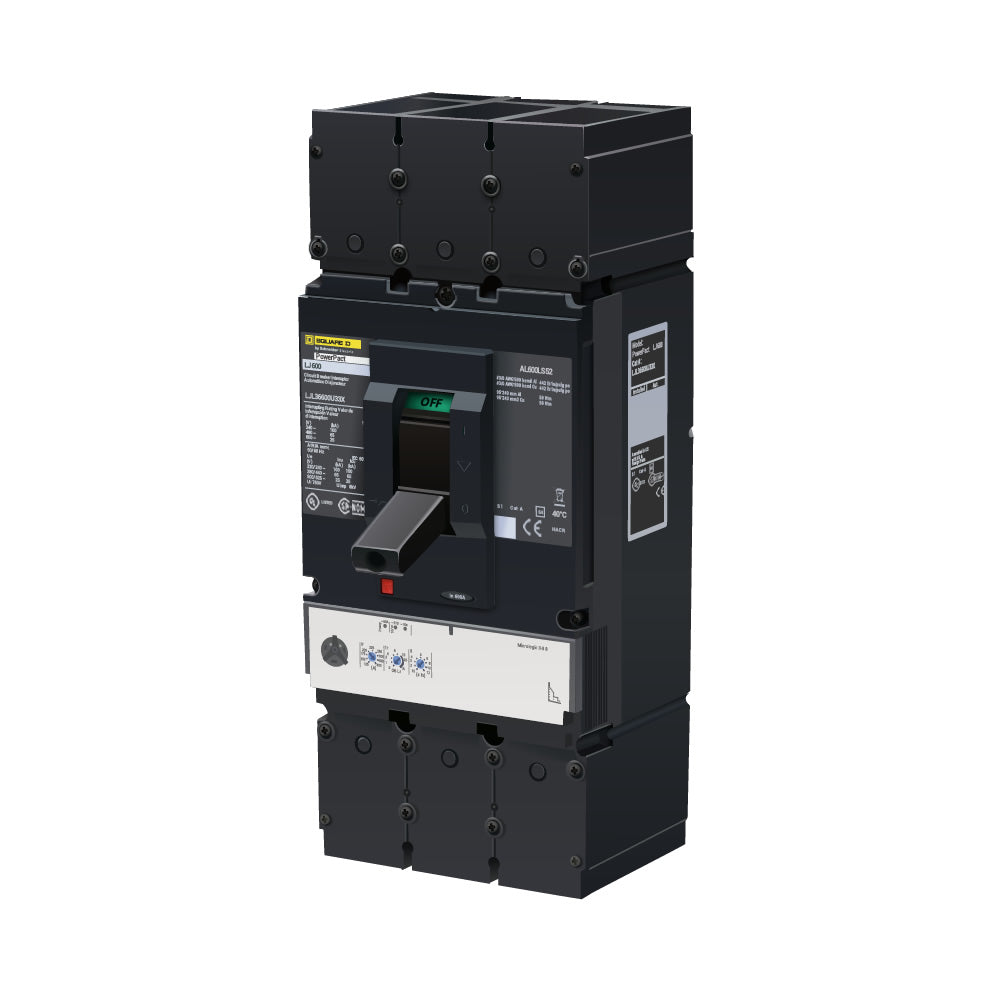

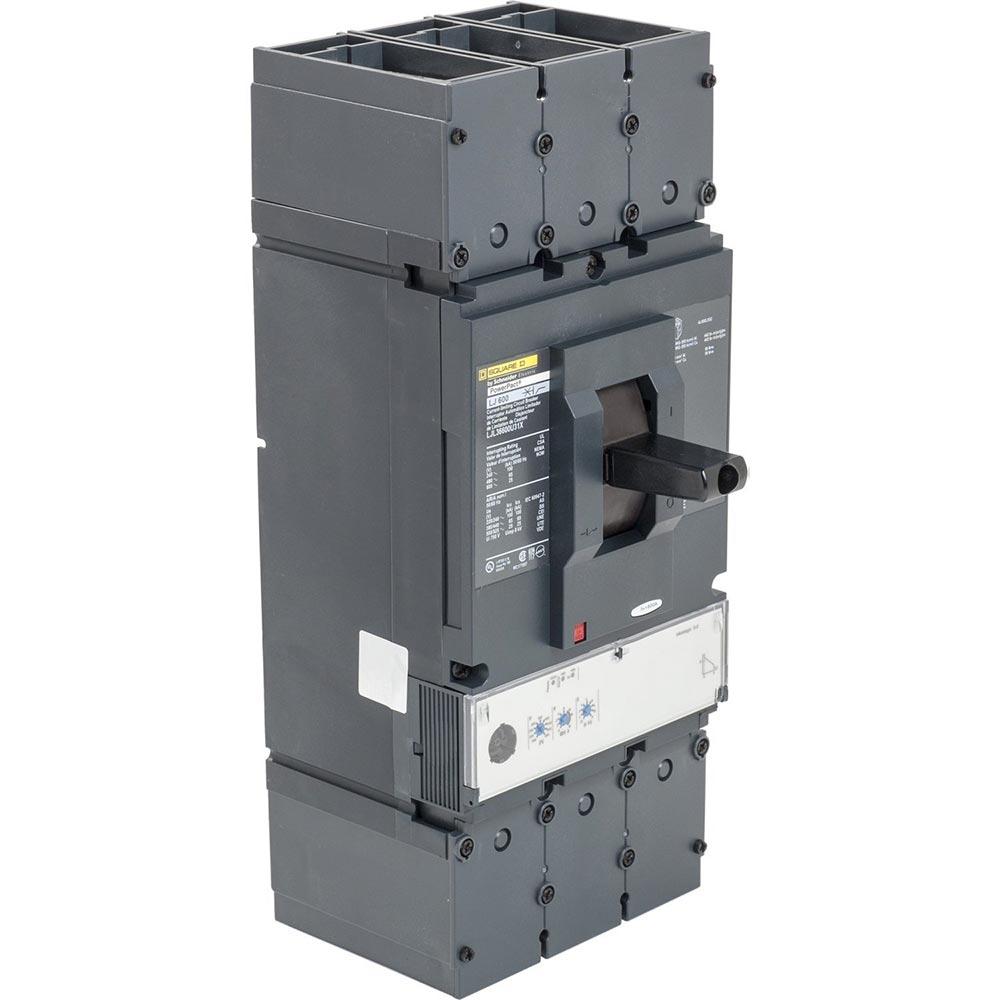

Images are for reference only

LJL36600U33X - Square D - Molded Case Circuit Breaker

Feed-Thru - 600 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: LJL36600U33X
Sale price $9,999.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LJL36600U33X - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - LJL36600U33X - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    Feed-Thru
  • Type:

    LJL
  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous
  • Protection:

    Solid State
  • Frame Type:

    L Frame
  • AIC Ratings:

    65kA@480V

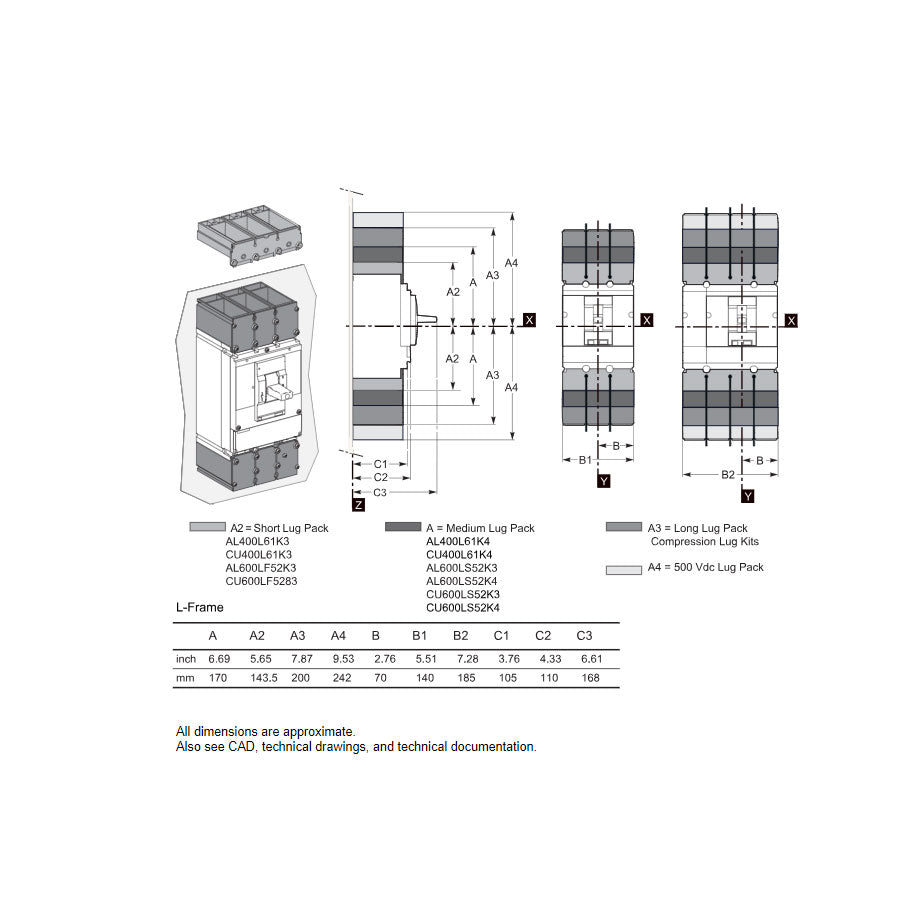

Dimensions

  • Dimensions (HxWxD):

    11.3" x 5.5" x 6.61"

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.3, LI
  • Line Rated Current:

    600 Amp
  • Mounting Mode:

    i-Line Bracket
  • Breaking Capacity Code:

    J
  • Electrical Connection:

    I-Line connection line / Lugs load

Product Description - LJL36600U33X - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type LJL, 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Data Sheet
