MGL36400 - Square D - Molded Case Circuit Breaker

Feed-Thru - 400 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MGL36400

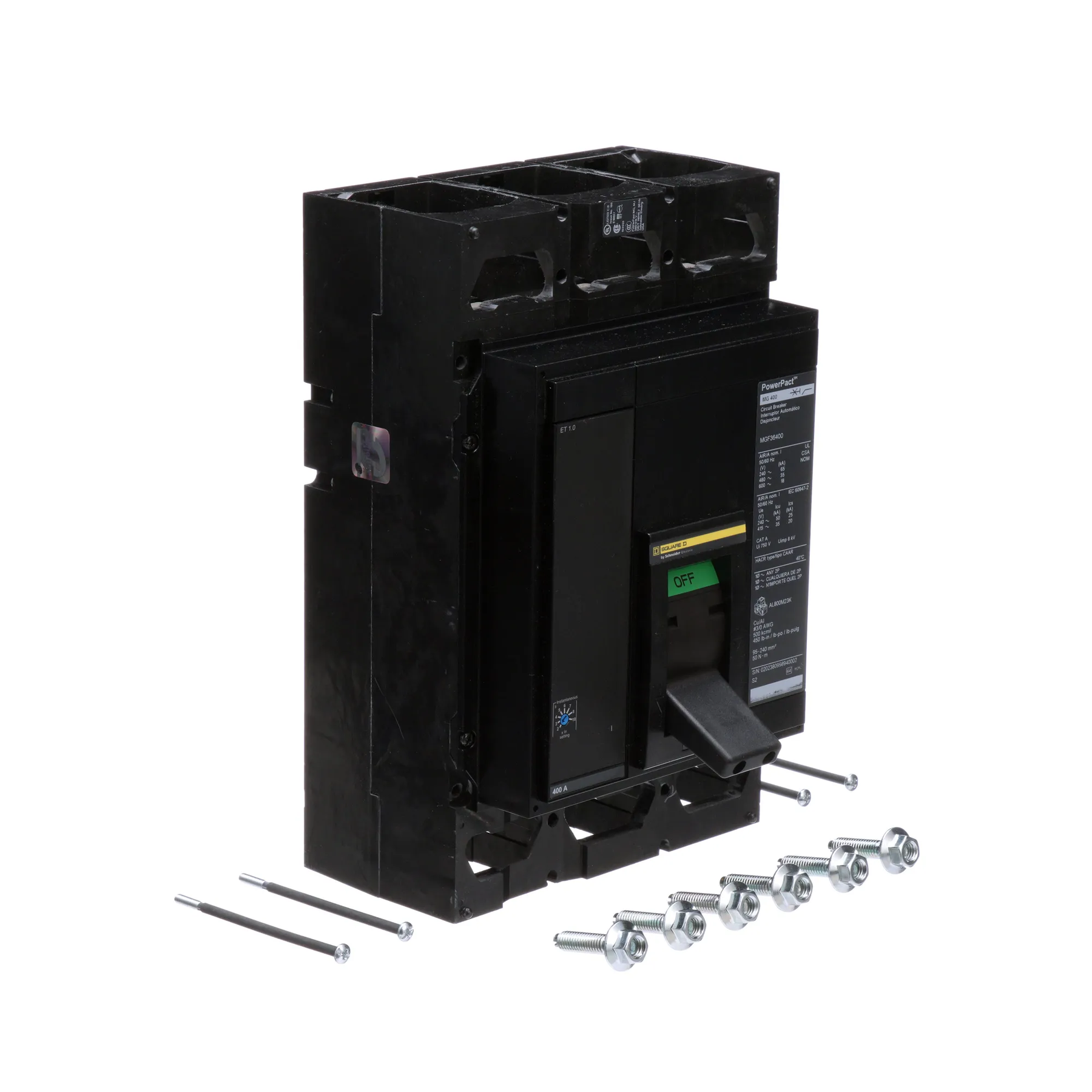

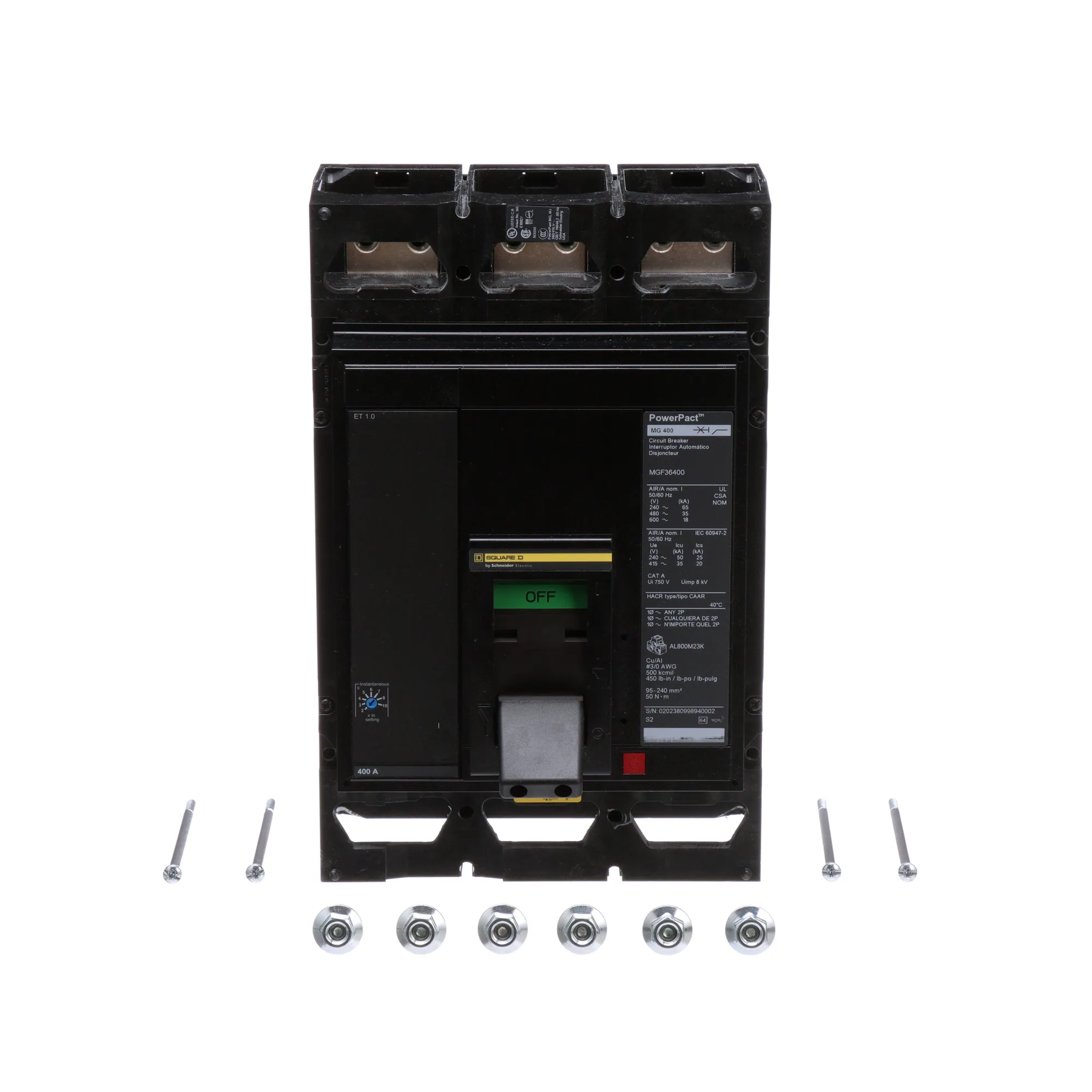

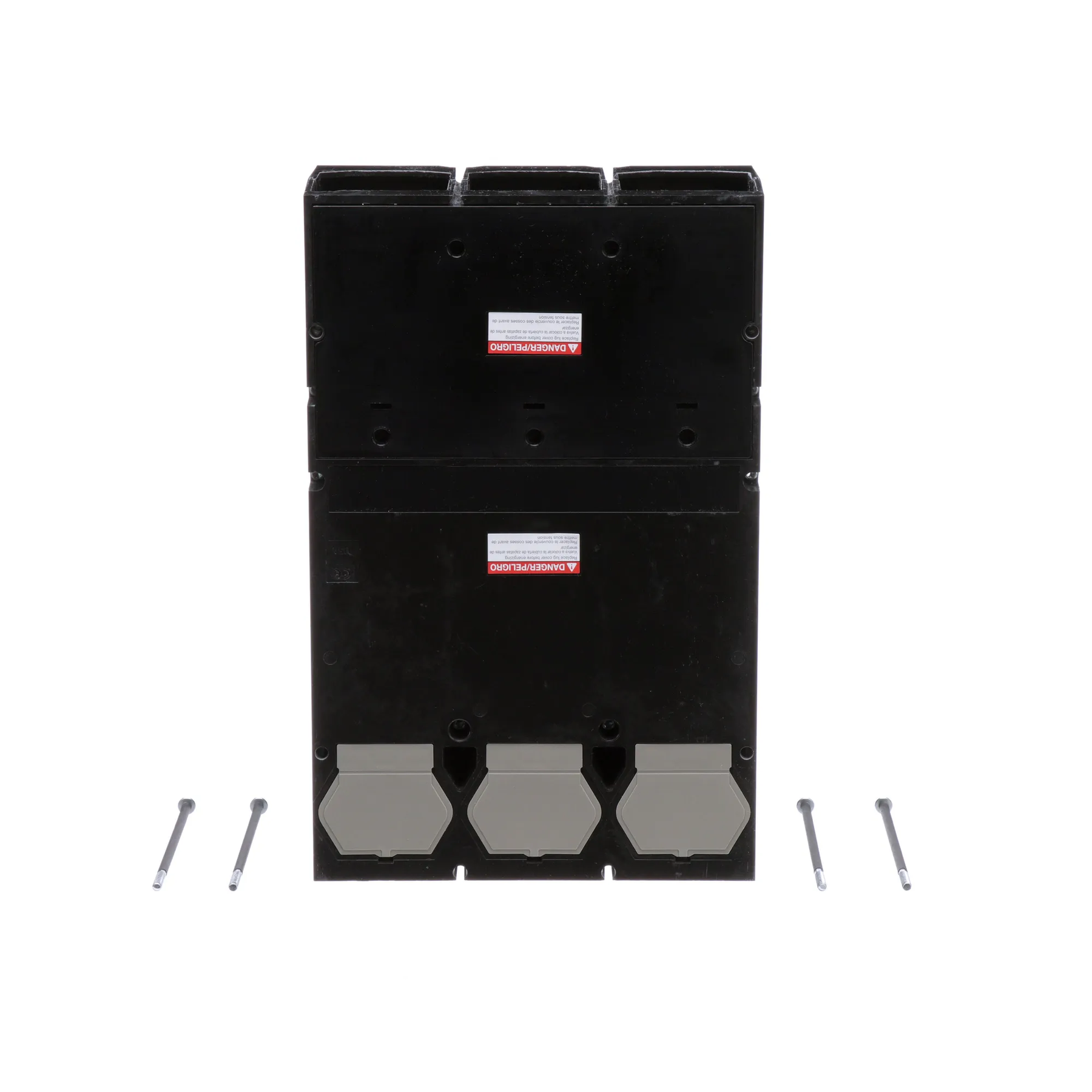

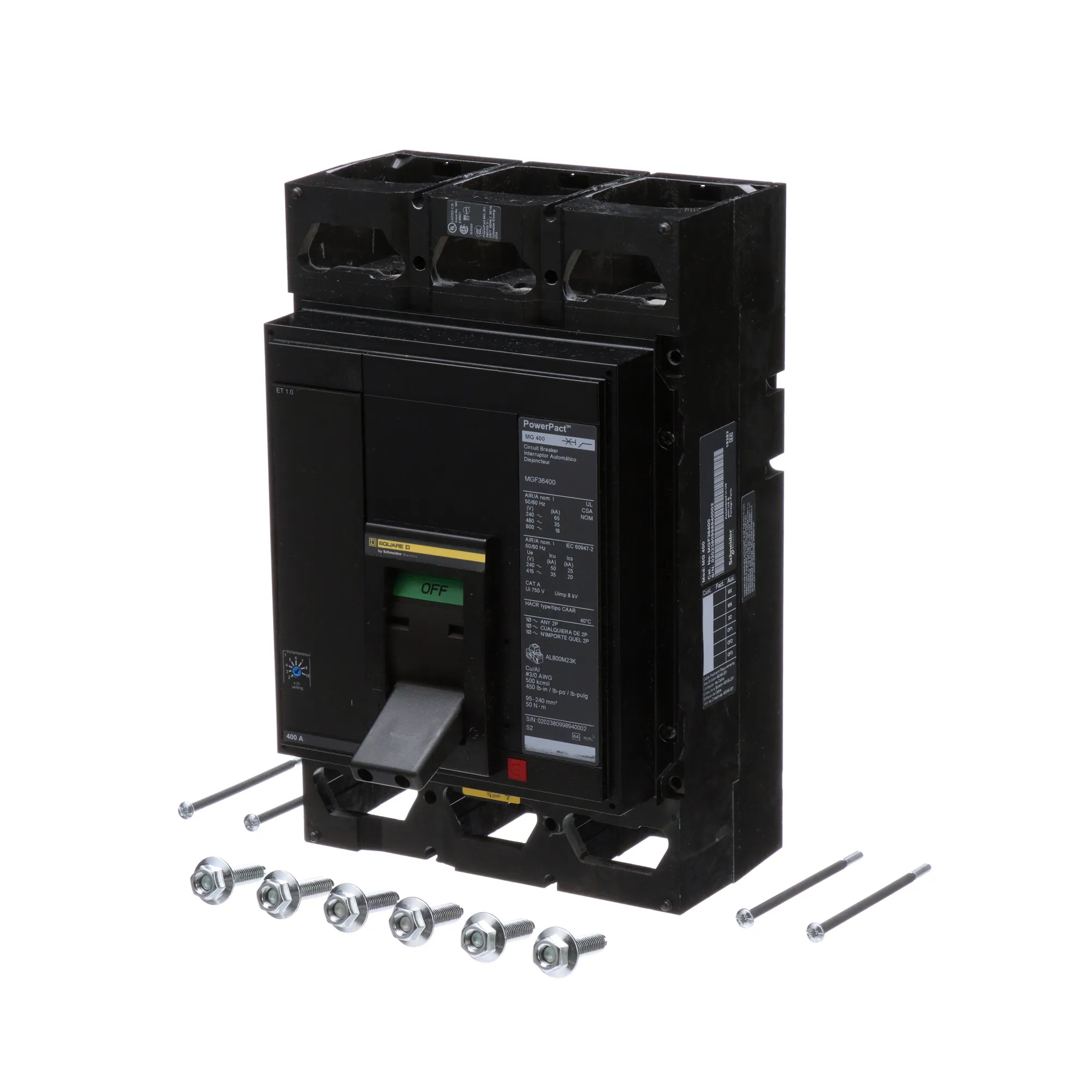

MGL36400 - Square D 400 Amp 3 Pole 600 Volt Solid State Molded Case Circuit Breaker
MGL36400 - Square D - Molded Case Circuit Breaker
MGL36400 - Square D - Molded Case Circuit Breaker
MGL36400 - Square D - Molded Case Circuit Breaker

Images are for reference only

MGL36400 - Square D - Molded Case Circuit Breaker

Feed-Thru - 400 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MGL36400
Regular price $9,887.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - MGL36400 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - MGL36400 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    Feed-Thru
  • Type:

    MGL
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Solid State
  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    12.86" x 0.32" x 8.27"
  • Weight:

    29 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    M-Frame
  • Trip Unit Technology:

    Electronic, basic, ET 1.0,
  • Line Rated Current:

    400 Amp
  • Mounting Mode:

    Unit Mount Lug
  • Breaking Capacity Code:

    G
  • Electrical Connection:

    Lugs line / Lugs load
  • Continuous Current Rating:

    80%
  • Control Type:

    Operating Handle
  • AWG Gauge:

    3 x AWG 3/0...3 x 500 kcmil aluminium/copper

Product Description - MGL36400 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MGL, 3P, 3PH, 400A, 600V, 35kA@480V, UL listed, high interrupting capacity, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Installation Instruction

PDF Icon Data Sheet
