MJL36800 - Square D - Molded Case Circuit Breaker

Feed-Thru - 800 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MJL36800
MJL36800 - Square D 800 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
MJL36800 - Square D - Molded Case Circuit Breaker
MJL36800 - Square D - Molded Case Circuit Breaker
MJL36800 - Square D - Molded Case Circuit Breaker

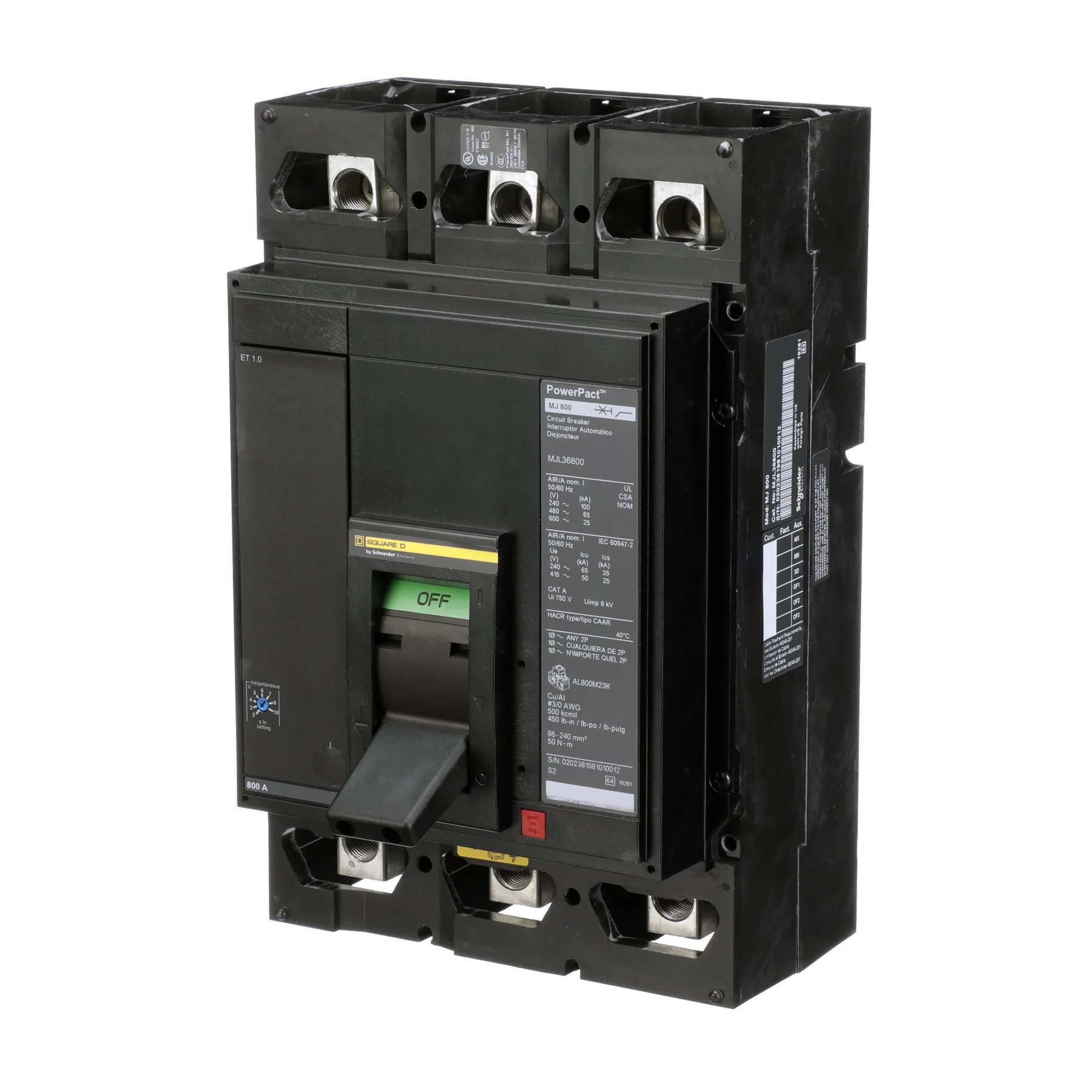

Images are for reference only

MJL36800 - Square D - Molded Case Circuit Breaker

Feed-Thru - 800 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MJL36800
Sale price $9,881.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - MJL36800 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - MJL36800 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    MJL
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Solid State
  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    12.86" x 0.32" x 8.27"
  • Weight:

    29 lbs

Standards

CSA Approved logo

Additional Details

  • FrameType:

    M Frame
  • Trip Unit Technology:

    Electronic, basic, ET 1.0
  • Line Rated Current:

    800
  • Mounting Mode:

    Unit Mount Lug
  • Breaking Capacity Code

    J
  • Electrical Connection:

    Lugs line / Lugs load
  • Continuous Current Rating:

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    3 x AWG 3/0...3 x 500 kcmil aluminium/copper

Product Description - MJL36800 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MJL, 3P, 3PH, 800A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Data Sheet


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
33%
(1)
0%
(0)
0%
(0)
R
Rob
Great purchase experience, shipping and support!

Needed a pretty rare breaker and found it here. Ordered on line and got the item in two days. Follow up - the breaker failed after 6 months, so I bought a second one. Then I reported the problem so the manufacturer; they said call the seller. Now note that at this point, I have purchased two breakers as I needed the replacement and didn't want to screw around with warranty claims, etc. Breaker showed up at my house, and I reported the failure to Canada Breakers. I HAD A REFUND WITHIN AN HOUR for the second breaker I had purchased. Recognize that they were within their rights to just replace the breaker (so I would have had 2 of them). You never know who you will be dealing with in an online purchase, but these guys rock!

R
Ray Ann Benedict
good

They worked fine

S
Shy Buyer
Five Stars

As discribed and worked perfect!
