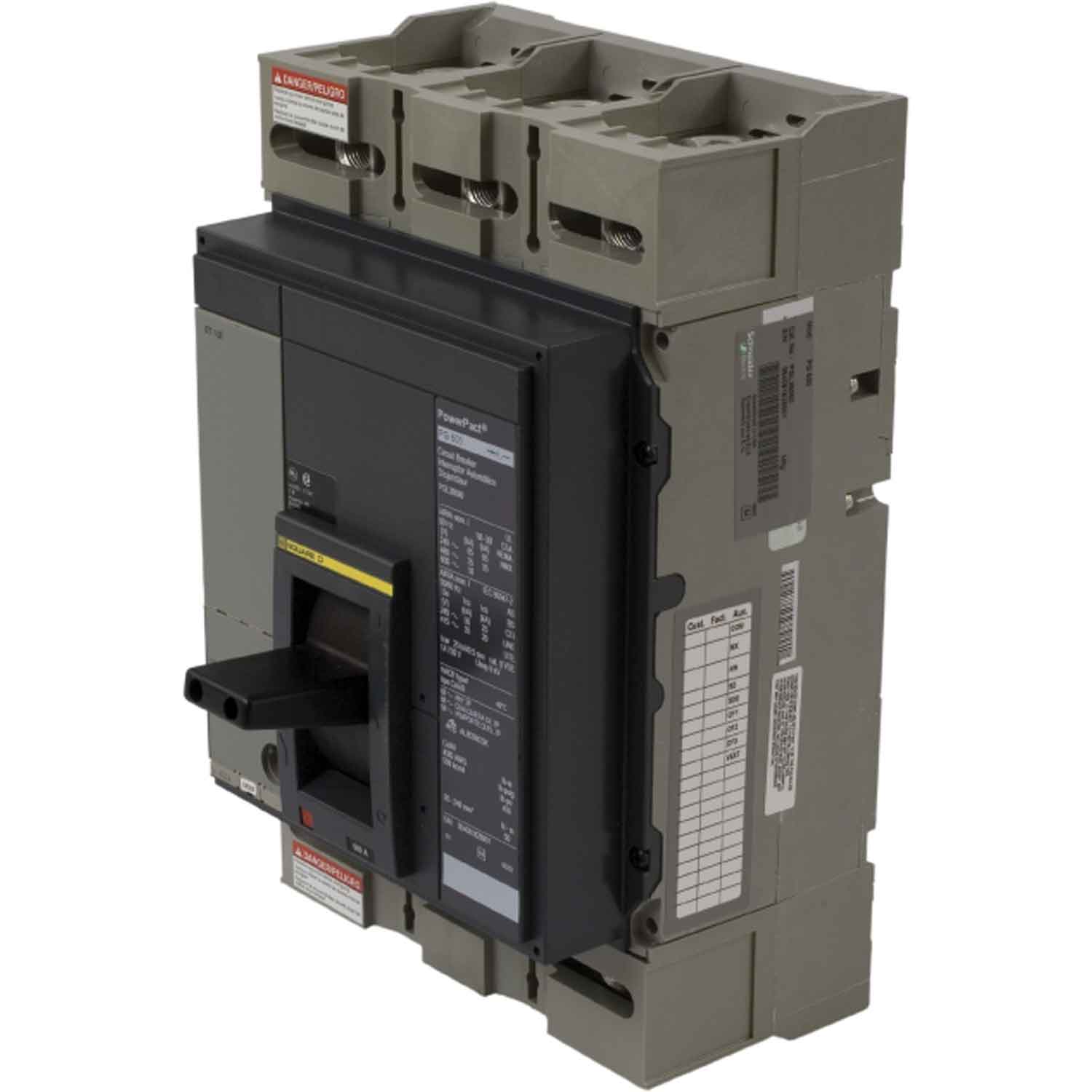

PGL36080 - Square D - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 17871 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40955038957677,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PGL36080","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGL36080 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":2552899,"weight":14515,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901892618","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575185510509,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PGL36080_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGL36080 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":1787099,"weight":14515,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901892618","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PGL36080 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - PGL36080 Schneider Electric Molded Case Circuit Breaker

Part Number:

PGL36080
Manufacturer:

Schneider Electric
Family:

Powerpact
Pole:

3
Amp

800
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Feed-Thru
Type:

PGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

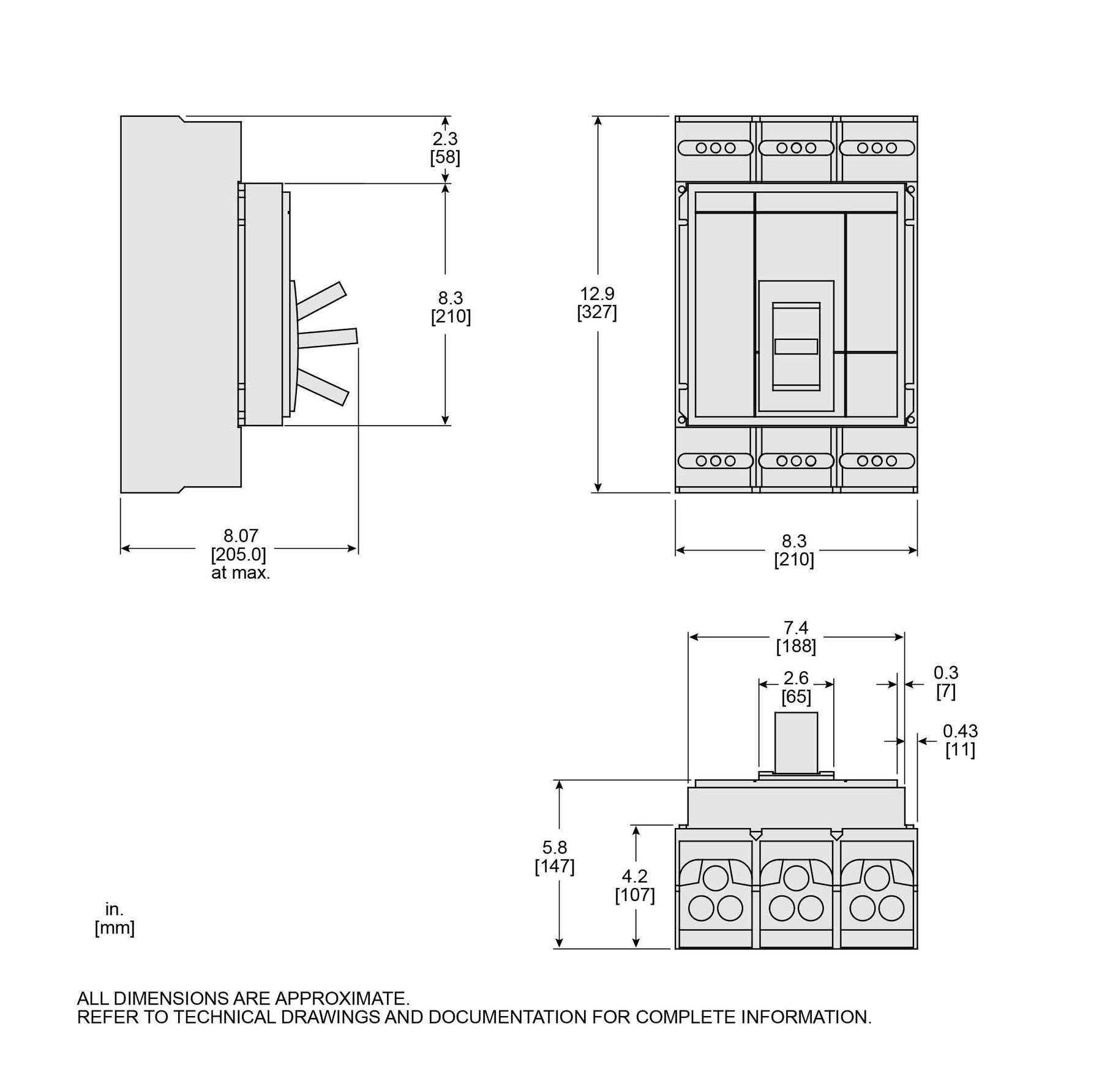

Dimensions

Dimensions (HxWxD):

8.05 x 8.27 x 12.86
Weight:

32 lb

Standards

Product Description - PGL36080 Schneider Electric Molded Case Circuit Breaker

PGL36080, Square D,Schneider Electric, Powerpact, type PGL, 3P, 3PH, 800A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Feed-Thru, complete with basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

PGL36080 - Square D - Molded Case Circuit Breaker

Feed-Thru - 800 Amp - 3 Pole - 600 V
