Name: PGL36120U44A - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: PGL36120U44A
Price: 21499.99 CAD
Availability: InStock

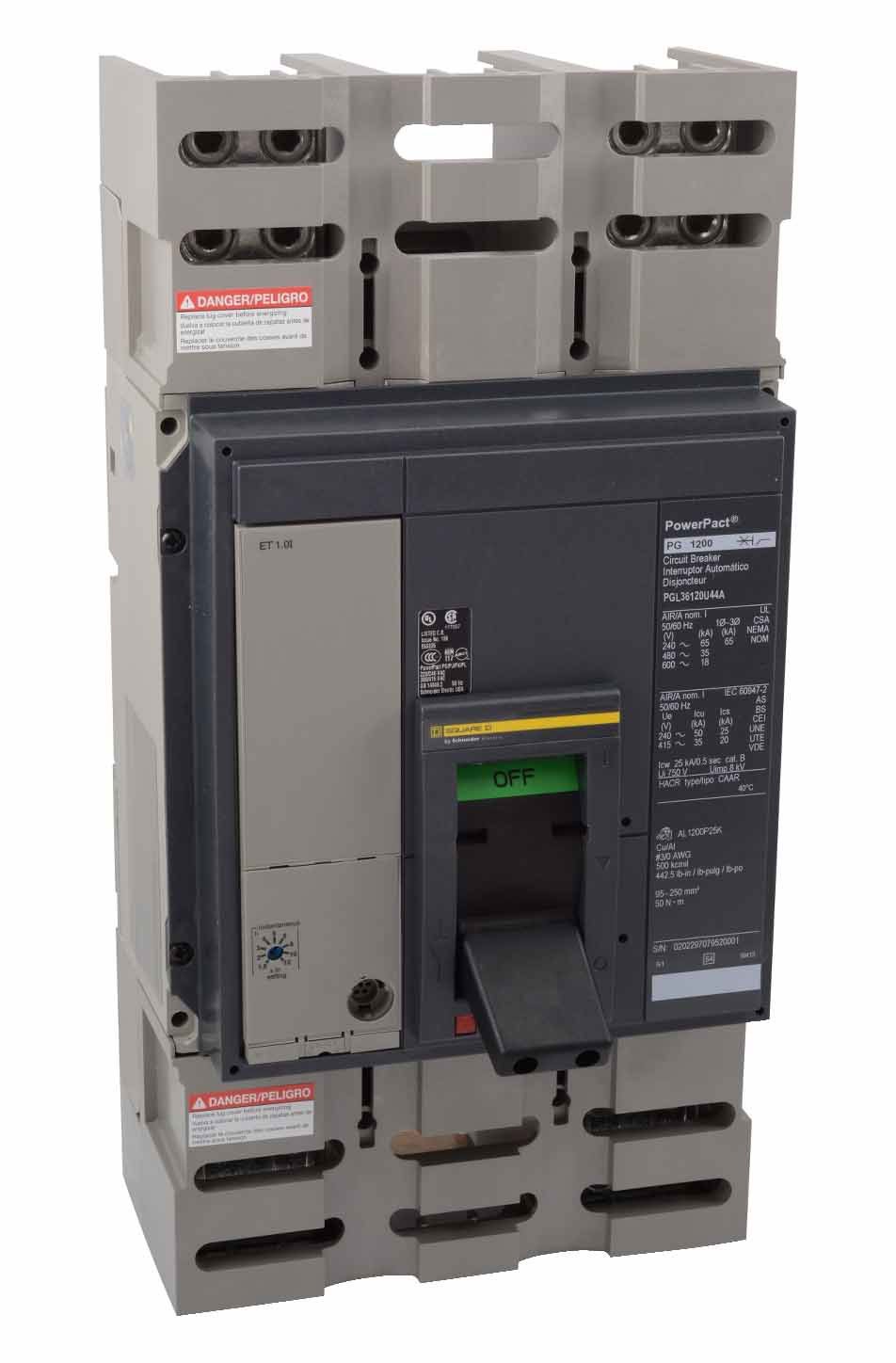

PGL36120U44A - Square D 1200 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513575616621,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PGL36120U44A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGL36120U44A - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":2149999,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901942603","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755434029165,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PGL36120U44A_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGL36120U44A - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":1752999,"weight":2722,"compare_at_price":2149999,"inventory_management":"shopify","barcode":"785901942603","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PGL36120U44A - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - PGL36120U44A - Square D Powerpact Circuit Breaker

Part Number:

PGL36120U44A
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

1200
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

PGL
Functions:

LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

12.86" x 0.32" x 8.27"
Weight:

32 lbs

Standards

Additional Details

Frame Type:

P-Frame
Trip Unit Technology:

Electronic, basic, ET 1.0I, I
Line Rated Current:

1200 Amp

Breaking Capacity Code:

G
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

4 x AWG 3/0...500 kcmil aluminium/copper

Product Description - PGL36120U44A - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type PGL, 3P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, complete with micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, solid state electronic

Documentation

Catalogue

Data Sheet

PGL36120U44A - Square D - Molded Case Circuit Breaker

Feed-Thru - 1200 Amp - 3 Pole - 600 Volt

PGL36120U44A - Square D - Molded Case Circuit Breaker

Feed-Thru - 1200 Amp - 3 Pole - 600 Volt
