Name: PJL36000S10 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: PJL36000S10
Price: 5999.99 CAD
Availability: InStock

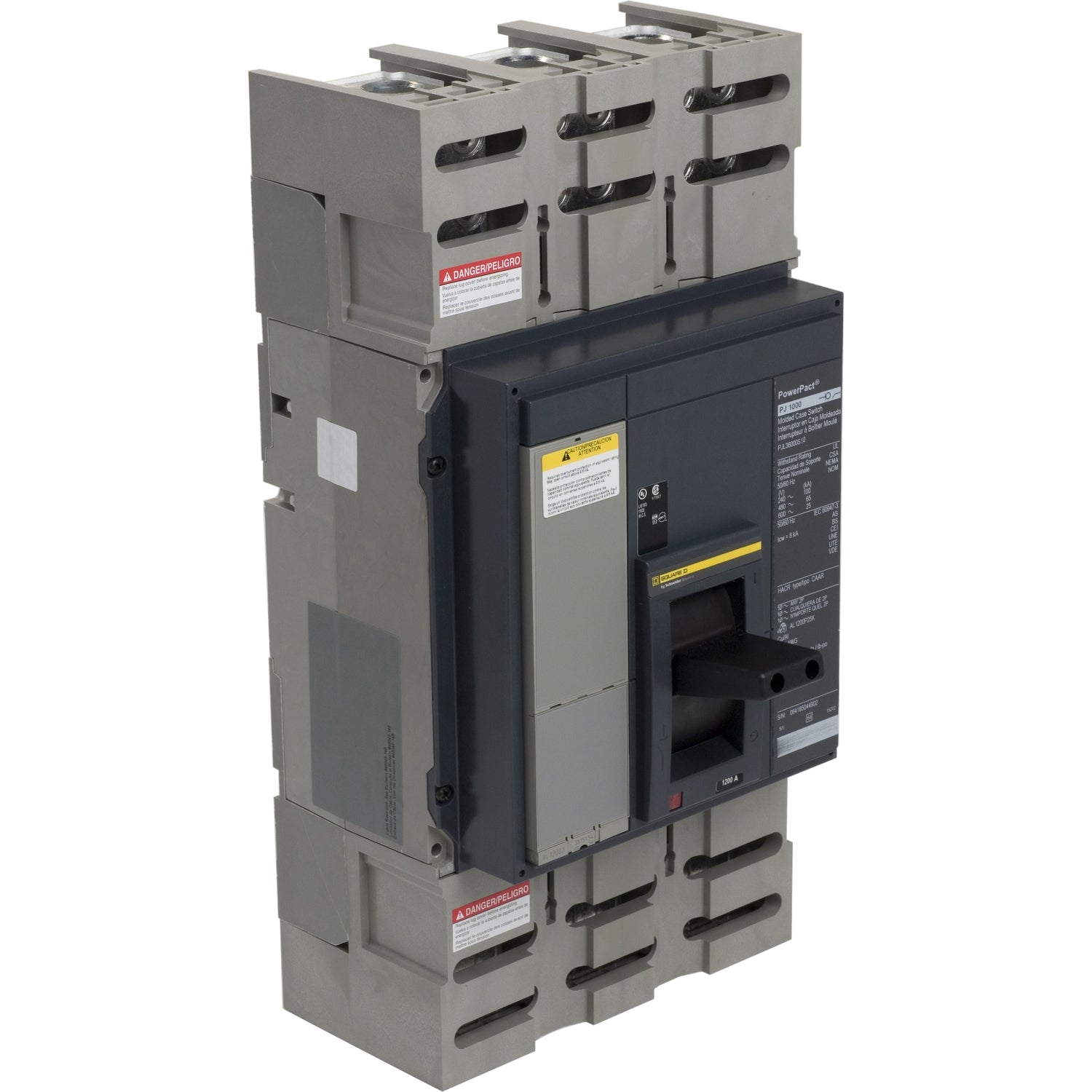

PJL36000S10 - Square D 1000 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 5200 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513541472365,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PJL36000S10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PJL36000S10 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":599999,"weight":14515,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901650614","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755436159085,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PJL36000S10_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PJL36000S10 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":519999,"weight":14515,"compare_at_price":599999,"inventory_management":"shopify","barcode":"785901650614","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PJL36000S10 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - PJL36000S10 - Square D Powerpact Circuit Breaker

Part Number:

PJL36000S10
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

1000
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed Thru
Type:

PJL
Functions:

NA - No Overcurrent Protection
Protection:

Non-Automatic
AIC Ratings:

65kA@480V

Dimensions

Dimensions (HxWxD):

16.16" x 8.27" x 8.05"

Standards

Product Description - PJL36000S10 - Square D Powerpact Circuit Breaker

Square D,Schneider Electric, Powerpact, type PJL, 3P, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, feed-thru, NA - No Overcurrent Protection, non-automatic switch, line & load side lug terminals.

Documentation

Catalogue

Data Sheet

PJL36000S10 - Square D - Molded Case Circuit Breaker

Feed-Thru - 1000 Amp - 3 Pole - 600 Volt

PJL36000S10 - Square D - Molded Case Circuit Breaker
