Name: Q4L3250 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: Q4L3250
Price: 2312.99 CAD
Availability: InStock

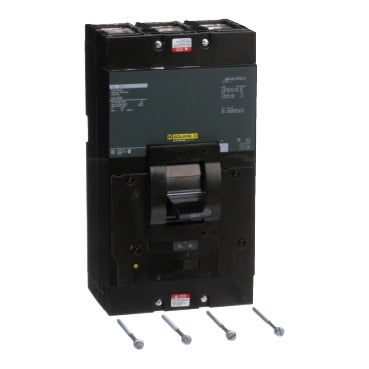

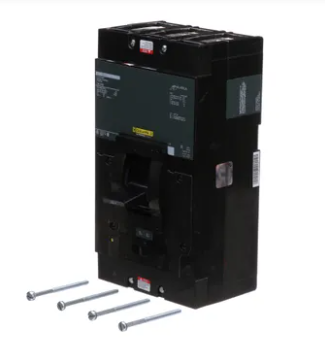

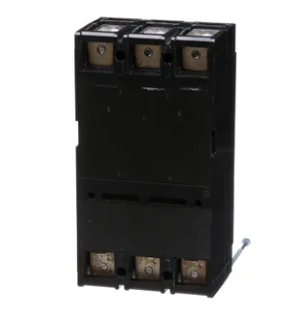

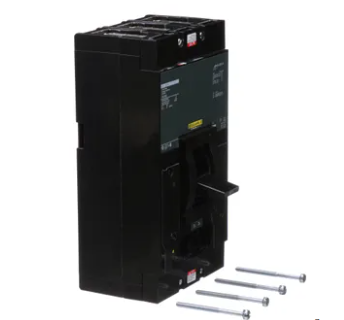

Q4L3250 - Square D 250 Amp 3 Pole 240 Volt Thermal Magnetic Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 1620 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513798570093,"title":"New","option1":"New","option2":null,"option3":null,"sku":"Q4L3250","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Q4L3250 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":231299,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901649250","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575224963181,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"Q4L3250_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Q4L3250 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":161999,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901649250","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - Q4L3250 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - Q4L3250 - Square D Molded Case Circuit Breakers

Part Number:

Q4L3250
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

240
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

Q4L
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

25kA@240V

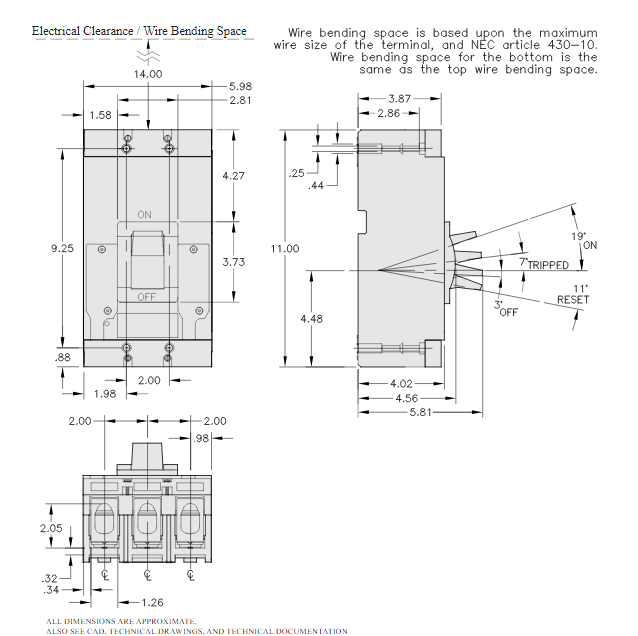

Dimensions

Dimensions (HxWxD):

11.0" x 6.0" x 5.84"

Additional Details

Trip Unit Technology:

Electronic, basic, ET 1.0I, I
Line Rated Current:

250 Amp
Mounting Mode:

Unit Mount

Breaking Capacity Code:

Q4
Electrical Connection:

Lugs line / Lugs load

Standards

Product Description - Q4L3250 - Square D Molded Case Circuit Breakers

Square D, Q4L Series, type Q4L, 3P, 3PH, 250A, 240V, 25kA@240V, standard interrupting capacity, 40 degree C, feed-thru, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Q4L3250 - Square D - Molded Case Circuit Breaker

Feed-Thru - 250 Amp - 3 Pole - 240 Volt
