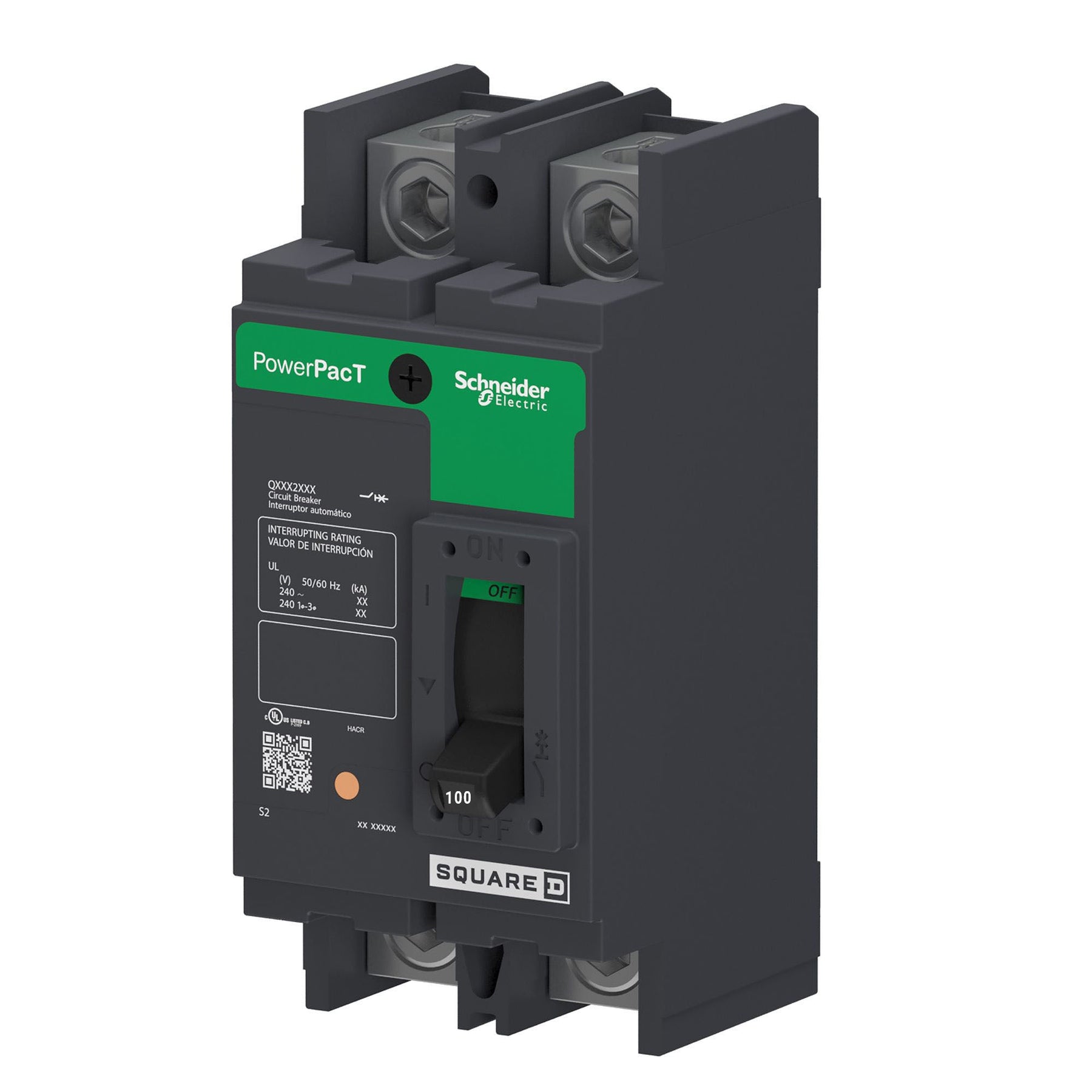

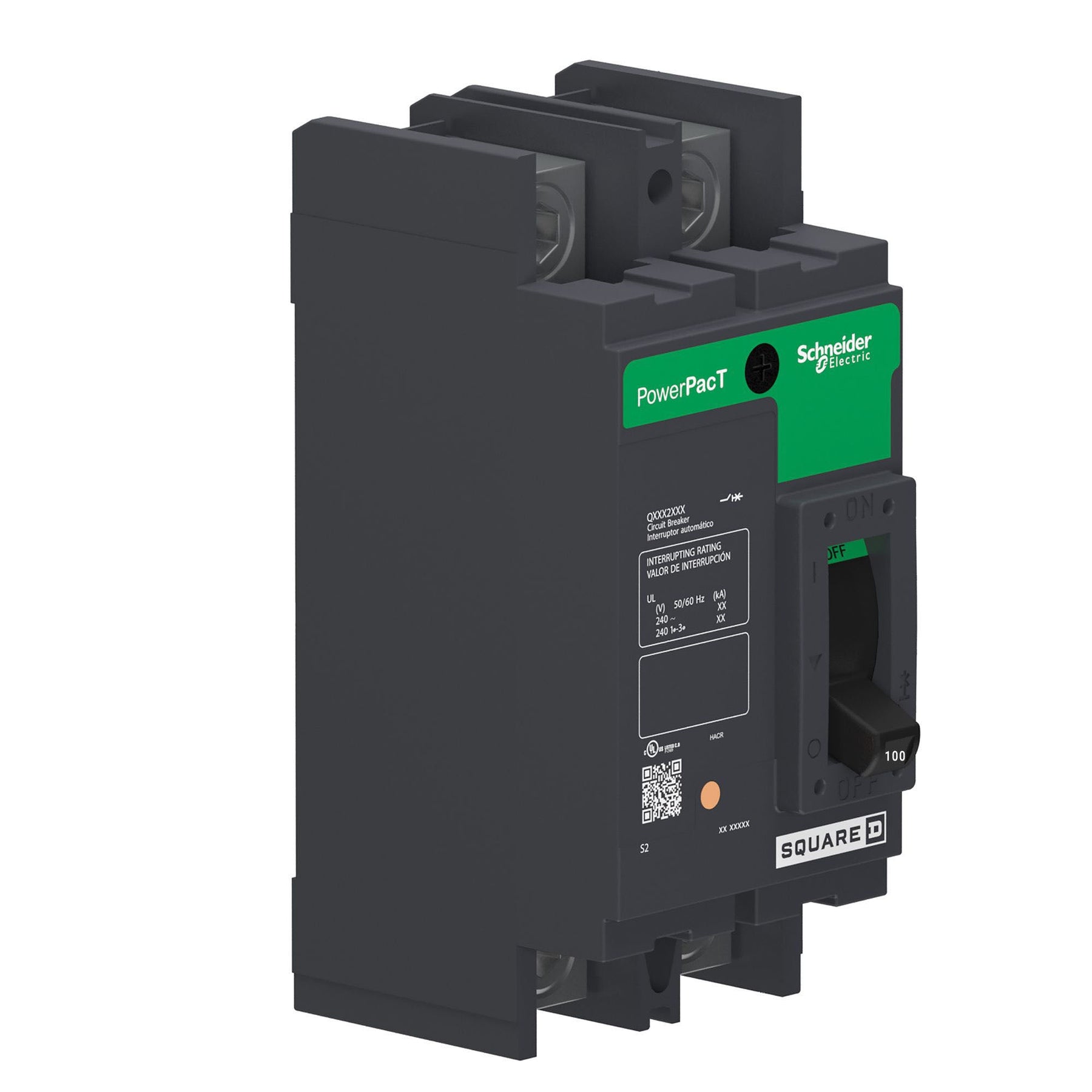

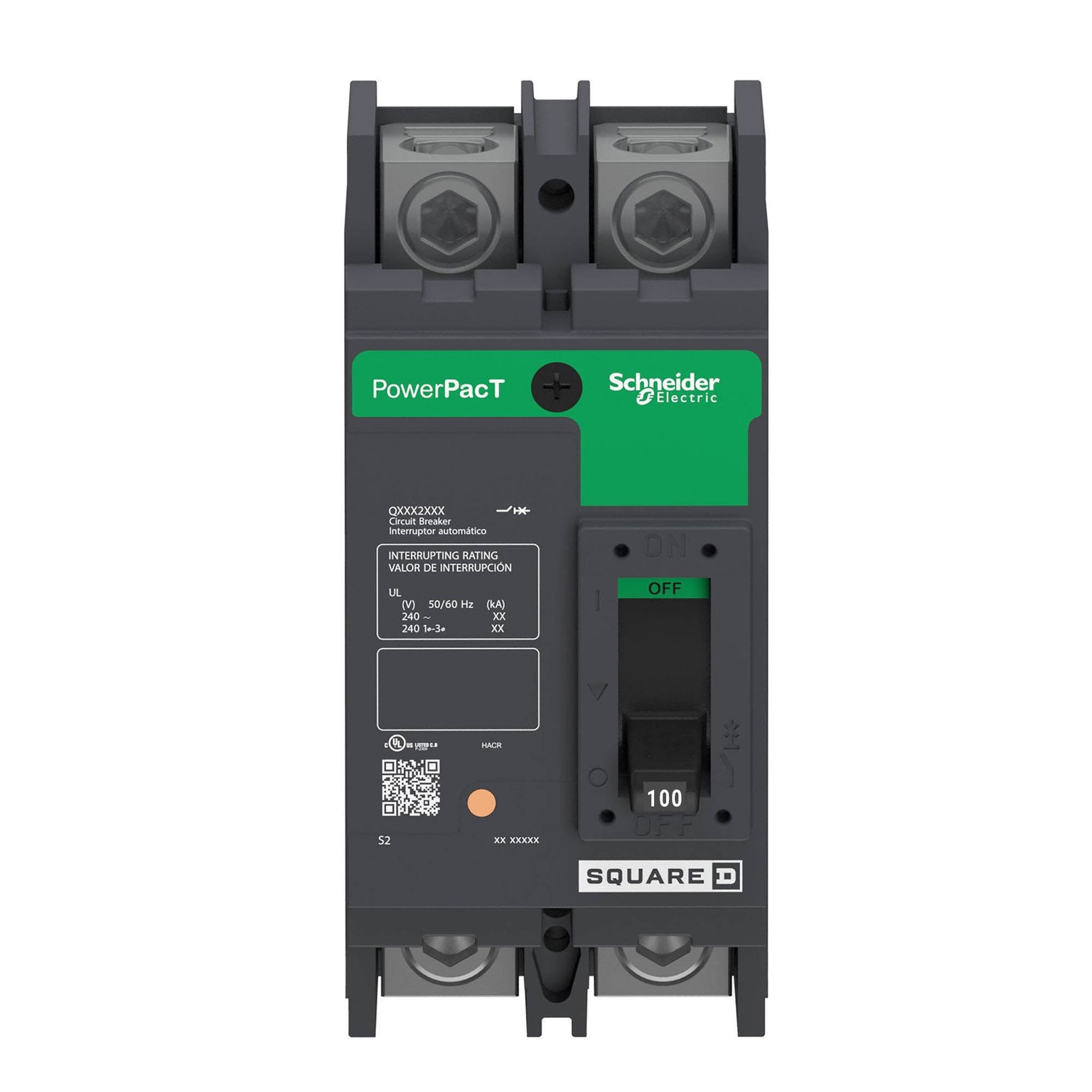

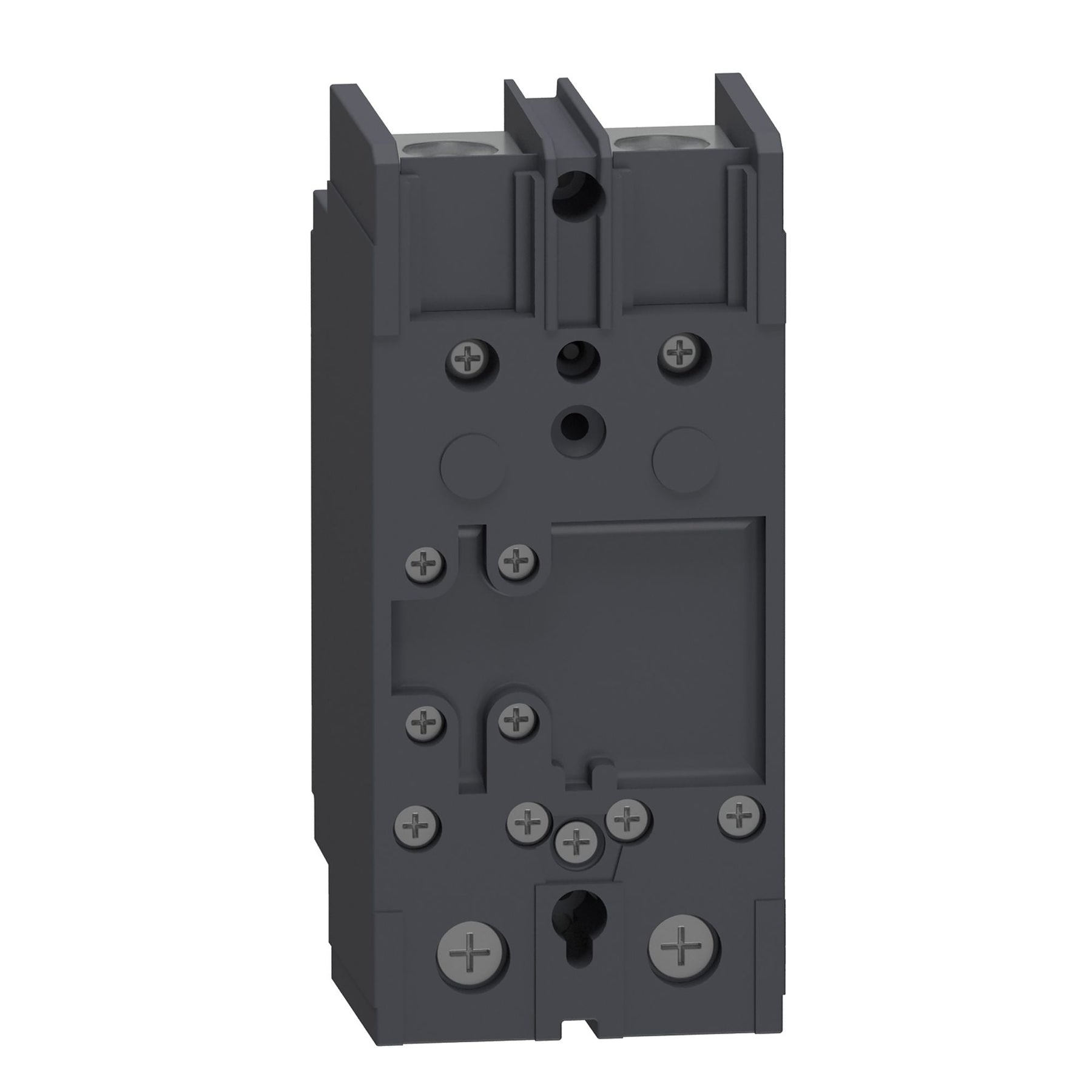

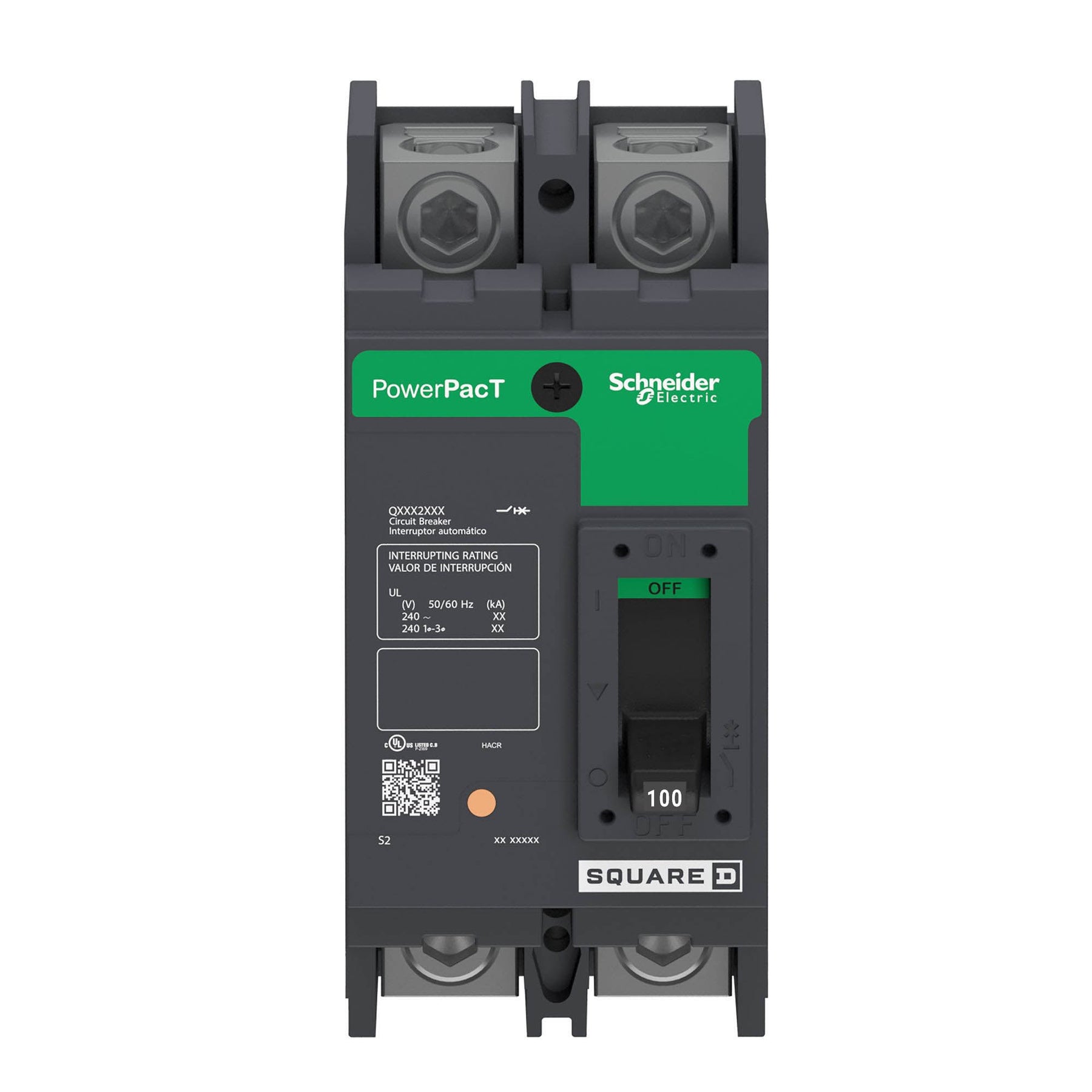

QBL22100 - Square D - Molded Case Circuit Breaker

Feed-Thru - 100 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: QBL22100
QBL22100 - Square D 100 Amp 2 Pole 240 Volt Thermal Magnetic Molded Case Circuit Breaker
QBL22100 - Square D - Molded Case Circuit Breaker
QBL22100 - Square D - Molded Case Circuit Breaker
QBL22100 - Square D - Molded Case Circuit Breaker
QBL22100 - Square D 100 Amp 2 Pole 240 Volt Thermal Magnetic Molded Case Circuit Breaker

Images are for reference only

QBL22100 - Square D - Molded Case Circuit Breaker

Feed-Thru - 100 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: QBL22100
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - QBL22100 - Square D - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - QBL22100 - Square D Molded Case Circuit Breakers

  • Part Number:

    QBL22100

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    2

  • Amp

    100

  • Volt:

    240

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    QBL

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47" x 3" x 3.93"

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    100 Amp

  • Magnetic Hold Current:

    1200 A

  • Mounting Mode:

    Unit Mount Lug

  • Breaking Capacity Code:

    B

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating Handle

Standards

CSA Approved logo

Product Description - QBL22100 - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type QBL, 2P, 1PH, 100A, 240V, 10kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
