Name: QGA32090 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: QGA32090
Price: 4194.99 CAD
Availability: InStock

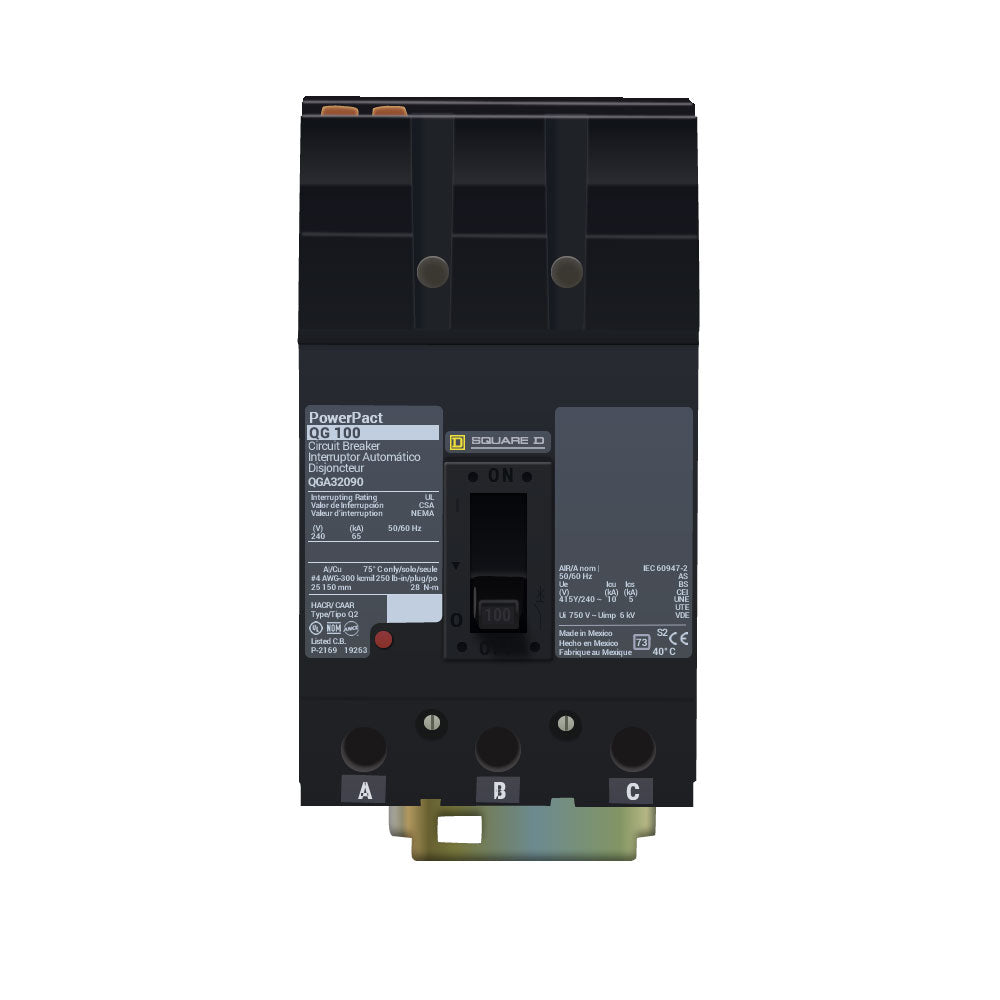

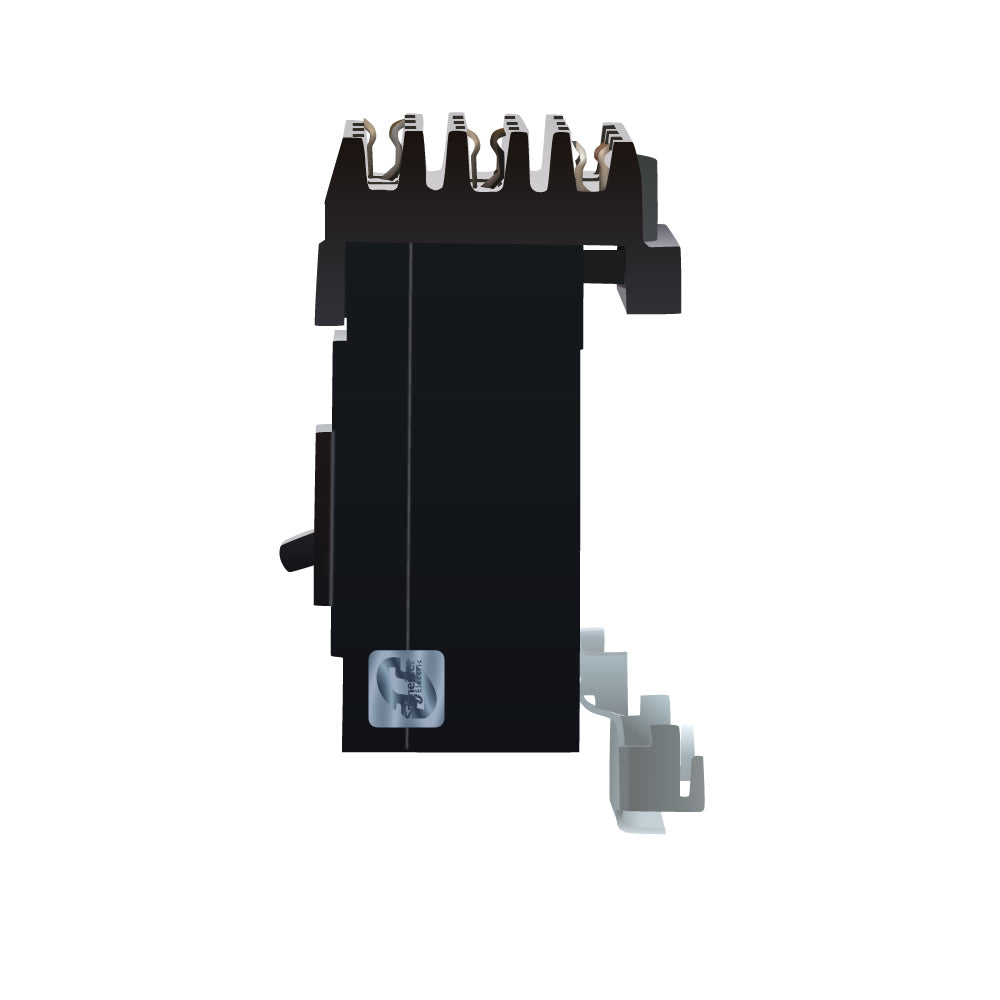

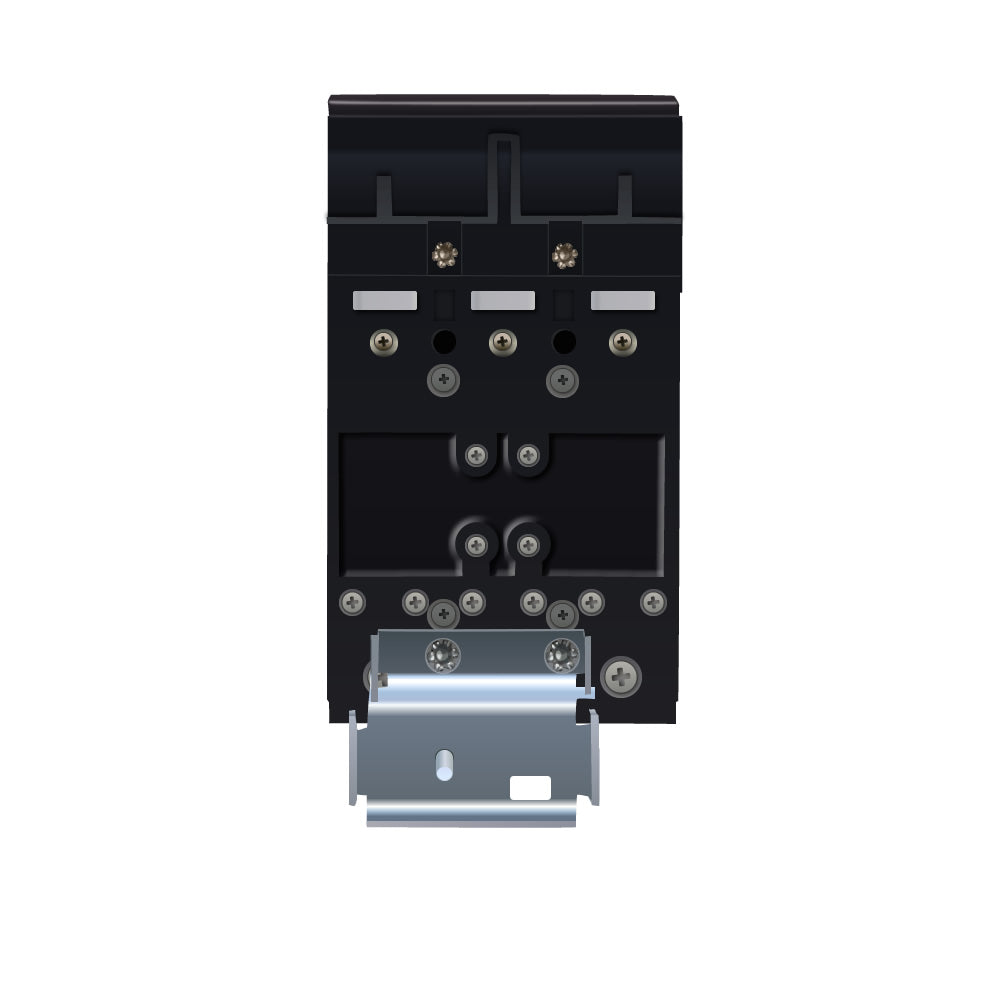

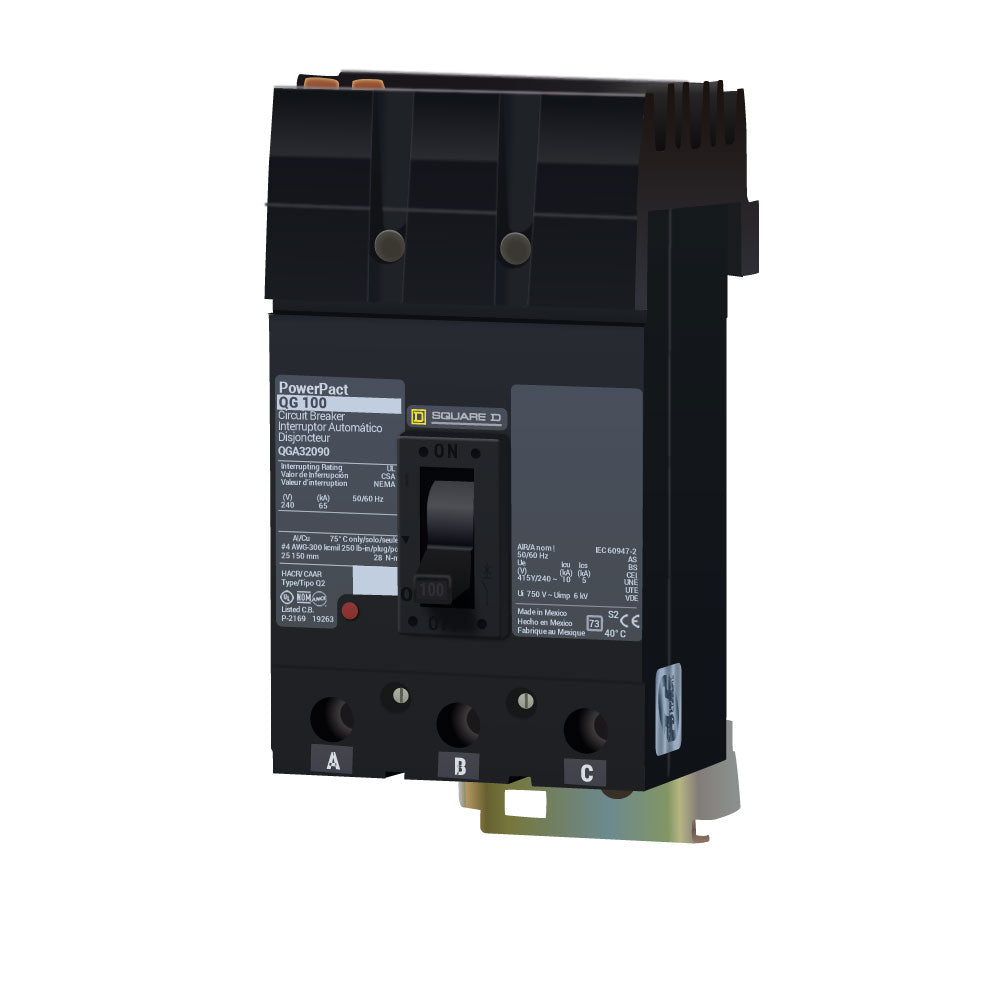

QGA32090 - Square D - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 2937 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40955044692077,"title":"New","option1":"New","option2":null,"option3":null,"sku":"QGA32090","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QGA32090 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":419499,"weight":3597,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901456124","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575182725229,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"QGA32090_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QGA32090 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":293699,"weight":3597,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901456124","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - QGA32090 - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - QGA32090 Schneider Electric Molded Case Circuit Breaker

Part Number:

QGA32090
Manufacturer:

Schneider Electric
Family:

I-Line
Pole:

3
Amp

90
Volt:

240
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

I-Line Style Plug-In
Type:

QGA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@240V

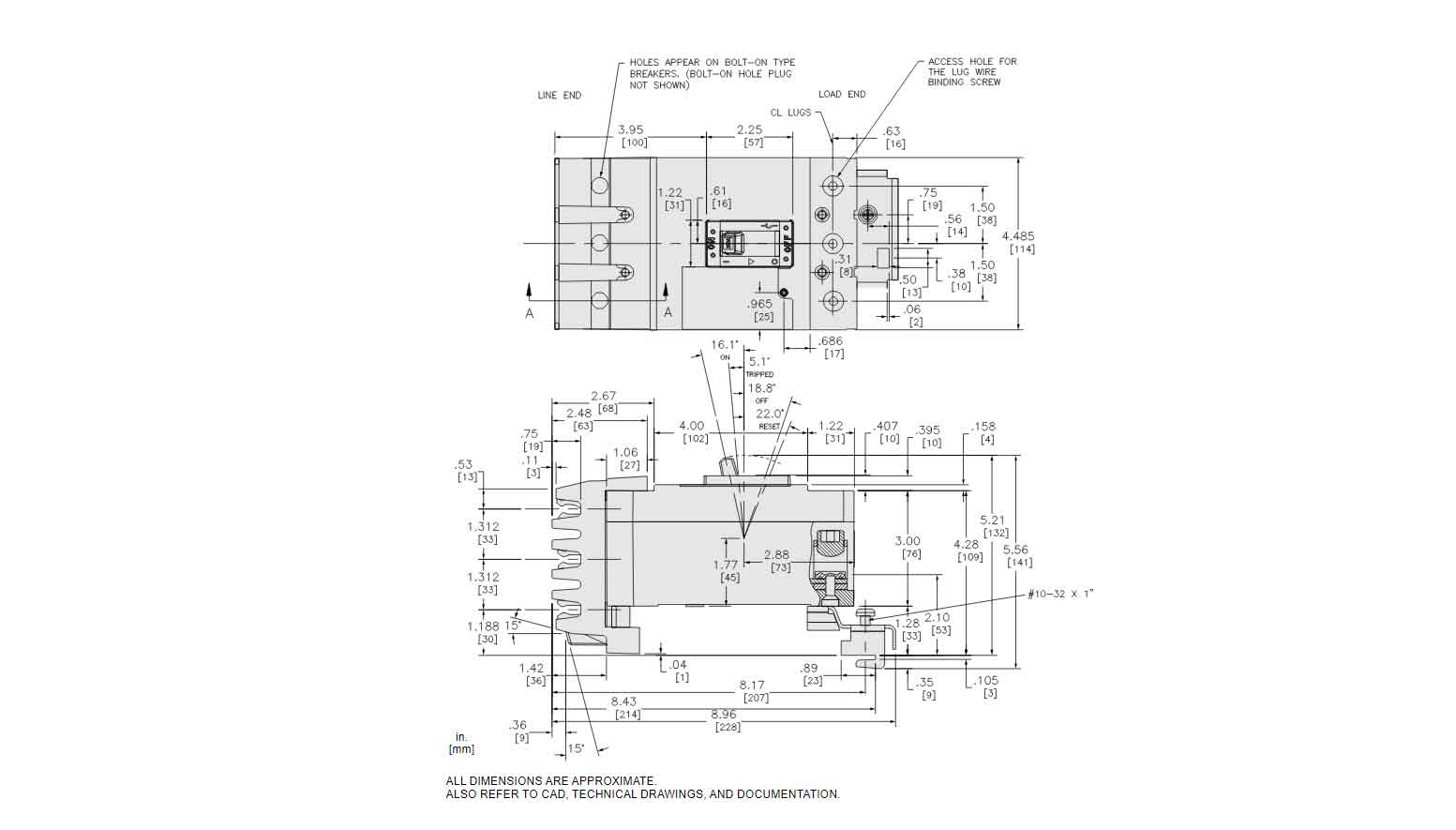

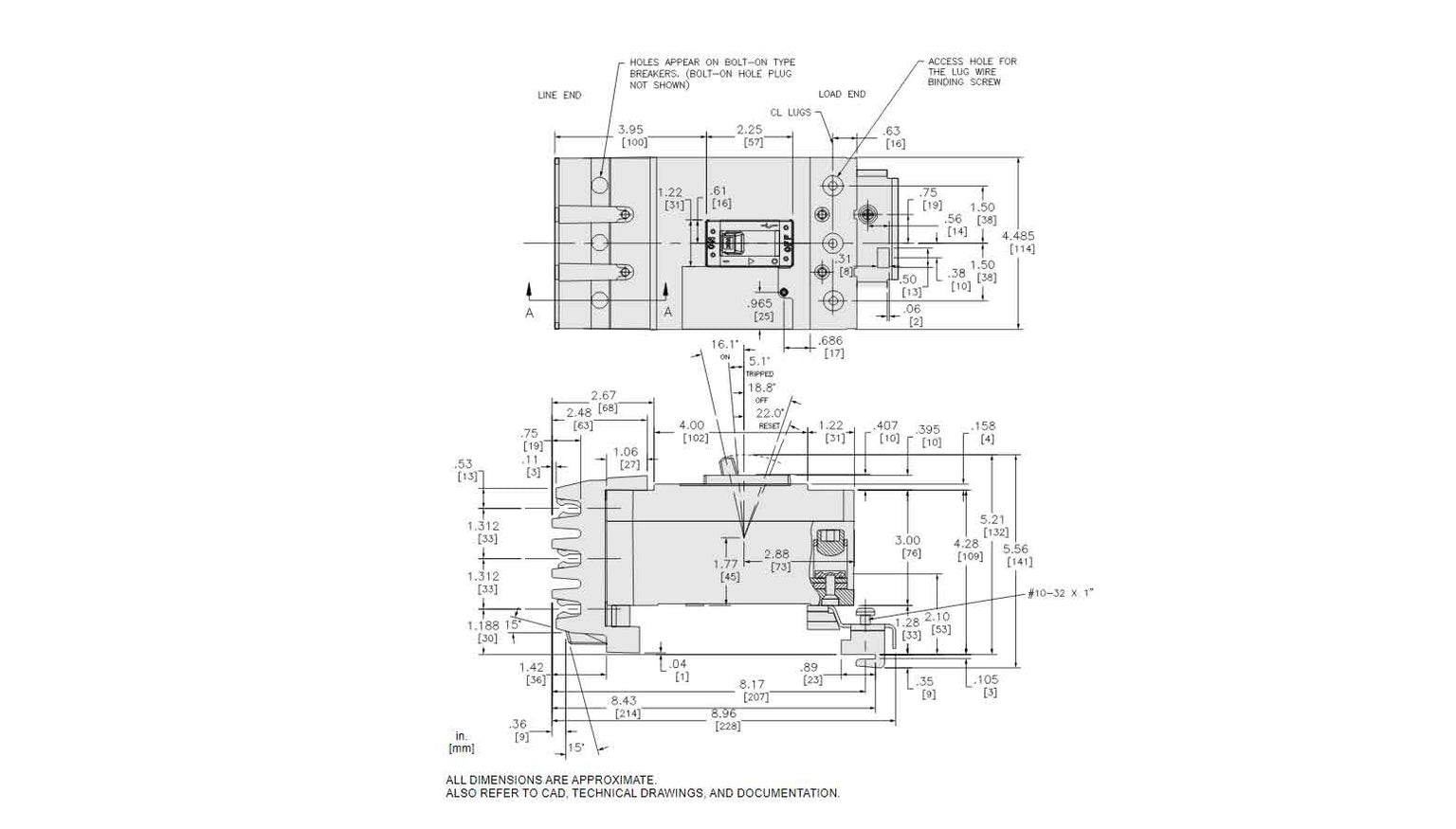

Dimensions

Dimensions (HxWxD):

3.93 x 4.5 x 6.47
Weight:

7.93 lb

Standards

Product Description - QGA32090 Schneider Electric Molded Case Circuit Breaker

QGA32090, Square D, I-Line, type QGA, 3P, ABC phase connection, 3PH, 90A, 240V, 65kA@240V, UL listed, high interrupting capacity, I-Line Style Plug-In, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

QGA32090 - Square D - Molded Case Circuit Breaker

I-Line Style Plug-In - 90 Amp - 3 Pole - 240 V
