Name: BGA160303 - Square D - Molded Case Circuit Breakers
Brand: Schneider Electric
SKU: BGA160303
Price: 628.99 CAD
Availability: InStock

BGA160303 - Square D - Molded Case Circuit Breakers

Images are for reference only

Low stock
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 441 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40986125467757,"title":"New","option1":"New","option2":null,"option3":null,"sku":"BGA160303","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BGA160303 - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":62899,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901015642","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575181840493,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"BGA160303_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BGA160303 - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":44099,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901015642","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - BGA160303 - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - BGA160303 - Schneider Electric Molded Case Circuit Breakers

Part Number:

BGA160303
Manufacturer:

Schneider Square D Breakers
Family:

Powerpact
Pole:

1
Amp

30
Volt:

600
Phase:

1

Category:

Molded Case Breakers / 1-Pole
Connection:

I-Line Style Plug-In
Type:

B Frame
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@240V

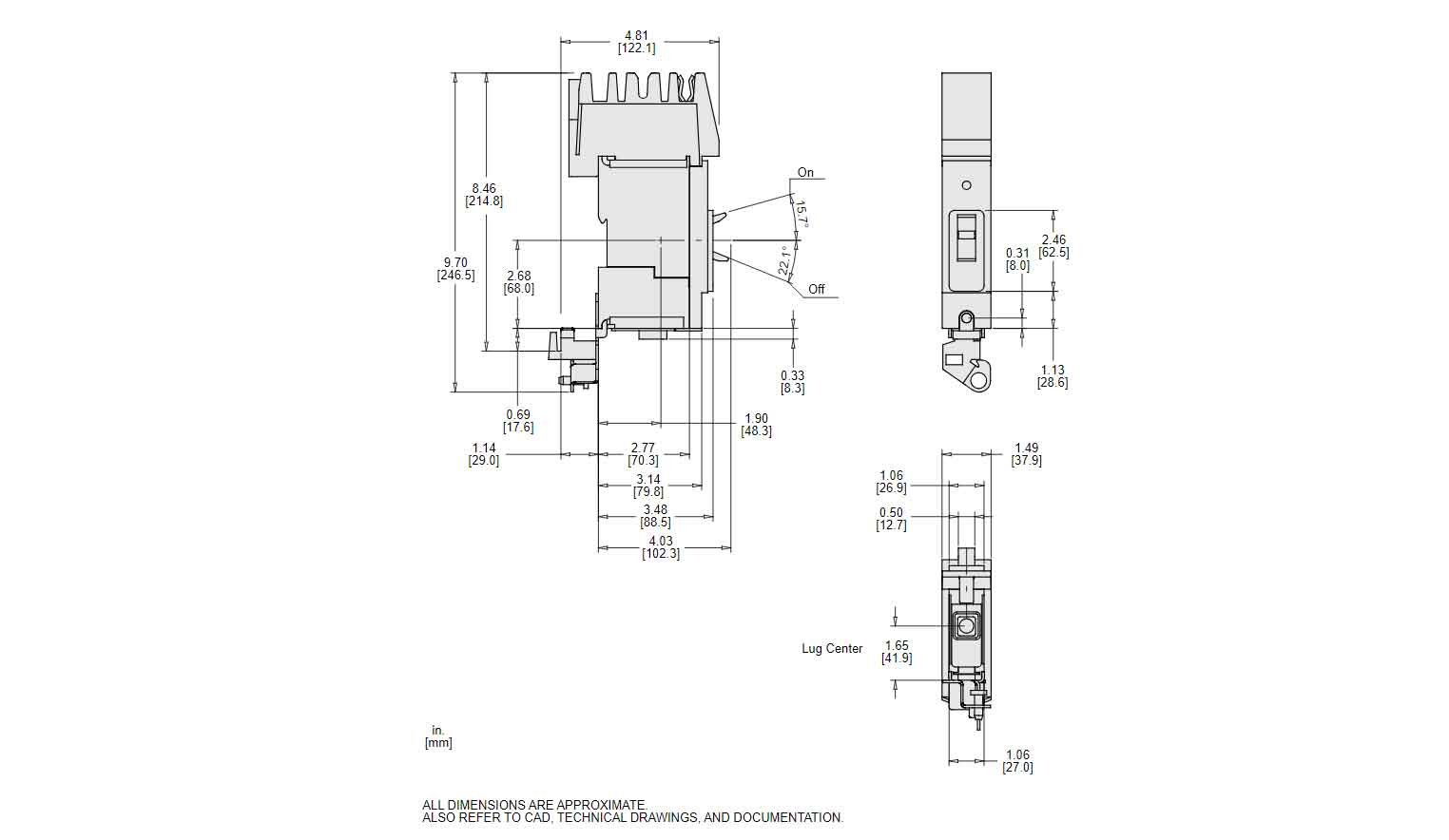

Dimensions

Weight:

1.41 lb

Standards

Product Description - BGA160303 - Schneider Electric Molded Case Circuit Breakers

Schneider Electric presents the BGA160303, a Powerpact Type BGA circuit breaker designed for single-phase applications at 600Y/347Vac. With a 30A capacity, this I-Line Style Plug-In breaker features a B phase connection, non-interchangeable trip, Long-Time and Instantaneous trip functions, and load side mechanical lug terminals. It operates on Thermal Magnetic principles and boasts a molded case construction with a robust 65kA@240V interrupting capacity.

BGA160303 - Square D - Molded Case Circuit Breakers

I-Line Style Plug-In - 30 Amp - 1 Pole - 600 V
