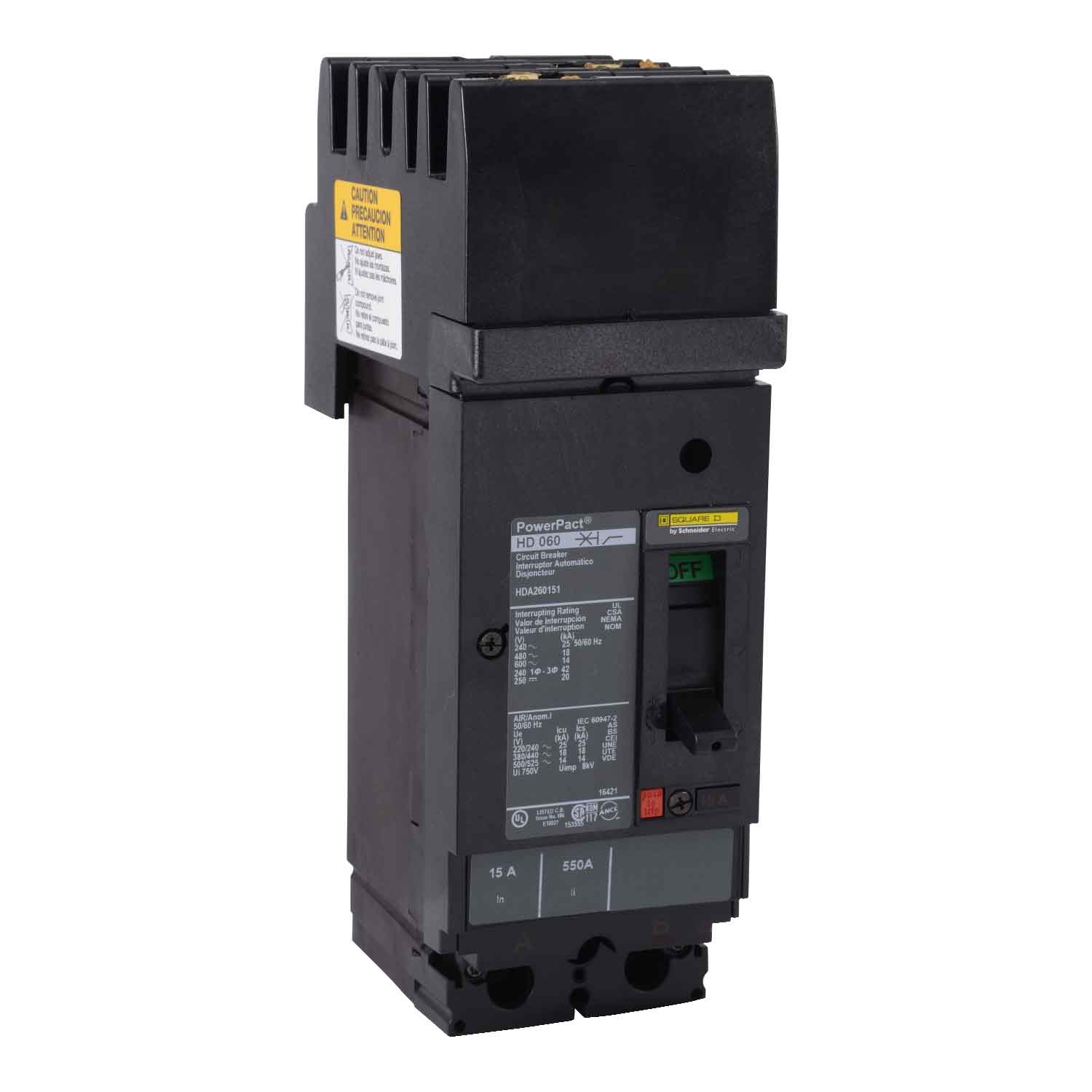

Name: HDA260804 - Square D - Molded Case Circuit Breakers
Brand: Schneider Electric
SKU: HDA260804
Price: 1449.99 CAD
Availability: InStock

HDA260804 - Square D - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 1015 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40986146635885,"title":"New","option1":"New","option2":null,"option3":null,"sku":"HDA260804","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HDA260804 - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":144999,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901416425","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575175680109,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"HDA260804_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HDA260804 - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":101499,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"785901416425","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - HDA260804 - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - HDA260804 - Schneider Electric Molded Case Circuit Breakers

Part Number:

HDA260804
Manufacturer:

Schneider Square D Breakers
Family:

Powerpact
Pole:

2
Amp

80
Volt:

600
Phase:

1

Category:

Molded Case Breakers / 2-Pole
Connection:

I-Line Style Plug-In
Type:

H Frame
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

3.39 x 4.09 x 6.42
Weight:

4.85 lb

Standards

Product Description - HDA260804 - Schneider Electric Molded Case Circuit Breakers

In the Powerpact series, Square-D introduces a 1-phase (1PH) molded case circuit breaker configured for B & C phase connection. This 2-pole (2P) breaker boasts an 80A rating at 600V, with a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, it ensures reliable electrical protection. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, this Thermal Magnetic molded case circuit breaker is designed for safety and efficiency.

HDA260804 - Square D - Molded Case Circuit Breakers

I-Line Style Plug-In - 80 Amp - 2 Pole - 600 V
