Product Warranty - LJA36600U44X - Square D - Molded Case Circuit Breakers
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.
Overview
Product Specifications - LJA36600U44X - Square D Molded Case Circuit Breakers
-
Part Number:
LJA36600U44X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LJA -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-

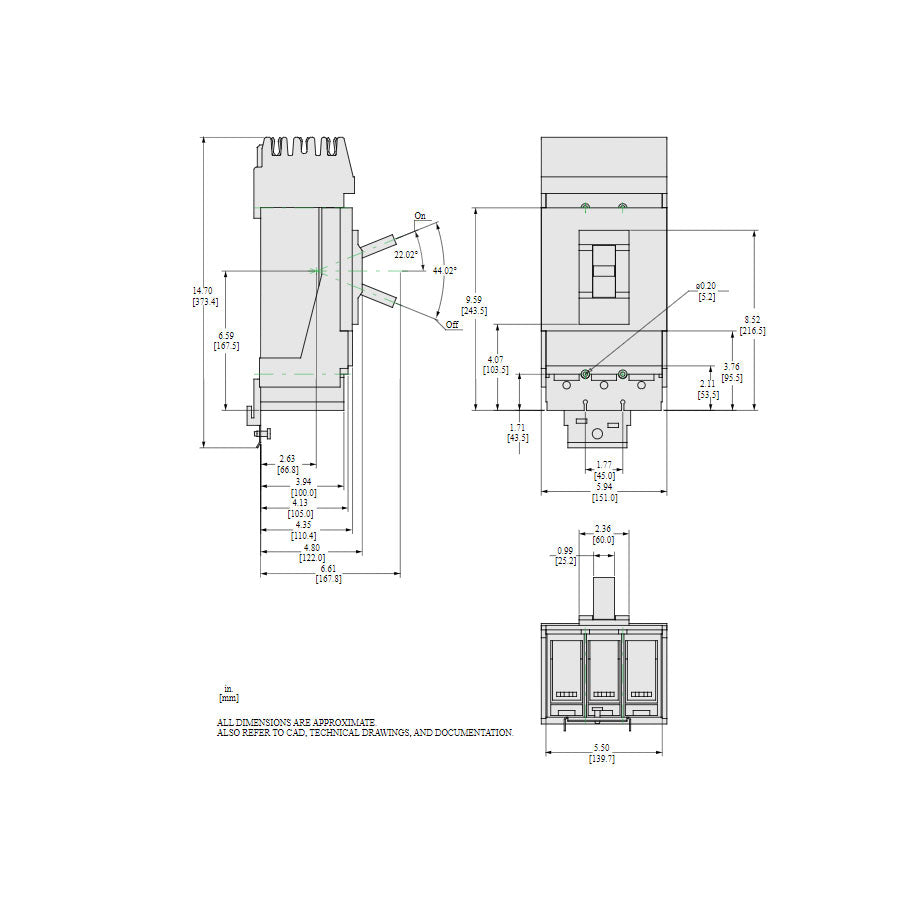

Dimensions (HxWxD):
13.39" x 5.51" x 4.33"
-
Weight:
13.67 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, ammeter, MicroLogic 6.3 A, LSIG -
Line Rated Current:
600 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Product Description - LJA36600U44X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, 3P, 3PH, 600A, 600V, 65kA@480V, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic ammeter 6.3A trip, solid state electronic, Molded Case Circuit Breaker
