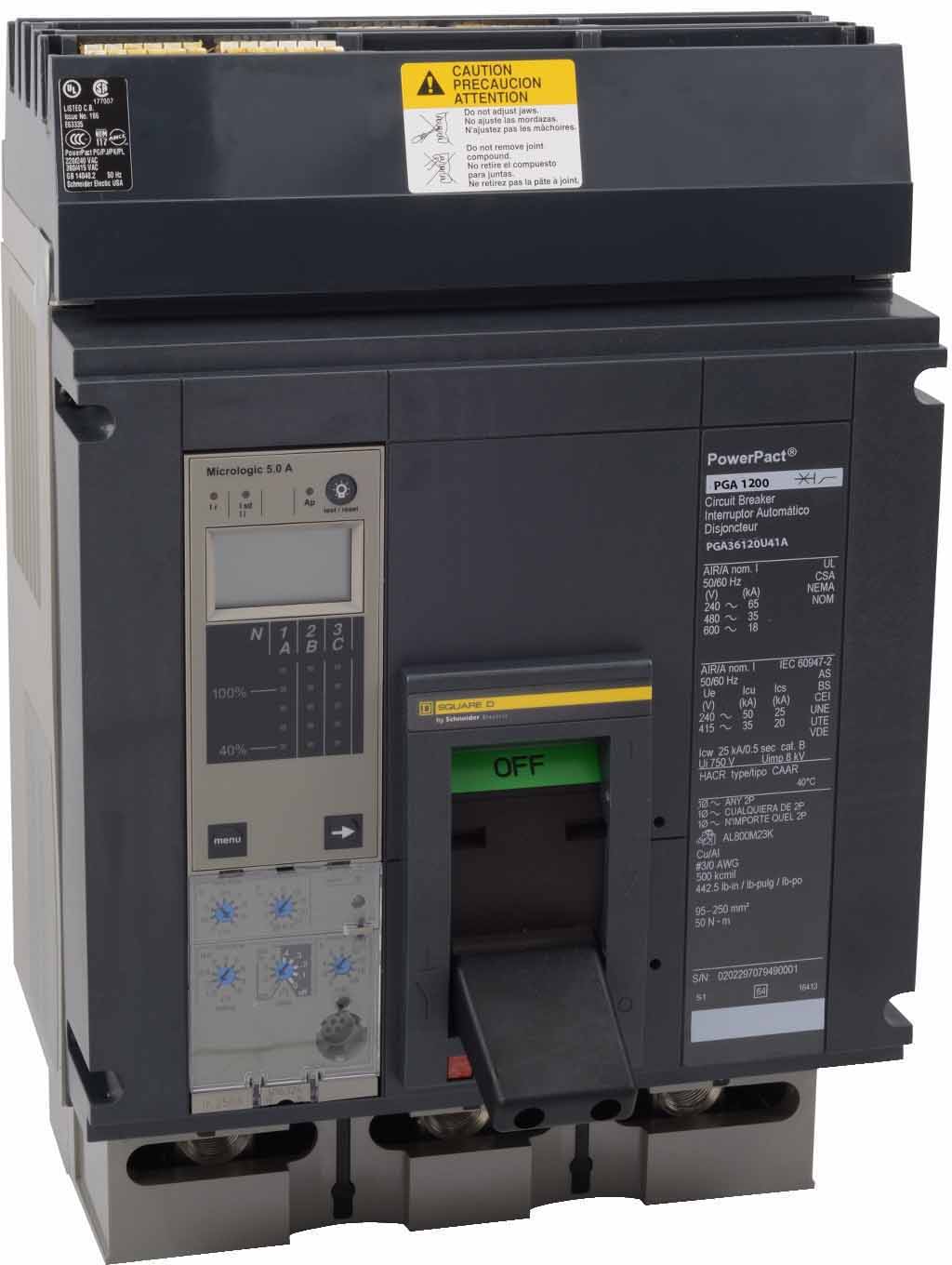

PGA36120U41A - Square D 1200 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

Condition

New

Reconditioned

Quantity

Earn 11760 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513555071085,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PGA36120U41A","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"PGA36120U41A - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":1882499,"weight":14515,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40755432521837,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PGA36120U41A_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"PGA36120U41A - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":1175999,"weight":14515,"compare_at_price":1416599,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PGA36120U41A - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - PGA36120U41A - Square D Molded Case Circuit Breakers

Part Number:

PGA36120U41A
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

1200
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

PGA
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

16.16" x 8.27" x 8.05"

Weight:

32 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, ammeter, MicroLogic 3.0 A, LI
Line Rated Current:

1200 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code

G
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

4 x AWG 3/0...500 kcmil aluminium/copper

Product Description - PGA36120U41A - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, 3P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, Molded Case Circuit Breaker

PGA36120U41A - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 1200 Amp - 3 Pole - 600 Volt
