Product Warranty - 2510MCW3 - Square D - Starter
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.
Overview
Product Specifications - 2510MCW3 - Schneider Electric Manual Starter
-
Part Number:
2510MCW3 -
Manufacturer:
-
Family:
Class 2510 -
Pole:
3 -
Amp
27 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
M
Dimensions
-
Weight:
7.94 lb
Standards
Product Description - 2510MCW3 - Schneider Electric Manual Starter

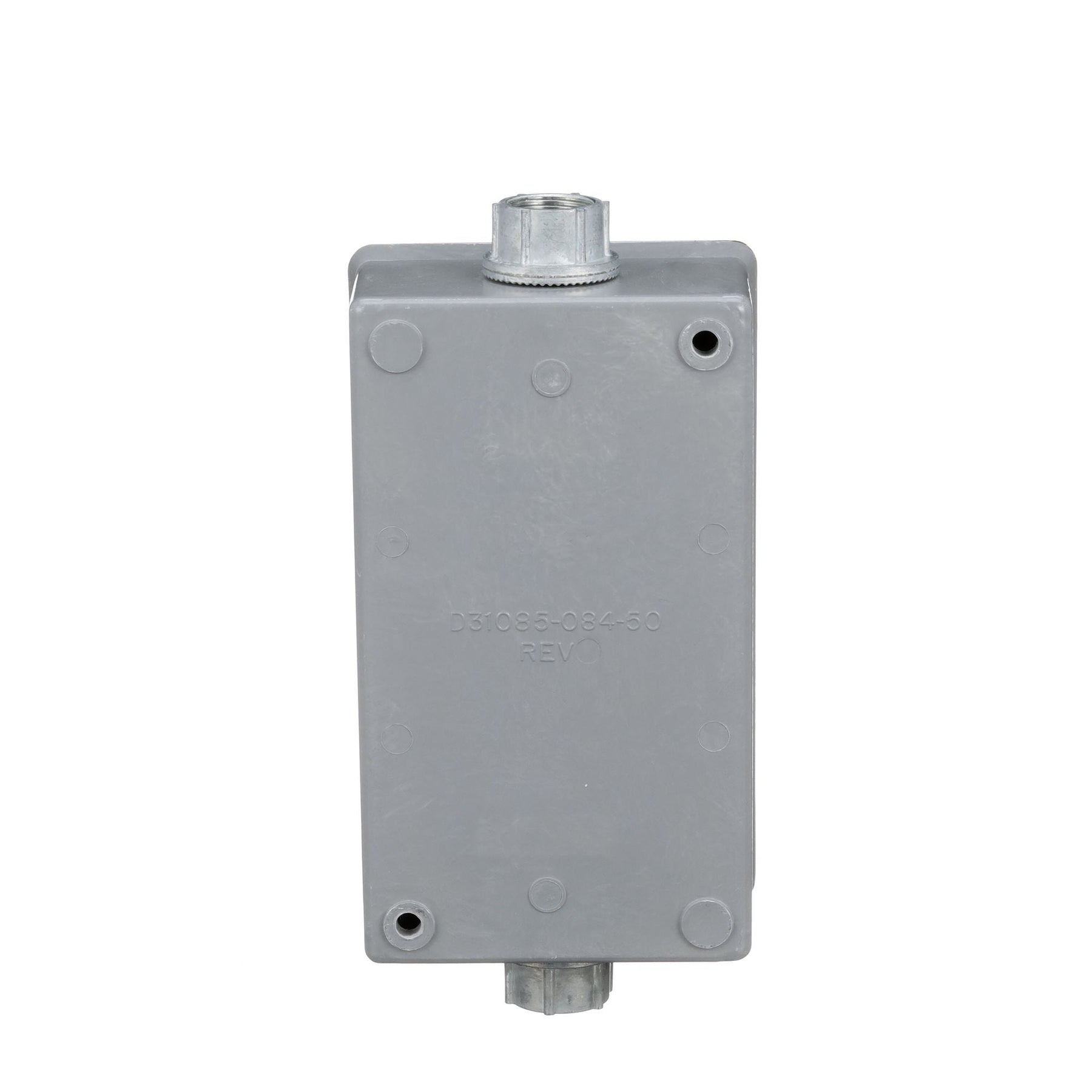

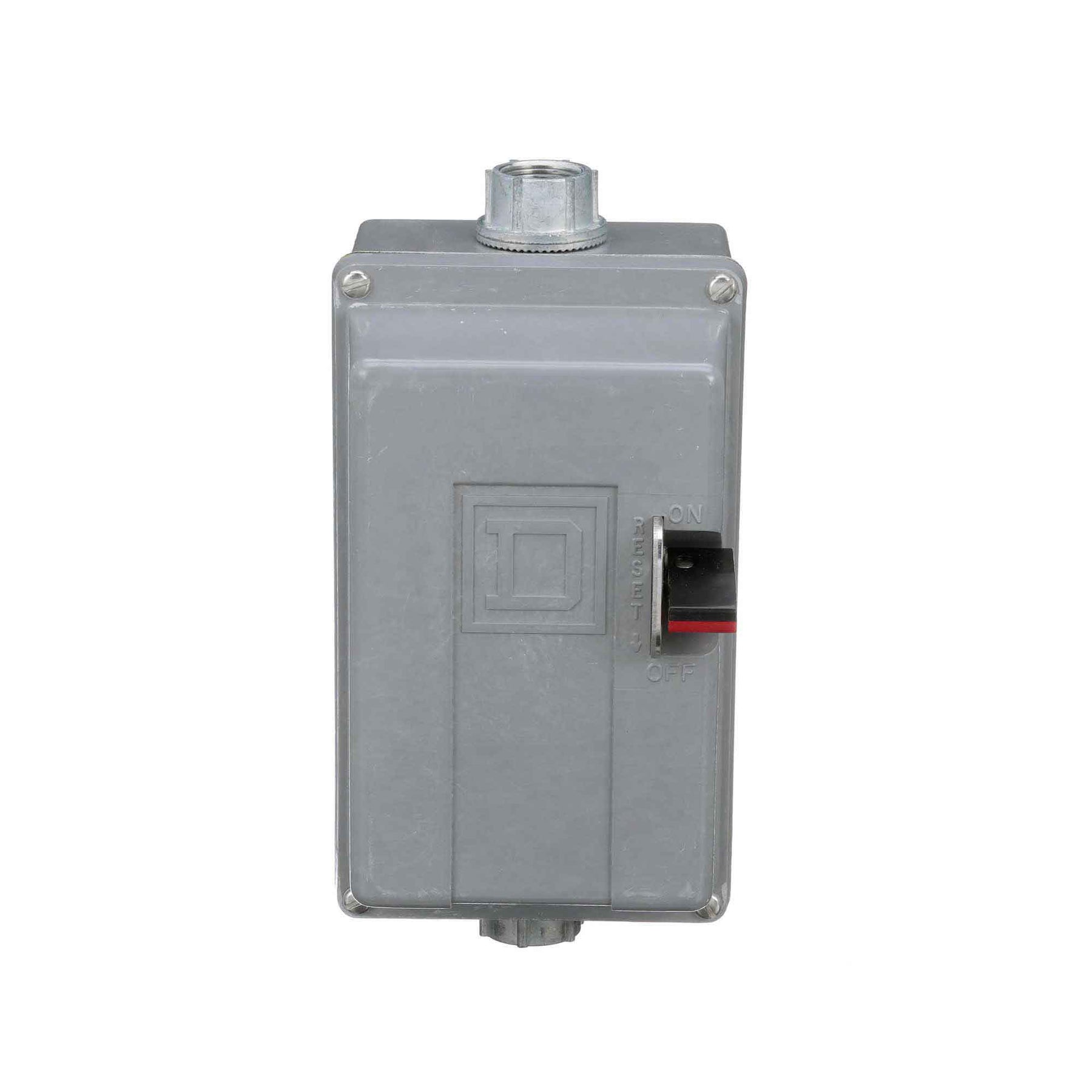

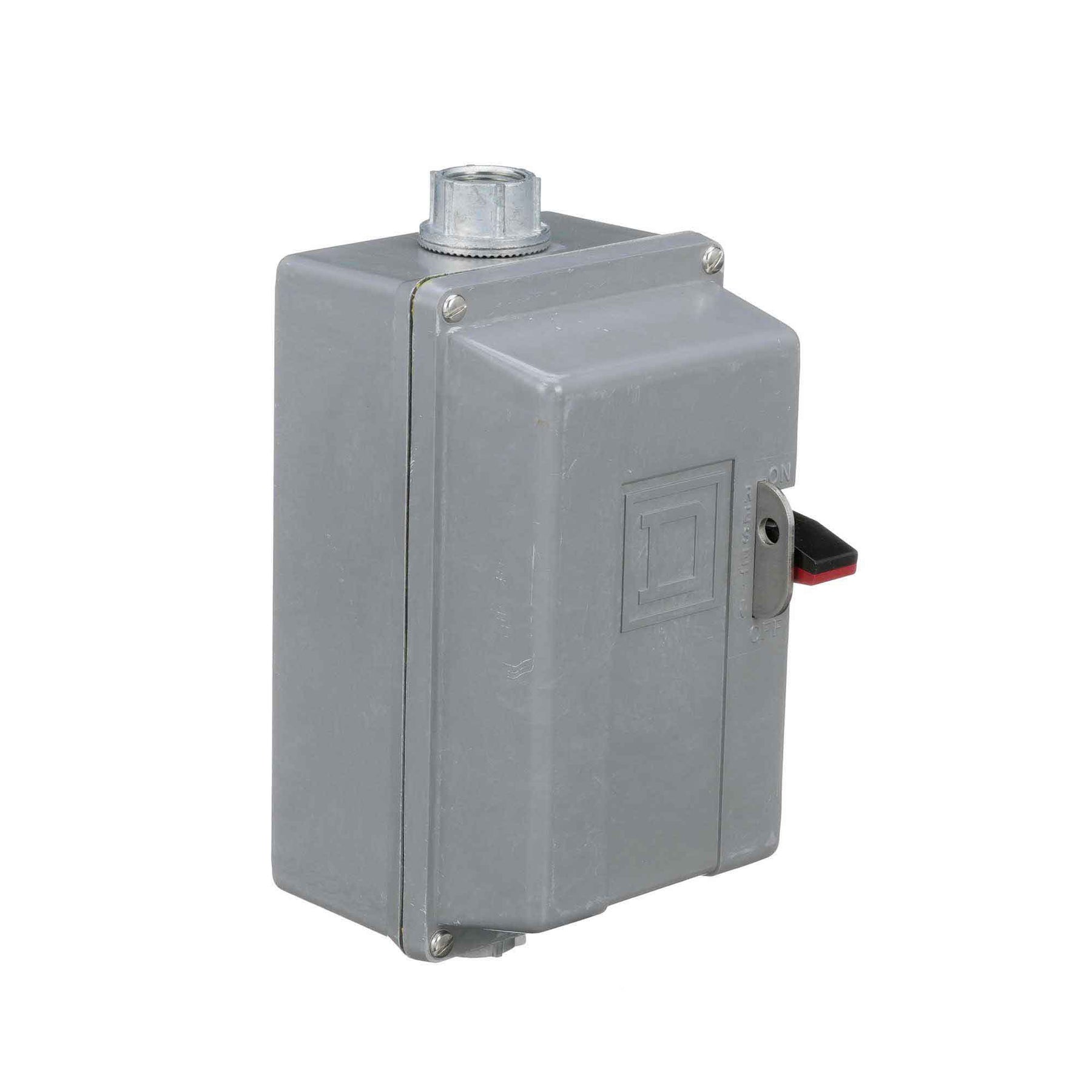

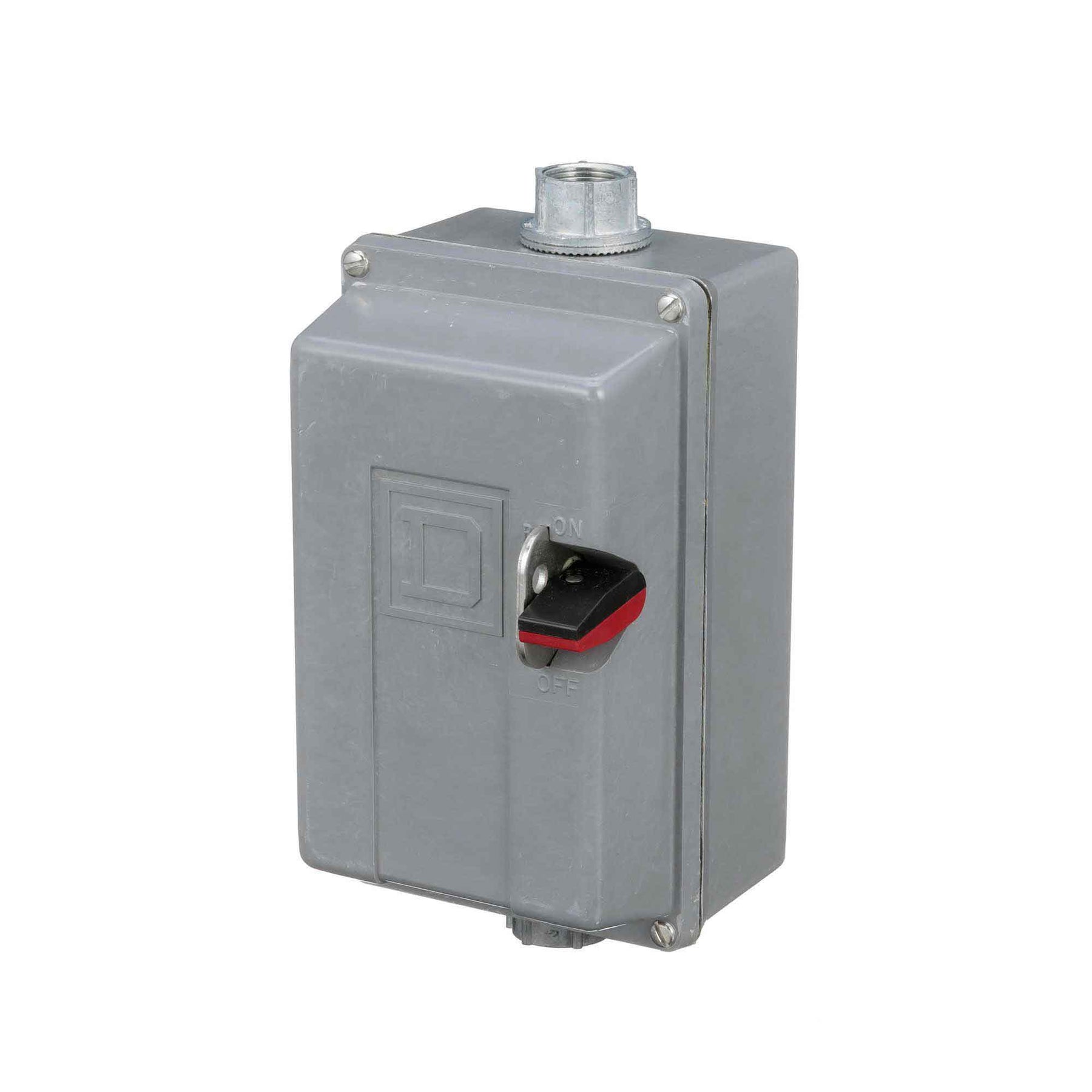

2510M manual motor starters are designed for manual On Off control for small motors. This three pole starter is rated for 7.5 HP at 230 VAC and 10 HP at 460 VAC three phase motors. This starter is NEMA M-1 rated. The proper thermal unit must be selected and ordered separately to provide proper overload protection for the motor. 2510M manual starters can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 4 and 4X glass polyester enclosure. 2510M manual starters are UL listed and CSA certified. This starter has no pilot light indicator. A NEMA 4/4X watertight, dusttight and corrosion resistant glass polyester enclosure is used to protect this integral horsepower manual starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 12.13 inches tall, 6.50 inches wide and 6.41 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.
